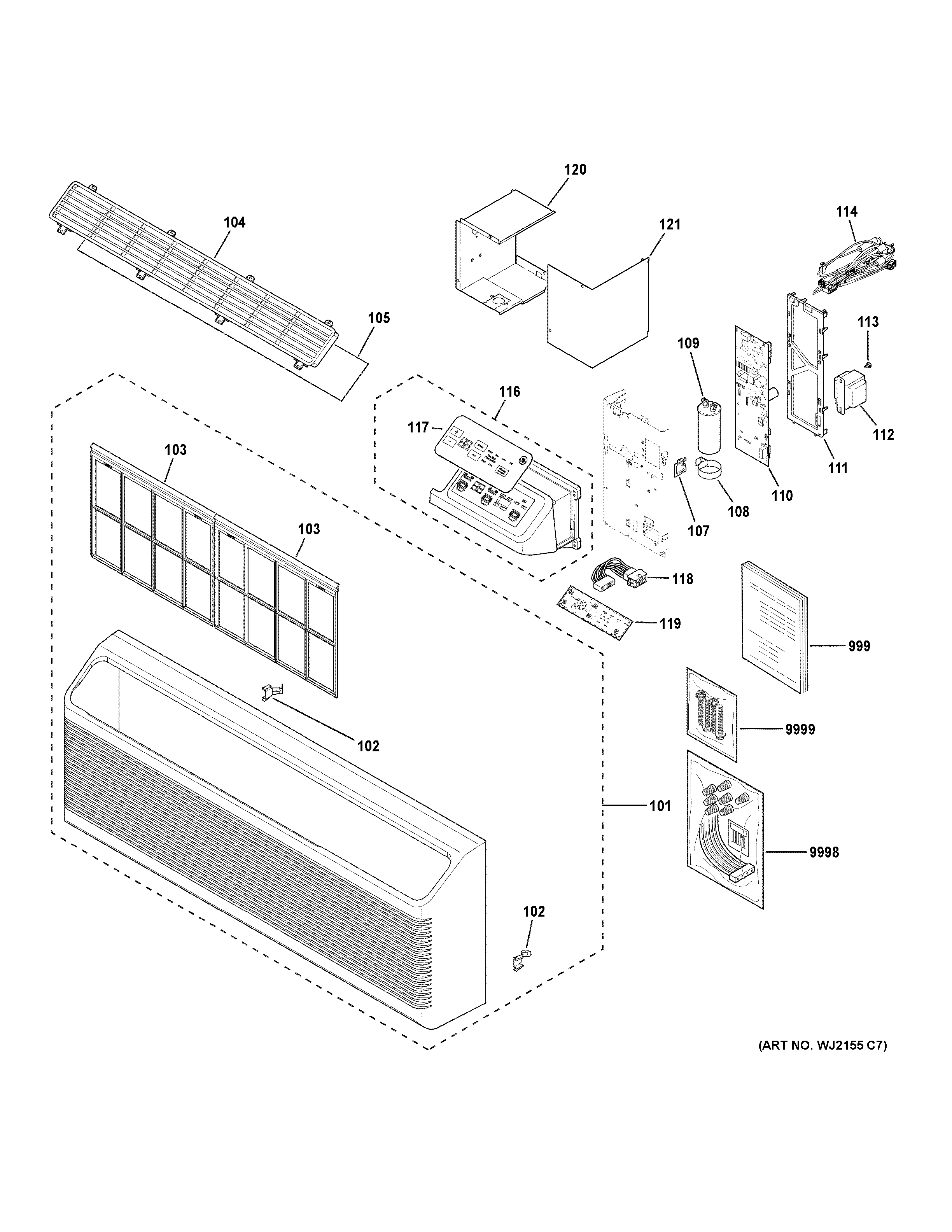

AZ45E15EACW2 GRILLE & CONTROL PARTSadmin2025-04-26T13:14:07+00:00AZ45E15EACW2 GRILLE & CONTROL PARTS ProductsPositionProduct101WP71X20960 GE Air Conditioner Front Assembly Room102WP65X20848 GE Front Room Clip103WP85X20858 GE Air Conditioner Zoneline Replacement Filter104WP71X20866 GE Air Conditioner Louver Outlet105WP71X20976 GE Welded Wire Grid107WP65X20849 GE Clip Wire108WP65X20842 GE Capacitor Bracket109WP20X20915 GE Capacitor110WP26X22240 GE Air Conditioner Main Control Board111WP76X20860 GE Air Conditioner Frame Zoneline112WP20X20900 GE Transformer113WP01X20840 GE 8-18 B IHXW 3/8 S NBS114WP37X24096 GE Main Harness116WP76X24978 GE Air Conditioner UI Housing Assembly117WP71X20874 GE Air Conditioner Display Overlay118WP37X20887 GE Air Conditioner UI Jumper Harness119WP26X31393 GE PTAC UI PCB Assembly120WP76X21001 GE Base Junction Box121WP76X21003 GE Junction Box Cover999PM MINI MANUAL999PM MINI MANUAL AND WIRING999USE AND CARE9998WP26X21585 GE Air Conditioner Thermostat Kit9999WP01X20865 GE Zoneline Install Screws 4 Pack
