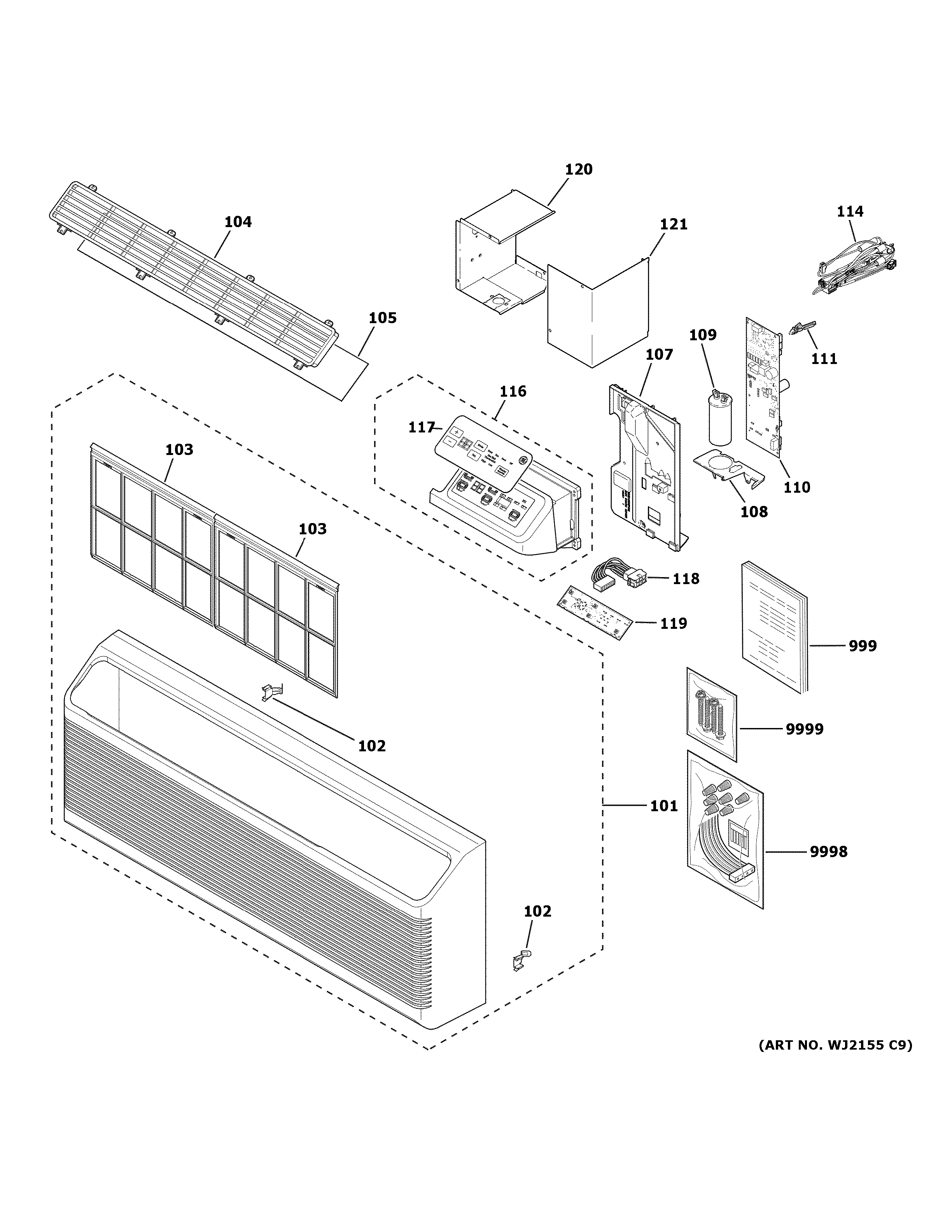

AZ45E15EACW6 GRILLE & CONTROL PARTSadmin2025-04-26T13:13:27+00:00AZ45E15EACW6 GRILLE & CONTROL PARTS ProductsPositionProduct101WP71X20960 GE Air Conditioner Front Assembly Room102WP65X20848 GE Front Room Clip103WP85X20858 GE Air Conditioner Zoneline Replacement Filter104WP71X20866 GE Air Conditioner Louver Outlet105WP71X20976 GE Welded Wire Grid107WP76X24989 GE Control Box Cover108WP65X24991 GE Bracket Capacitor109WP20X20915 GE Capacitor110SERVICE MAIN BOARD111WP01X24997 GE Support Clip Board114HARNESS MAIN 265V116WP76X24978 GE Air Conditioner UI Housing Assembly117WP71X20874 GE Air Conditioner Display Overlay118WP37X20887 GE Air Conditioner UI Jumper Harness119WP26X31393 GE PTAC UI PCB Assembly120WP76X25001 GE Junction Box Base121WP76X25000 GE Junction Box Cover999PM MINI MANUAL AND WIRING999PM OWNERS MANUAL9998WP26X24981 GE Air Conditioner Thermostat Kit9999WP01X20865 GE Zoneline Install Screws 4 Pack
