AZ45E15EACW6 SEALED SYSTEM

AZ45E15EACW6 SEALED SYSTEM

Written by

in

AZ45E15EACW6 SEALED SYSTEM

Products

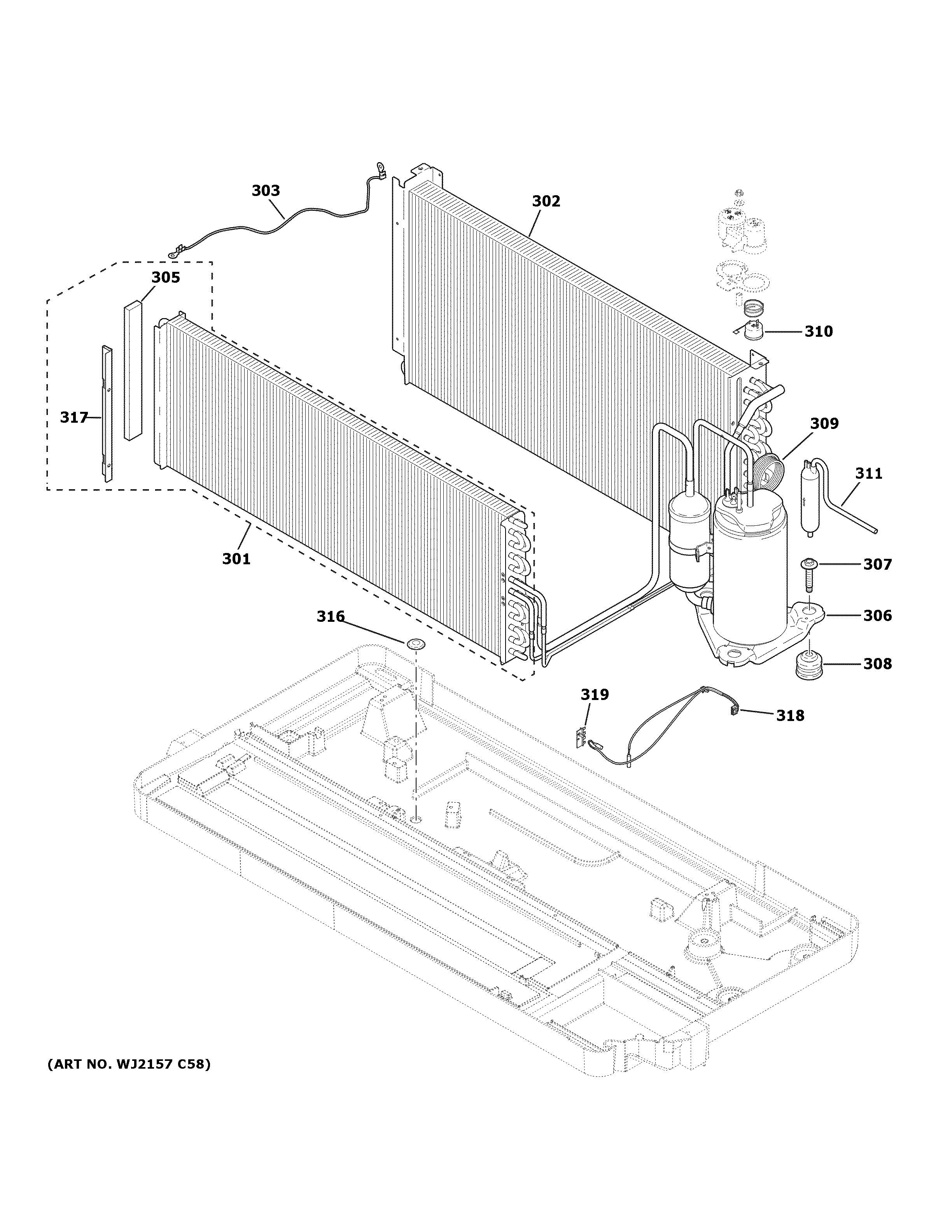

PositionProduct
301WP88X25373 GE Air Conditioner Coil Indoor with Foam
302WP87X25582 GE Outdoor Coil Assembly
303GROUND HARNESS
305WP60X20971 GE Foam Insulation Coil Side
306WP98X22960 GE Compressor Kit
307WP01X21031 GE Screw M8-125 B Shoulder 46 mm
308WP01X22401 GE Compressor Grommet
309WP56X21371 GE Cap Tube Sub Assembly
310WP20X22962 GE Compressor Overload
311WP56X22821 GE Dryer
316WP01X20980 GE Base Pan Plug
317WP01X23065 GE Coil Clip Left
318WP26X21501 GE Thermistor Clip
319WP65X25533 GE Thermistor Holder
