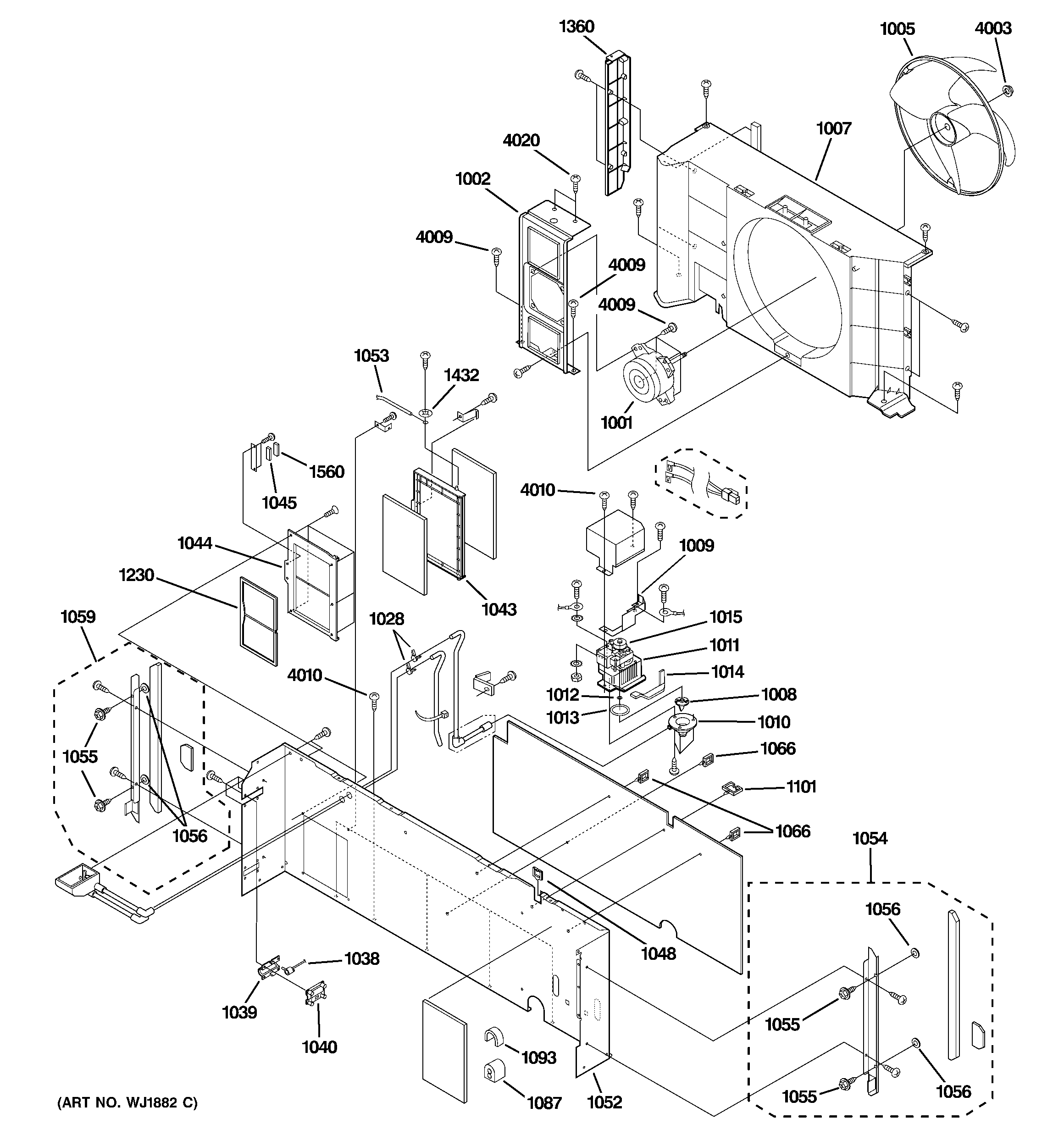

AZ58H09DADM1 BASE & CHASSIS PARTS

AZ58H09DADM1 BASE & CHASSIS PARTS

Written by

in

AZ58H09DADM1 BASE & CHASSIS PARTS

Products

PositionProduct
1001WP94X20644 GE Air Conditioner DC Fan Motor Kit
1002GEN WP65X10009
1005GEN WJ73X10047
1007WP76X10033 GE Air Conditioner Condenser Shroud
1008WP73X10002 GE Fan Assembly
1009WP79X10005 GE Pump Cover
1010WP76X10009 GE Fan Housing
1011WP76X10032 GE Fan Housing Assembly
1012GEN WJ05X10015
1013WJ05X10016 GE O-Ring Large
1014GEN WJ40X10008
1015GEN WP94X10219
1028WP03X10002 GE Rubber Clamp
1038WP70X10031 GE Damper Lever
1039GEN WP70X10039
1040GEN WP70X10040
1043GEN WP70X10032
1044GEN WP76X10028
1045WP01X10001 GE Magnet
1048GEN WP03X10010
1052GEN WP76X10035
1053GEN WP01X10028
1054GEN WP66X10005
1055GEN WP01X10029
1056WP01X10005 GE Rubber Washer
1059GEN WP66X10006
1066GEN WJ03X10008
1087GEN WJ40X10014
1093WJ40X10015 GE Bulkhead Insulator
1101WP01X10009 GE Cord Holder
1230GEN WP85X10007
1360GEN WJ79X10134
1432WP02X10003 GE Push Nut
1560GEN WP01X10002
4003SPECIAL NUT
4009GEN WJ01X10037
4010GEN WJ01X10012
4020WP01X10021 GE Air Conditioner Special Screw
