AZ65H07DACW2 SEALED SYSTEM

AZ65H07DACW2 SEALED SYSTEM

Written by

in

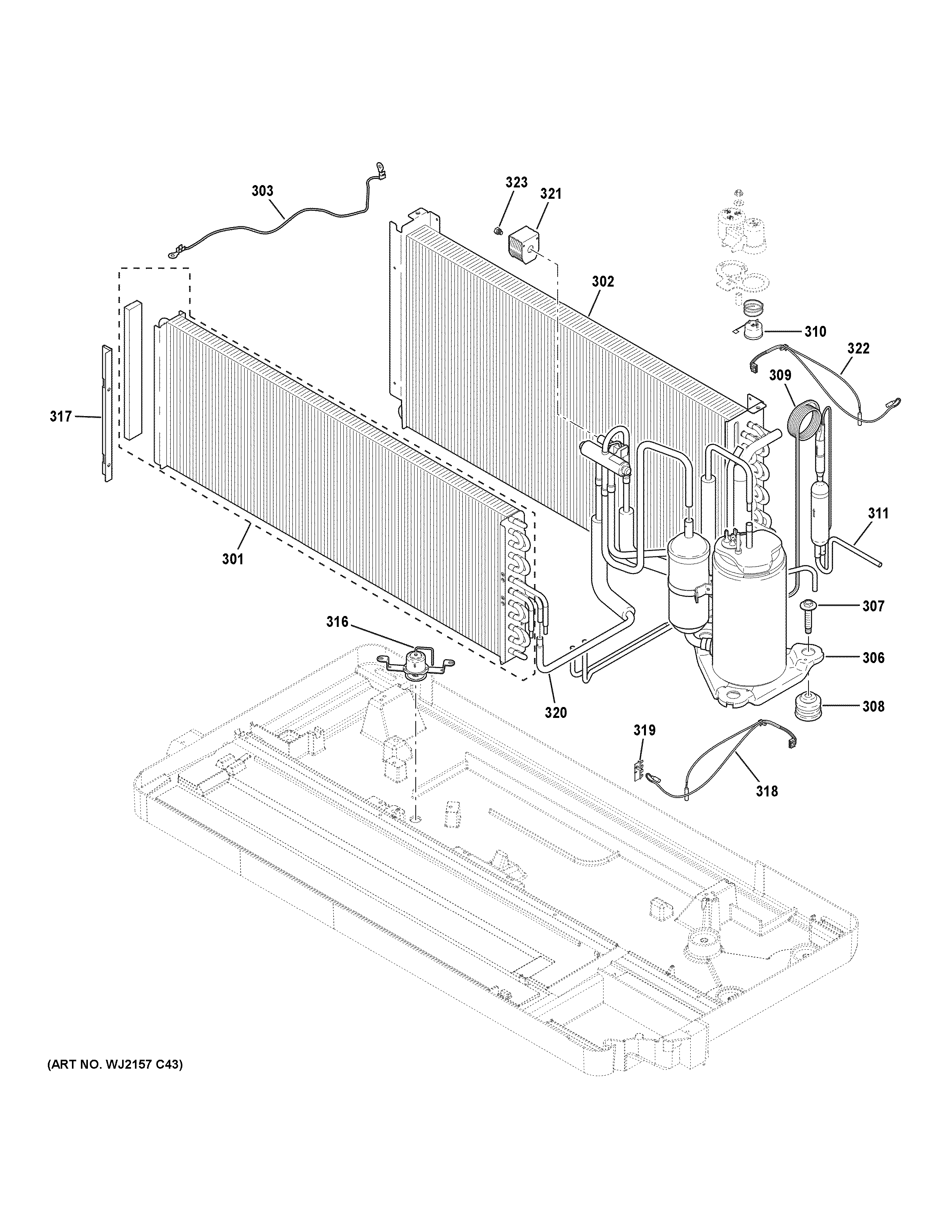

AZ65H07DACW2 SEALED SYSTEM

Products

PositionProduct
301WP88X21660 GE Air Conditioner Indoor Coil Assembly with Foam
302WP87X20741 GE Outdoor Coil Assembly
303GROUND HARNESS
306COMPRESSOR ASM
307WP01X21031 GE Screw M8-125 B Shoulder 46 mm
308WP01X22401 GE Compressor Grommet
309WP56X21372 GE Cap Tube Sub Assembly
310WP98X20875 GE Compressor Overload
311WP56X21412 GE Dryer Kit
316WP26X21581 GE Thermostatic Drain Valve
317WP01X23065 GE Coil Clip Left
318WP26X20982 GE Air Conditioner Thermistor
319WP65X25533 GE Thermistor Holder
320WP58X21600 GE Reversing Valve Kit
321WP20X20924 GE Air Conditioner Reversing Solenoid Valve
322WP26X21015 GE Thermistor Od Assembly
323WP01X21861 GE Solenoid Screw
