AZ65H07EBMW5 SEALED SYSTEM

AZ65H07EBMW5 SEALED SYSTEM

Written by

in

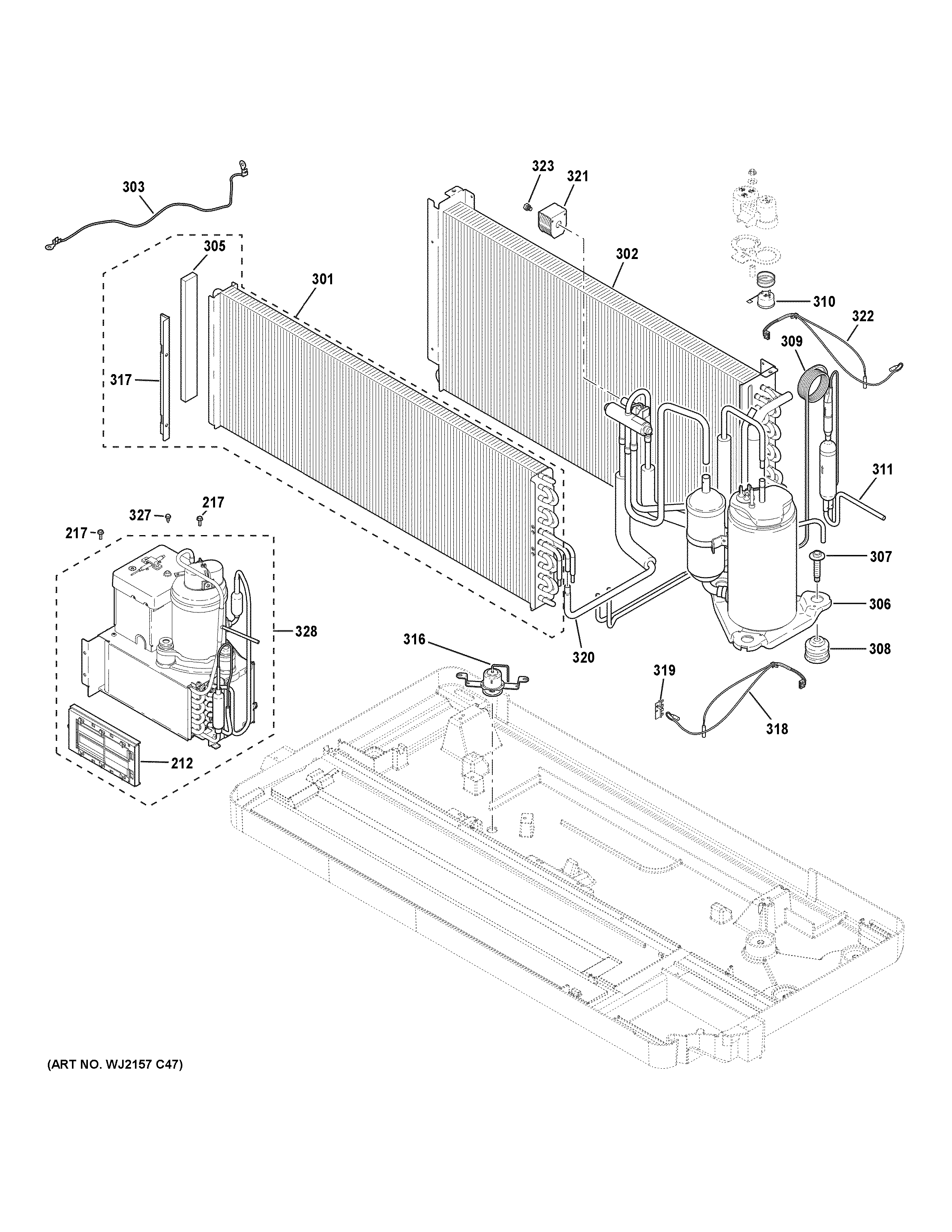

AZ65H07EBMW5 SEALED SYSTEM

Products

PositionProduct
212WP71X22420 GE Door Vent Assembly
217WP01X20879 GE Scraper 8-18 Ab Hxw 3/8 Snubber
301WP88X24075 GE Indoor Coil Assembly with Foam
302WP87X25582 GE Outdoor Coil Assembly
303GROUND HARNESS
305WP60X20971 GE Foam Insulation Coil Side
306WP98X21106 GE Compressor Kit Assembly
307WP01X21031 GE Screw M8-125 B Shoulder 46 mm
308WP01X22401 GE Compressor Grommet
309WP56X21372 GE Cap Tube Sub Assembly
310WP20X20899 GE Overload Compressor
311WP56X21412 GE Dryer Kit
316WP26X21581 GE Thermostatic Drain Valve
317WP01X23065 GE Coil Clip Left
318WP26X21501 GE Thermistor Clip
319WP65X25533 GE Thermistor Holder
320WP58X21600 GE Reversing Valve Kit
321WP20X21034 GE Air Conditioner Reversing Solenoid Valve
322WP26X24986 GE Thermistor Assembly
323WP01X21861 GE Solenoid Screw
327WP01X21546 GE Screw 10-32 AB HXW 7/16 S
328WP98X25276 GE Make-Up Air Module Kit 265V
