AZ65H09DADW1 SEALED SYSTEM

AZ65H09DADW1 SEALED SYSTEM

Written by

in

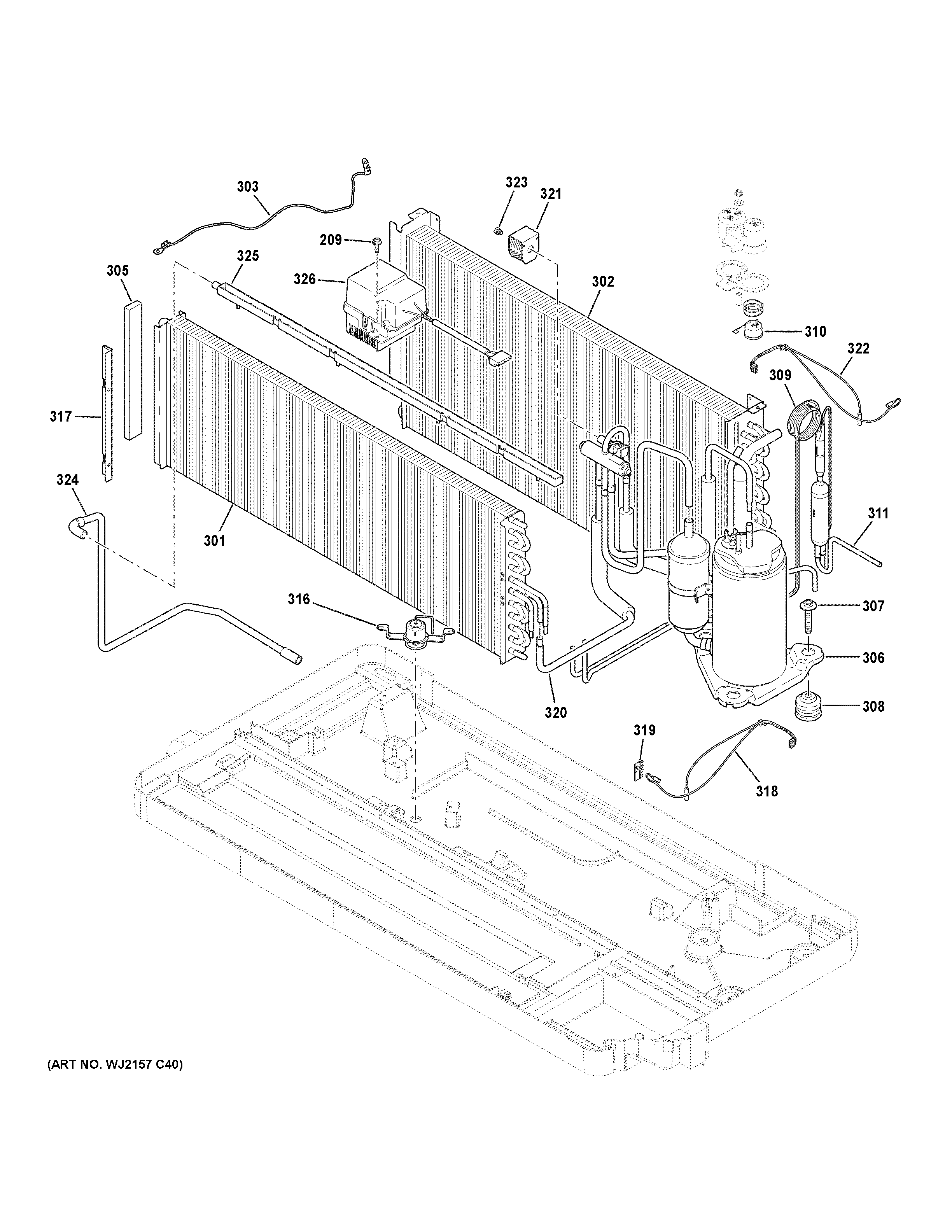

AZ65H09DADW1 SEALED SYSTEM

Products

PositionProduct
209WP01X20877 GE Screws 10-18 Hi/Lo Hxw 1/2
301WP88X25580 GE Indoor Coil Assembly
302WP87X25582 GE Outdoor Coil Assembly
303GROUND HARNESS
305WP60X20971 GE Foam Insulation Coil Side
306WP98X21103 GE Appliance Compressor Kit
307WP01X21031 GE Screw M8-125 B Shoulder 46 mm
308WP01X22401 GE Compressor Grommet
309WP56X21373 GE Cap Tube Subassembly
310WP20X20905 GE Compressor Overload
311WP56X21412 GE Dryer Kit
316WP26X21581 GE Thermostatic Drain Valve
317WP01X23065 GE Coil Clip Left
318WP26X20982 GE Air Conditioner Thermistor
319WP65X25533 GE Thermistor Holder
320WP58X21601 GE Reversing Valve Kit
321WP20X20924 GE Air Conditioner Reversing Solenoid Valve
322WP26X21015 GE Thermistor Od Assembly
323WP01X21861 GE Solenoid Screw
324TUBE PEX ASM
325WP76X21520 GE Wick Reservoir
326PUMP ICR ASM
