AZ65H15DABW6 SEALED SYSTEM

AZ65H15DABW6 SEALED SYSTEM

Written by

in

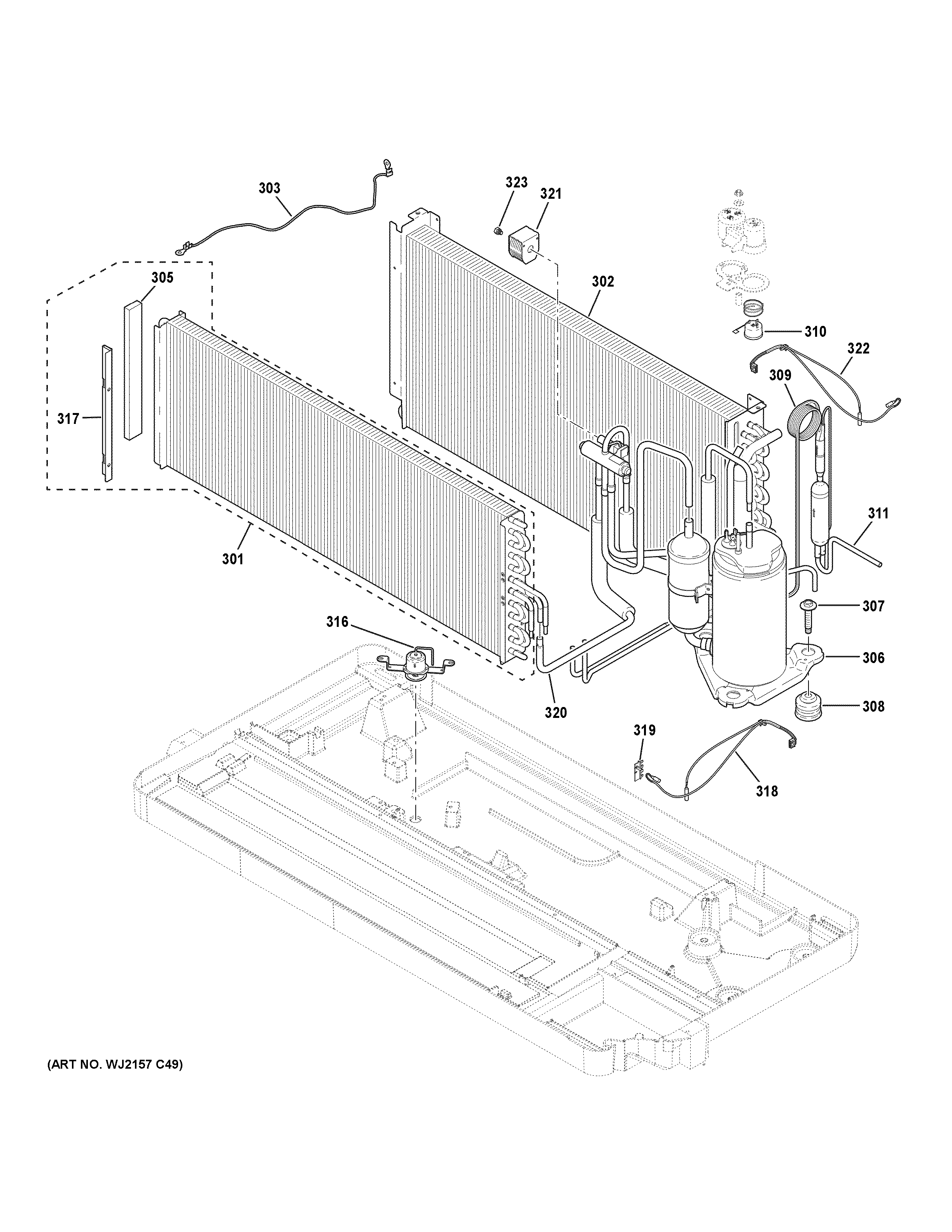

AZ65H15DABW6 SEALED SYSTEM

Products

PositionProduct
301WP88X25373 GE Air Conditioner Coil Indoor with Foam
302WP87X25583 GE Outdoor Coil Assembly
303GROUND HARNESS
305WP60X20971 GE Foam Insulation Coil Side
306WP98X21105 GE Air Conditioner Assembly Compressor Kit
307WP01X21031 GE Screw M8-125 B Shoulder 46 mm
308WP01X22401 GE Compressor Grommet
309WP56X21375 GE Cap Tube Sub-Assembly
310WP20X20919 GE Overload Compressor
311WP56X21412 GE Dryer Kit
316WP26X21581 GE Thermostatic Drain Valve
317WP01X23065 GE Coil Clip Left
318WP26X20982 GE Air Conditioner Thermistor
319WP65X25533 GE Thermistor Holder
320WP58X21603 GE Reversing Valve Kit
321WP20X20924 GE Air Conditioner Reversing Solenoid Valve
322WP26X24986 GE Thermistor Assembly
323WP01X21861 GE Solenoid Screw
