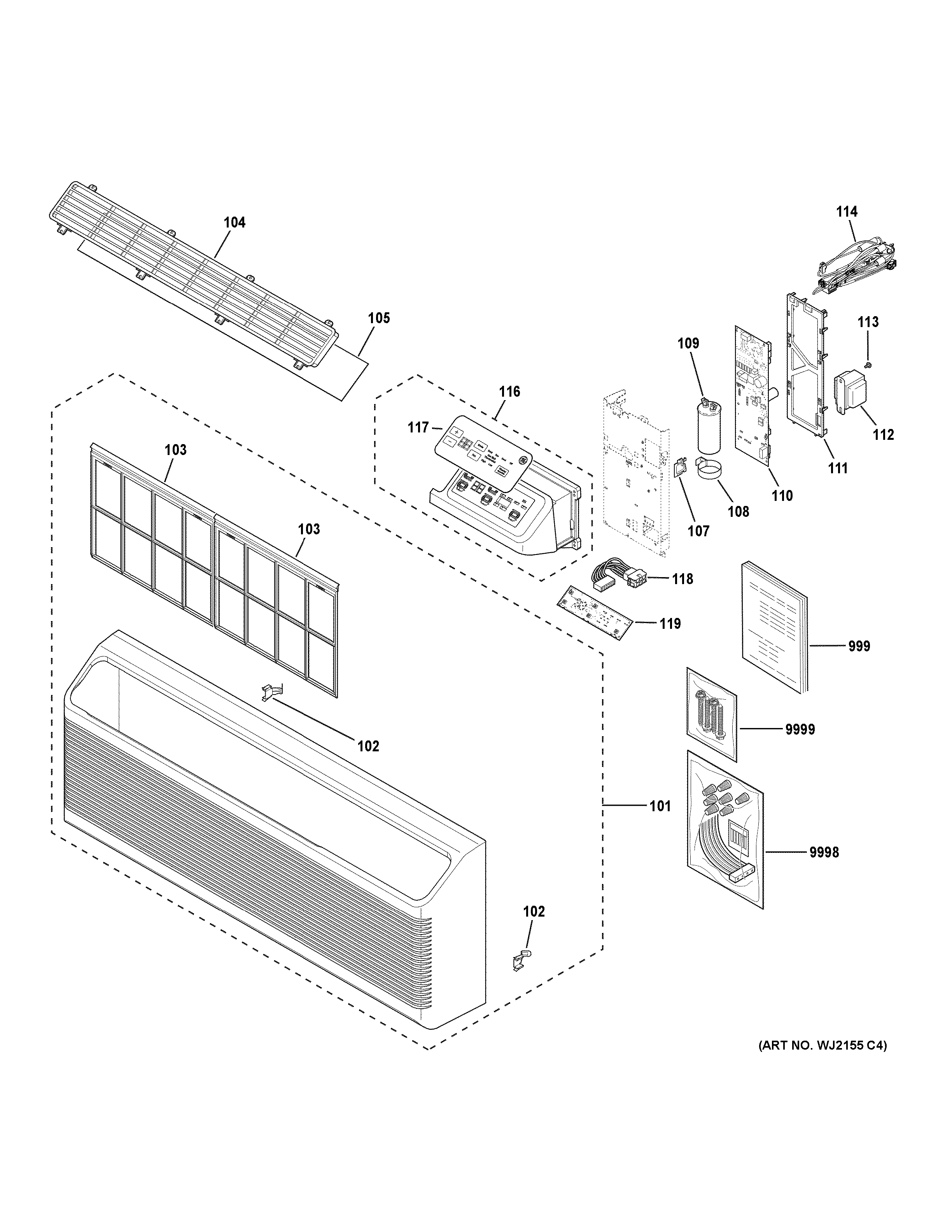

AZ65H15DADW2 GRILLE & CONTROL PARTS

AZ65H15DADW2 GRILLE & CONTROL PARTS

Written by

in

AZ65H15DADW2 GRILLE & CONTROL PARTS

Products

PositionProduct
101WP71X20960 GE Air Conditioner Front Assembly Room
102WP65X20848 GE Front Room Clip
103WP85X20858 GE Air Conditioner Zoneline Replacement Filter
104WP71X20866 GE Air Conditioner Louver Outlet
105WP71X20976 GE Welded Wire Grid
107WP65X20849 GE Clip Wire
108WP65X20842 GE Capacitor Bracket
109WP20X20915 GE Capacitor
110WP26X22240 GE Air Conditioner Main Control Board
111WP76X20860 GE Air Conditioner Frame Zoneline
112WP20X20886 GE Transformer
113WP01X20840 GE 8-18 B IHXW 3/8 S NBS
114WP37X24536 GE Main Harness
116WP76X24978 GE Air Conditioner UI Housing Assembly
117WP71X20874 GE Air Conditioner Display Overlay
118WP37X20887 GE Air Conditioner UI Jumper Harness
119WP26X31393 GE PTAC UI PCB Assembly
999PM MINI MANUAL AND WIRING
999PM OWNERS MANUAL
999PM MINI MANUAL
9998WP26X21585 GE Air Conditioner Thermostat Kit
9999WP01X20865 GE Zoneline Install Screws 4 Pack
