AZ90E12D3CW1 VERTICAL ZONELINE

Products

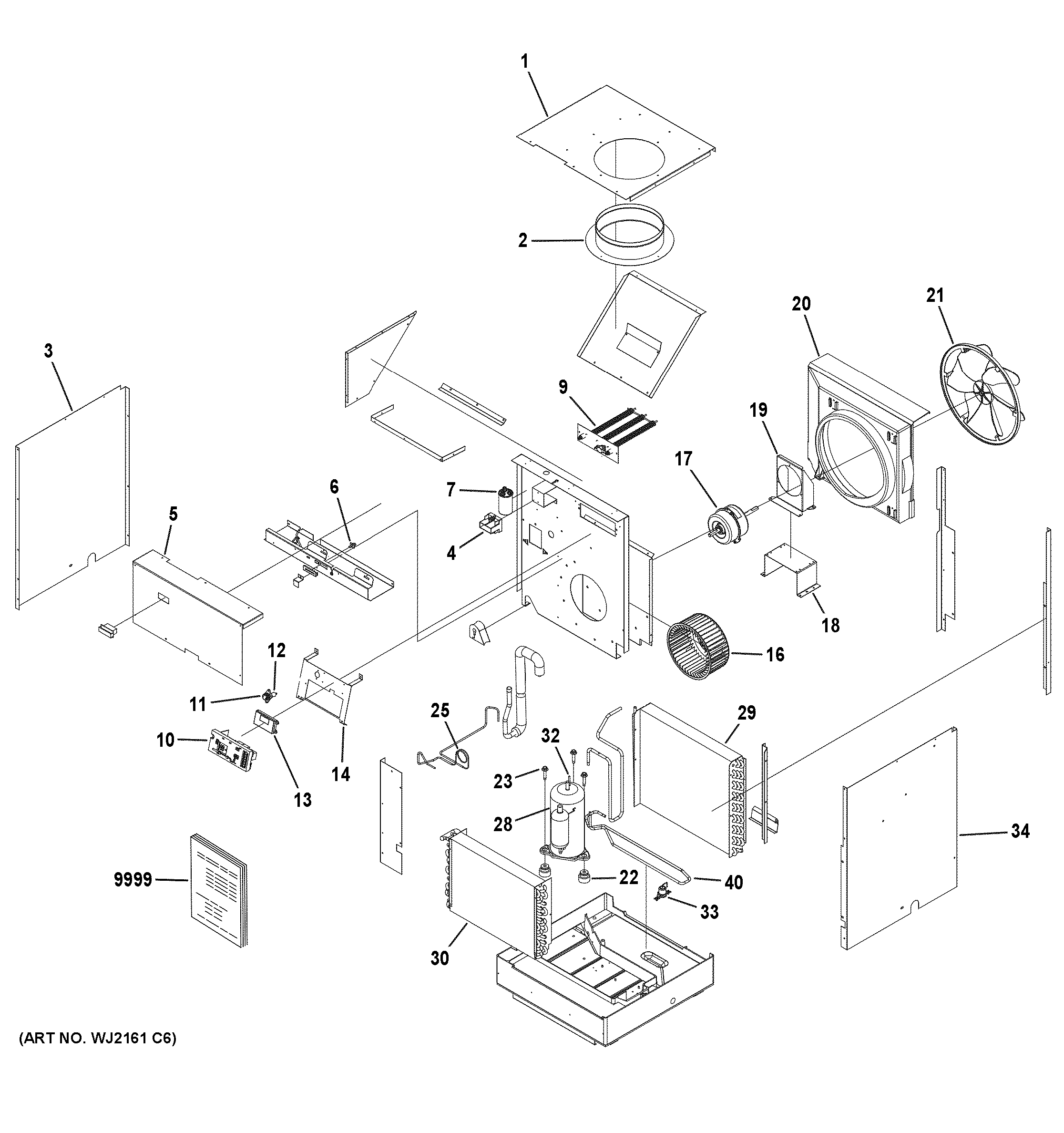

PositionProduct
1TOP COVER AND INSULATION
2COLLAR
3LEFT SIDE PANEL AND INSULATION
4WP35X21958 GE Power Disconnect
5CONTROL PANEL COVER
6WP71X21961 GE Vent Slide Assembly
7WP20X21964 GE Capacitor
9WP27X21962 GE Heater Assembly
10WP26X21951 GE Air Conditioner Main Control Board
11WP20X22460 GE Air Conditioner 20A Fuse
12FUSE HOLDER
13DISPLAY BOARD AND JUMPER
14WP65X21940 GE Control Bracket
16WP73X22880 GE Indoor Fan Blade
17WP94X21943 GE Fan Motor
18MOTOR RISER
19MOTOR MOUNT
20WP73X21956 GE Outdoor Fan Shroud
21WP73X22881 GE Outdoor Fan Blade
22GROMMET
23WP01X21934 GE Bolt
25WP53X24846 GE Assembly Cap Tube
28WP98X21967 GE Compressor and Electrical Components
29WP87X21968 GE Coil Outdoor
30WP88X21948 GE Air Conditioner Indoor Coil
32WP20X21969 GE Overload
33WP53X21939 GE Condensate Drain Valve
34RIGHT SIDE PANEL AND INSULATION
40WP53X24843 GE Sump Tube
9999PM OWNERS MANUAL
9999PM MINI MANUAL
