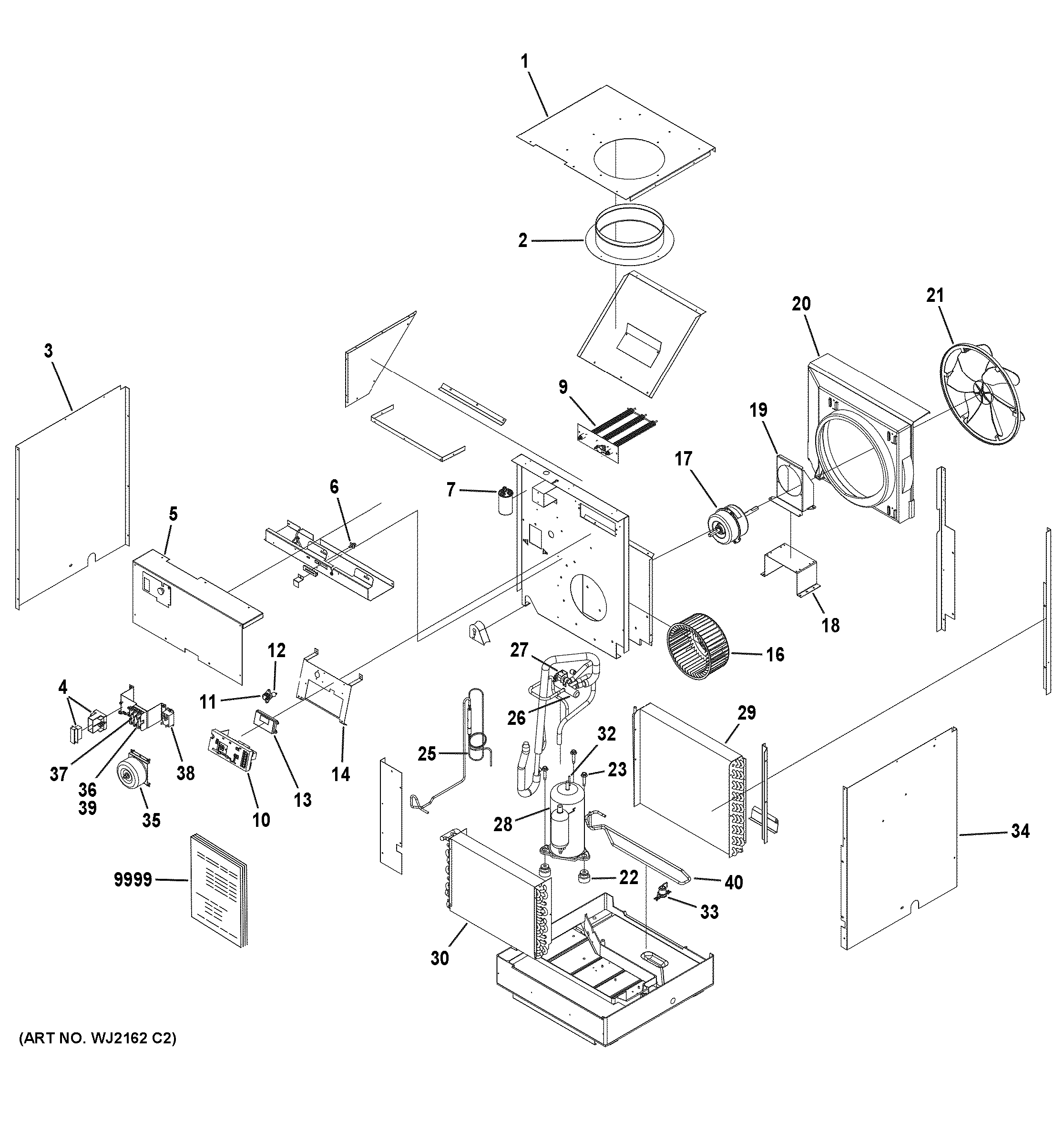

AZ91H12E3CW1 VERTICAL ZONELINEadmin2025-04-26T08:48:09+00:00AZ91H12E3CW1 VERTICAL ZONELINE ProductsPositionProduct1TOP COVER AND INSULATION2COLLAR3LEFT SIDE PANEL AND INSULATION4WP35X21958 GE Power Disconnect5CONTROL PANEL COVER6WP71X21961 GE Vent Slide Assembly7WP20X21964 GE Capacitor9HEATER ASM10WP26X21993 GE Air Conditioner Main Board11WP20X22460 GE Air Conditioner 20A Fuse12FUSE HOLDER13DISPLAY BOARD AND JUMPER14WP65X21940 GE Control Bracket16WP73X22880 GE Indoor Fan Blade17WP94X21943 GE Fan Motor18MOTOR RISER19MOTOR MOUNT20WP73X21956 GE Outdoor Fan Shroud21WP73X22881 GE Outdoor Fan Blade22GROMMET23WP01X21934 GE Bolt25WP53X24849 GE Cap Tube Assembly26WP58X21994 GE Valve Assembly Reversing27WP20X21995 GE Reversing Solenoid Valve28WP98X21967 GE Compressor and Electrical Components29WP87X21954 GE Outdoor Coil30WP88X21948 GE Air Conditioner Indoor Coil32WP20X21969 GE Overload33WP53X21939 GE Condensate Drain Valve34RIGHT SIDE PANEL AND INSULATION35WP27X22004 GE Transformer36WP20X21999 GE 15 Amp Fuse37WP20X22001 GE Fuse Block38WP20X22003 GE Relay - 30 Amp39WP20X22000 GE Air Conditioner 20 AMP Fuse40WP53X24843 GE Sump Tube9999PM MINI MANUAL9999PM OWNERS MANUAL
