AZ91H18E3EW1 VERTICAL ZONELINE

Products

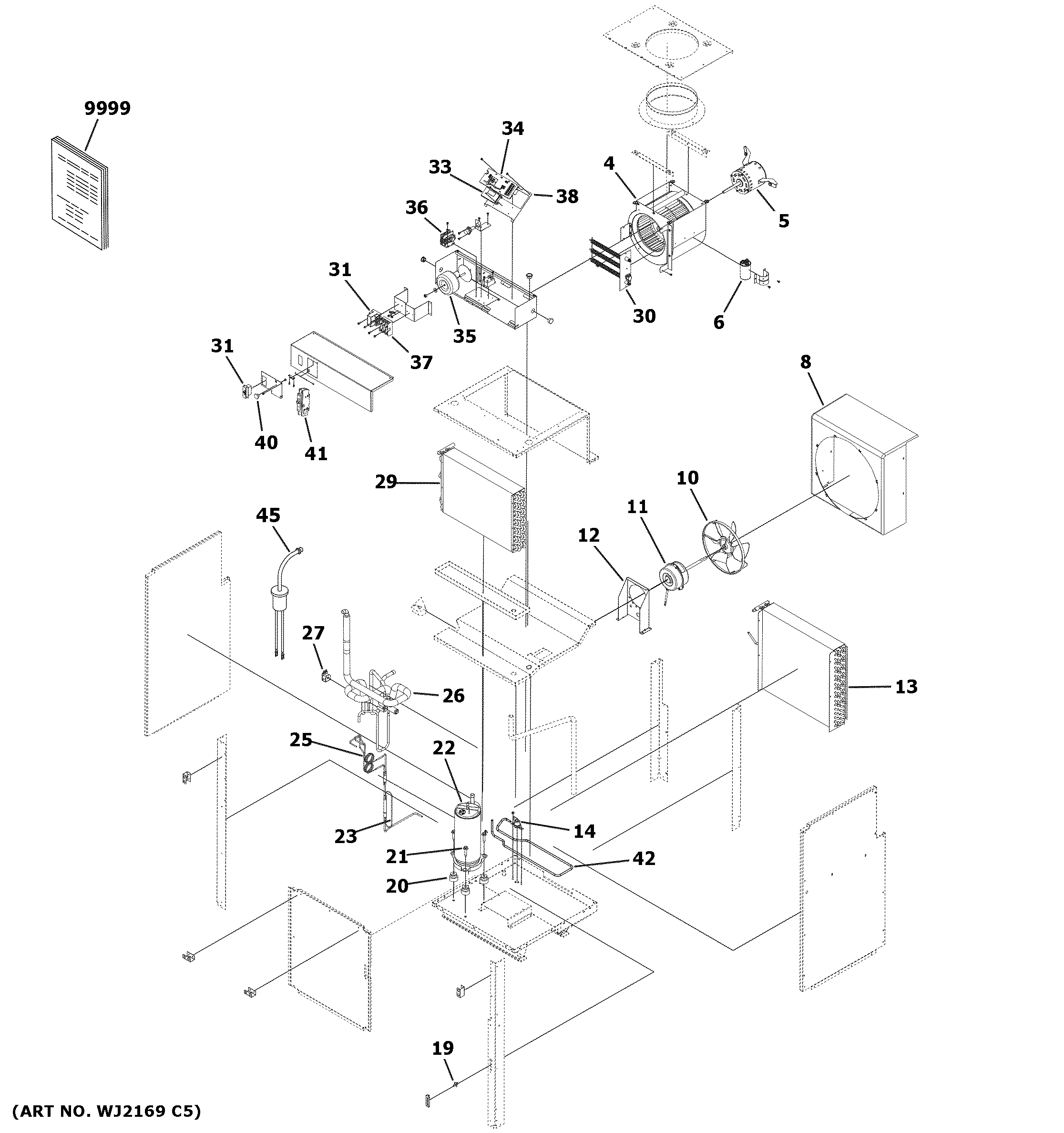

PositionProduct
4WP76X22018 GE Indoor Fan and Housing
5WP94X25619 GE Indoor Fan Motor
6WP20X25614 GE Capacitor
8WP76X25623 GE Outdoor Fan Shroud
10WP73X22023 GE Fan Blade Outdoor
11WP94X25617 GE Outdoor Fan Motor
12WP65X25616 GE Outdoor Fan Motor Bracket
13WP88X22022 GE Coil Outdoor
14WP53X21939 GE Condensate Drain Valve
19WP71X22033 GE Vent Slide
20WP01X25613 GE Grommet
21WP01X21934 GE Bolt
22COMPRESSOR AND ELECTRICALS
23WP53X25620 GE Check Valve Assembly
25WP53X25621 GE Capillary Tube Assembly
26WP53X25622 GE Reversing Valve Assembly
27WP20X21995 GE Reversing Solenoid Valve
29WP88X22017 GE Indoor Coil
30WP27X22596 GE Heater Assembly
31WP35X21958 GE Power Disconnect
33WP26X22014 GE Display Board
34WP26X21993 GE Air Conditioner Main Board
35WP27X22004 GE Transformer
36WP20X24320 GE Compressor Relay
37WP20X22001 GE Fuse Block
38WP20X22003 GE Relay – 30 Amp
40WP01X22567 GE Knob
41WP20X25601 GE Circuit Breaker
42WP53X25618 GE Sump Tube
45WP27X29033 GE Pressure Switch
9999PM INSTALL INSTRUCTIONS
9999PM OWNERS MANUAL
9999PM MINI MANUAL AND WIRING
