AZ91H18E5CK1 VERTICAL ZONELINE

AZ91H18E5CK1 VERTICAL ZONELINE

Written by

in

AZ91H18E5CK1 VERTICAL ZONELINE

Products

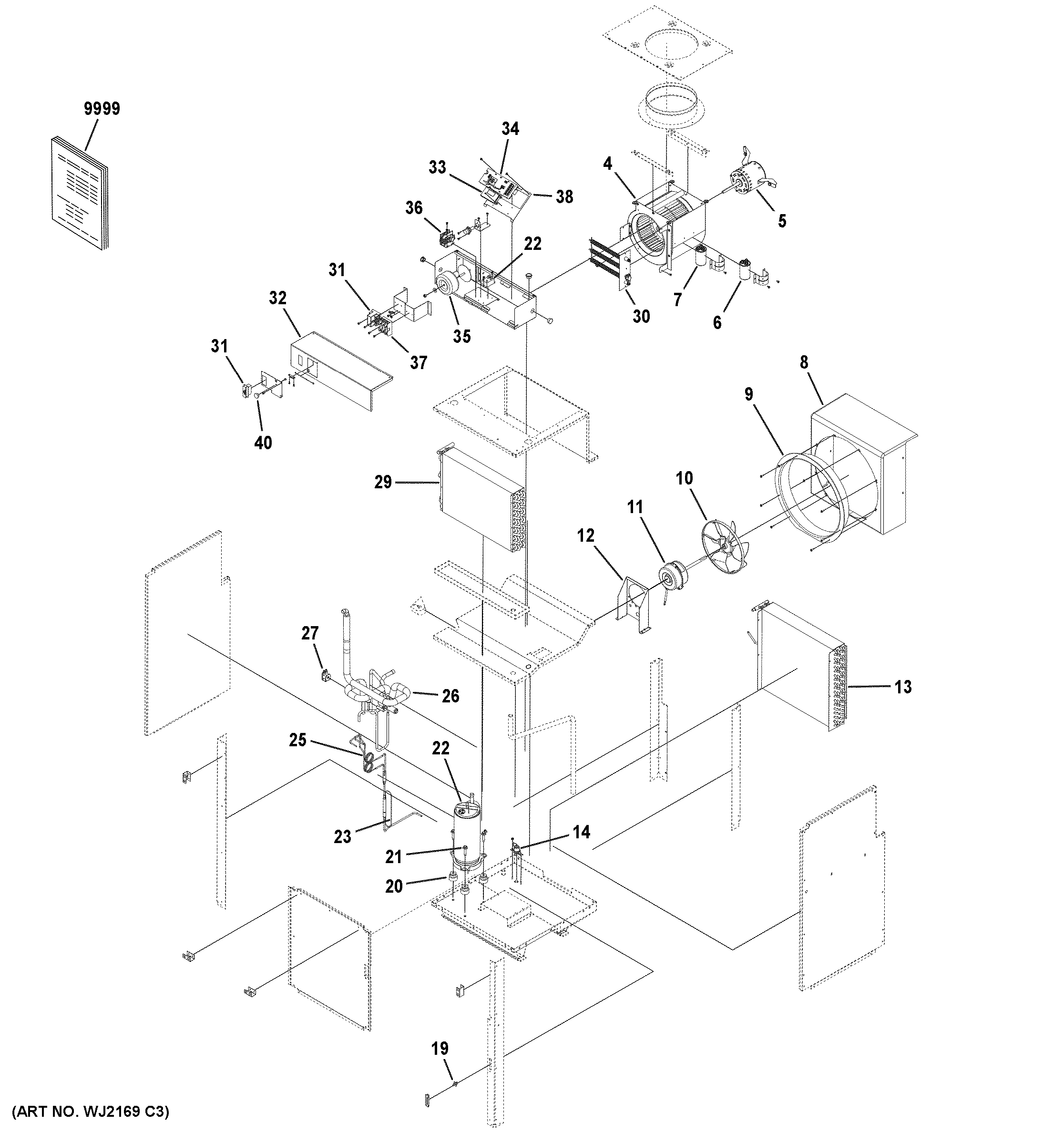

PositionProduct
4WP76X22018 GE Indoor Fan and Housing
5WP94X22019 GE Indoor Fan Motor
6WP20X22008 GE Outdoor Motor Capacitor
7WP20X22007 GE Indoor Motor Capacitor
8WP76X22026 GE Outdoor Fan Shroud
9WP73X22568 GE Liner
10WP73X22023 GE Fan Blade Outdoor
11WP94X22024 GE Outdoor Fan Motor
12WP65X22025 GE Outdoor Fan Motor Bracket
13WP88X22022 GE Coil Outdoor
14WP53X21939 GE Condensate Drain Valve
19WP71X22570 GE Vent Slide
20WP01X22015 GE Grommet
21WP01X21934 GE Bolt
22WP98X22011 GE Compressor And Electricals
23WP53X22572 GE Heat Capillary Tube
25CAPILLARY TUBE COOL
26WP58X22565 GE Reversing Valve
27WP20X21995 GE Reversing Solenoid Valve
29WP88X22017 GE Indoor Coil
30WP27X22597 GE Heater Assembly
31WP35X21958 GE Power Disconnect
32WP76X22564 GE Control Panel Cover
33WP26X22014 GE Display Board
34WP26X21993 GE Air Conditioner Main Board
35WP27X22004 GE Transformer
36WP20X24320 GE Compressor Relay
37WP20X22001 GE Fuse Block
38WP20X22003 GE Relay – 30 Amp
40WP01X22567 GE Knob
40SUMP TUBE
9999PM MINI MANUAL
9999PM OWNERS MANUAL
