AZ95E12DACK1 CONTROL PARTS

AZ95E12DACK1 CONTROL PARTS

Written by

in

AZ95E12DACK1 CONTROL PARTS

Products

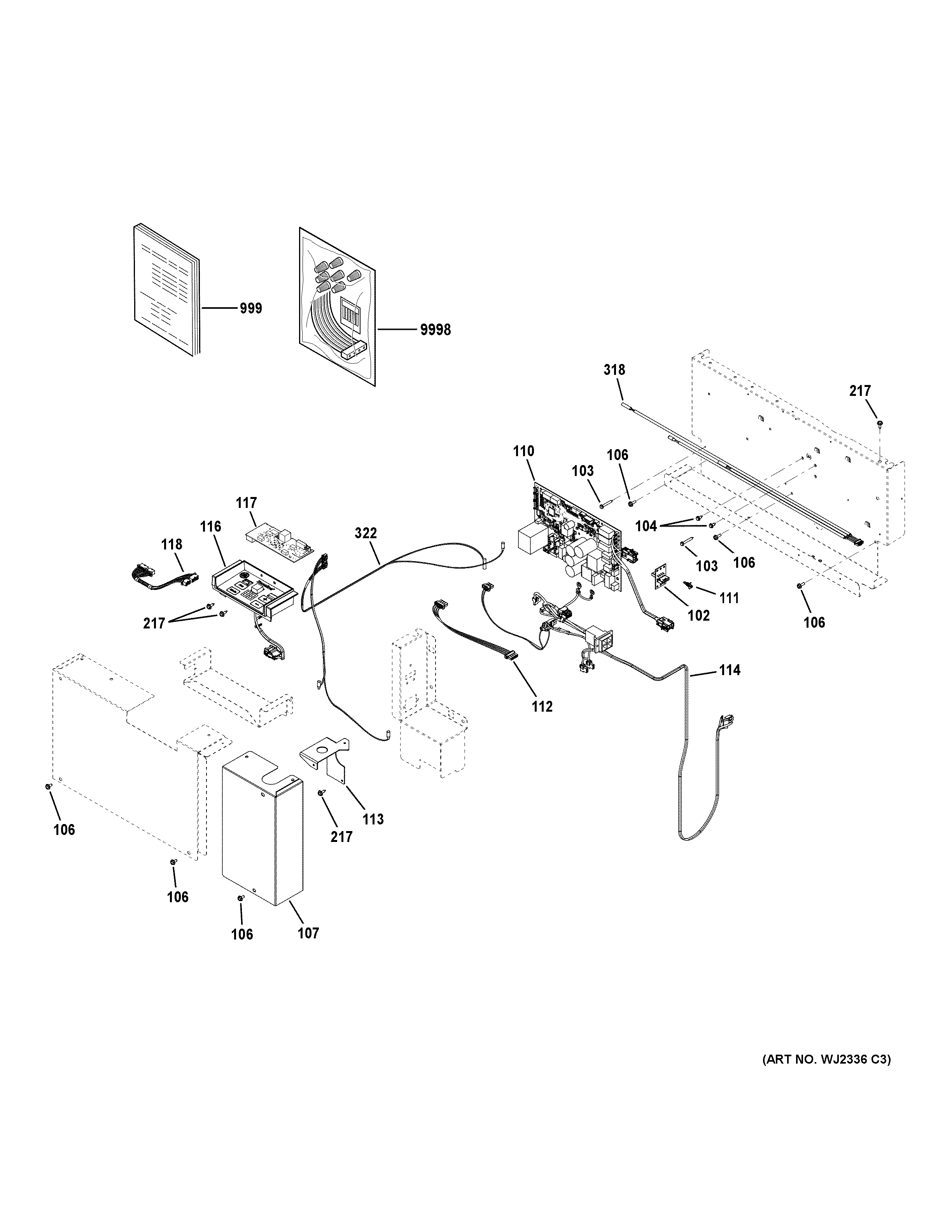

PositionProduct
102WP26X28064 GE Personality Board
103WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
104WP01X21546 GE Screw 10-32 AB HXW 7/16 S
106WP01X20840 GE 8-18 B IHXW 3/8 S NBS
107JUNCTION BOX COVER
110WP26X31053 GE Main Board
111WP01X28070 GE Standoff Clip
112PERSONALITY JUMPER
113WP65X28069 GE Bracket Cable Connector
114WP35X28060 GE Main Harness 230V
116WP76X28405 GE UI Housing
117WP26X28613 GE User Interface Board
118USER INTERFACE HARNESS
217WP01X20879 GE Scraper 8-18 Ab Hxw 3/8 Snubber
318WP26X28044 GE Indoor Thermistor
322WP26X28043 GE Outdoor Thermistor
999PM MINI MANUAL AND WIRING
999PM OWNERS MANUAL
9998WP26X24981 GE Air Conditioner Thermostat Kit
