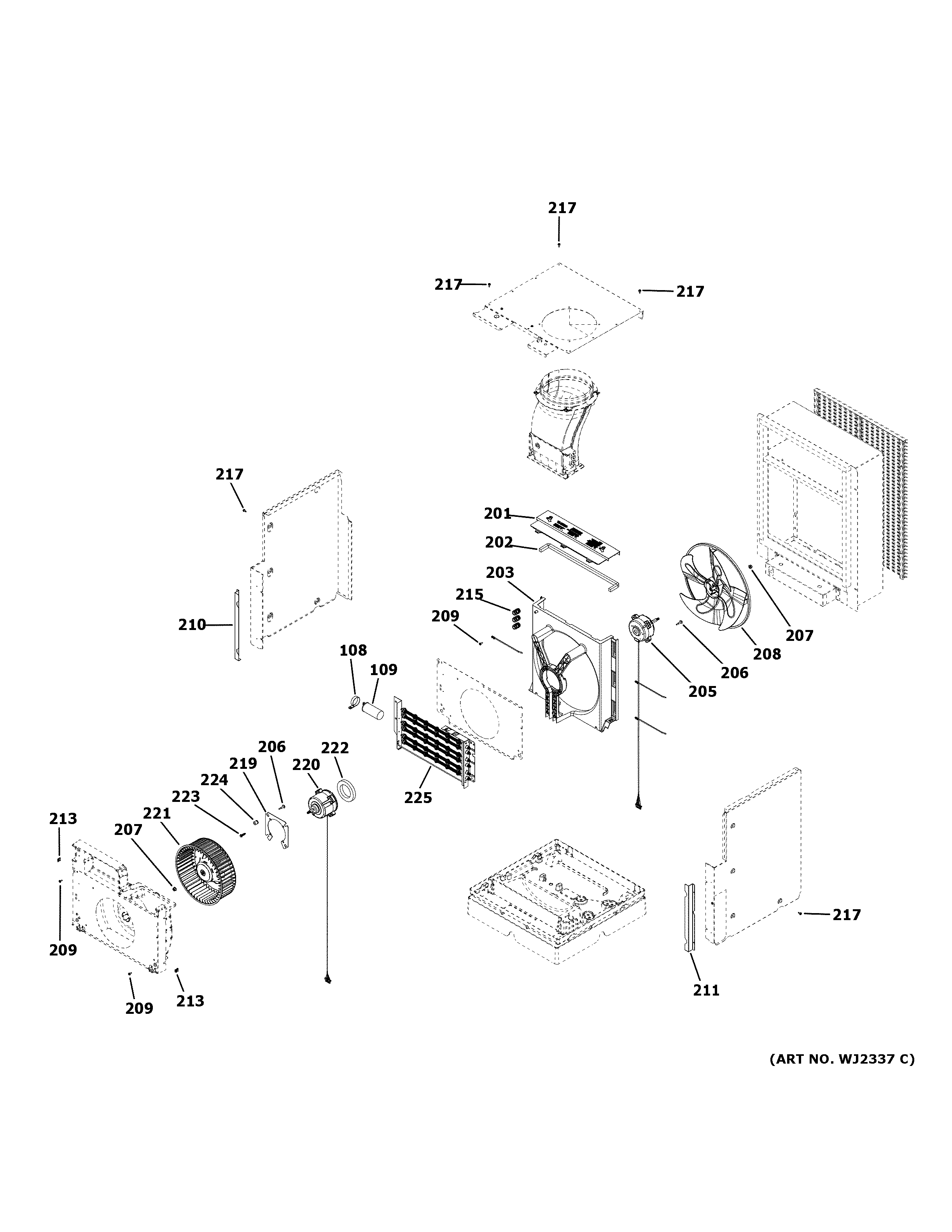

AZ95E18DACK1 MOTOR & CHASSIS PARTS

AZ95E18DACK1 MOTOR & CHASSIS PARTS

Written by

in

AZ95E18DACK1 MOTOR & CHASSIS PARTS

Products

PositionProduct
108WP65X28059 GE Bracket Capacitor
109WP20X28034 GE Capacitor
201OUTDOOR SHROUD COVER
202WP43X28038 GE Outdoor Shroud Cover Gasket
203WP76X28055 GE Fan Shroud
205WP94X28056 GE Outdoor Fan Motor
206WP01X20878 GE Screw 5/16" B Shoulder Hi-Lo
207WP01X28085 GE Fan Blade Nut
208WP73X28057 GE Outdoor Fan Assembly
209WP01X20877 GE Screws 10-18 Hi/Lo Hxw 1/2
210AIR FILTER BRACKET-LEFT
211AIR FILTER BRACKET-RIGHT
213WP01X28072 GE U-Nut 8-18
215WP01X28040 GE Grommet Wire
217WP01X20879 GE Scraper 8-18 Ab Hxw 3/8 Snubber
219WP65X28354 GE Fan Motor Bracket
220WP94X28753 GE DC Fan Motor
221WP73X28053 GE Indoor Fan Assembly
222WP43X28076 GE Fan Motor Gasket
223WP01X28086 GE Motor Bracket Screw
224WP01X28042 GE Indoor Fan Motor Grommet
225WP27X28073 GE 230V Heater Assembly
