AZ9VH12DBMH1 CONTROL PARTS

AZ9VH12DBMH1 CONTROL PARTS

Written by

in

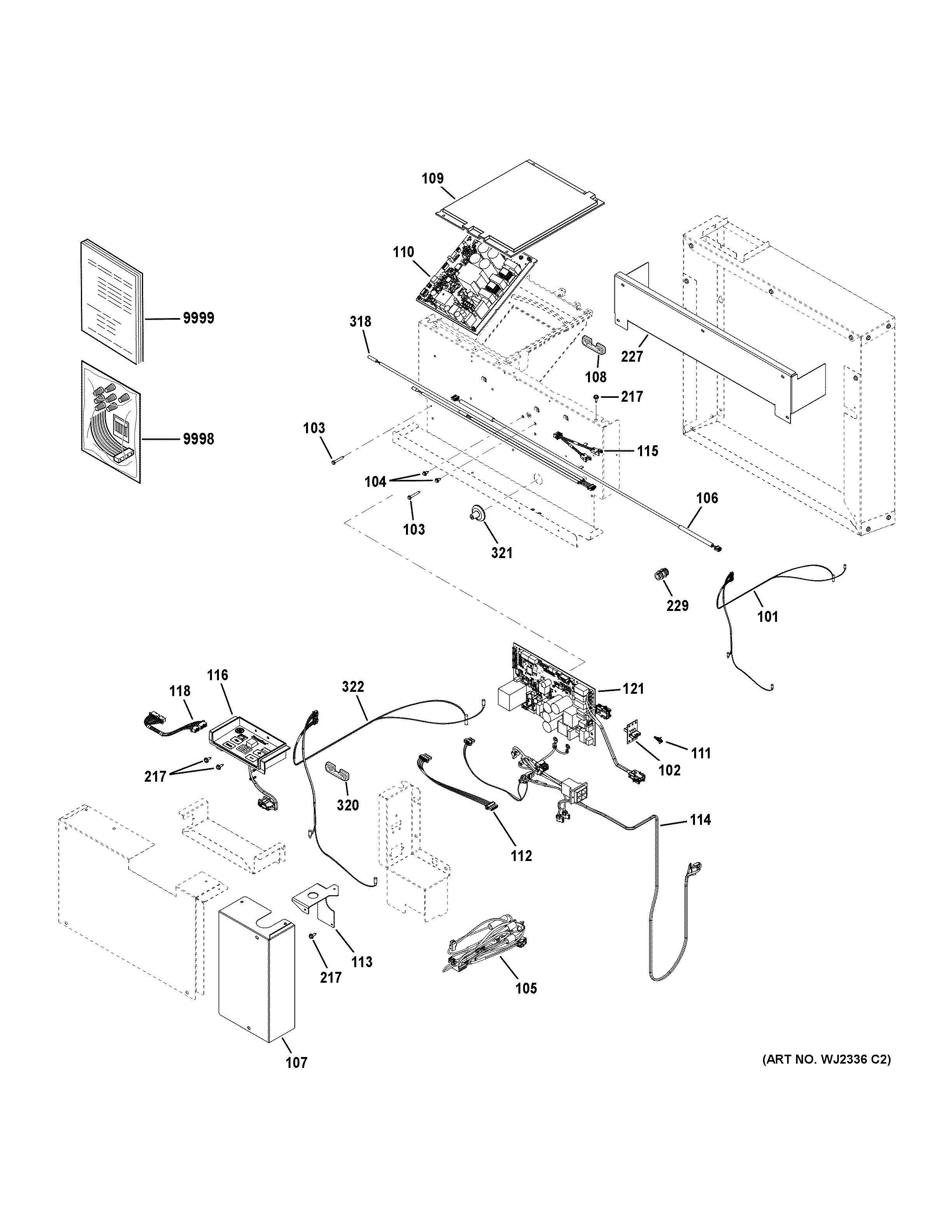

AZ9VH12DBMH1 CONTROL PARTS

Products

PositionProduct
101THERMISTOR HARNESS
102WP26X28064 GE Personality Board
103WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
104WP01X21546 GE Screw 10-32 AB HXW 7/16 S
105MAIN HARNESS PIGTAIL & COMPRESSOR
106HARNESS GEA3
107JUNCTION BOX COVER
108GROMMET INVERTER
109INVERTER BOARD LID
110WP26X31433 GE Vertical Inverter MUA Hardware and Software
111WP01X28070 GE Standoff Clip
112PERSONALITY JUMPER
113WP65X28069 GE Bracket Cable Connector
114230V HARNESS MAIN
115HARNESS JUMPER EEV
116WP76X28405 GE UI Housing
118USER INTERFACE HARNESS
121WP26X31053 GE Main Board
217WP01X20879 GE Scraper 8-18 Ab Hxw 3/8 Snubber
227MUA TRAY FILTER
229GROMMET THERMISTOR SMALL
318WP26X28044 GE Indoor Thermistor
320GROMMET THERMISTOR LARGE
321GROMMET DUCT
322WP26X28043 GE Outdoor Thermistor
9998THERMOSTAT KIT
9999PM MINI MANUAL AND WIRING
9999PM OWNERS AND INSTALL
