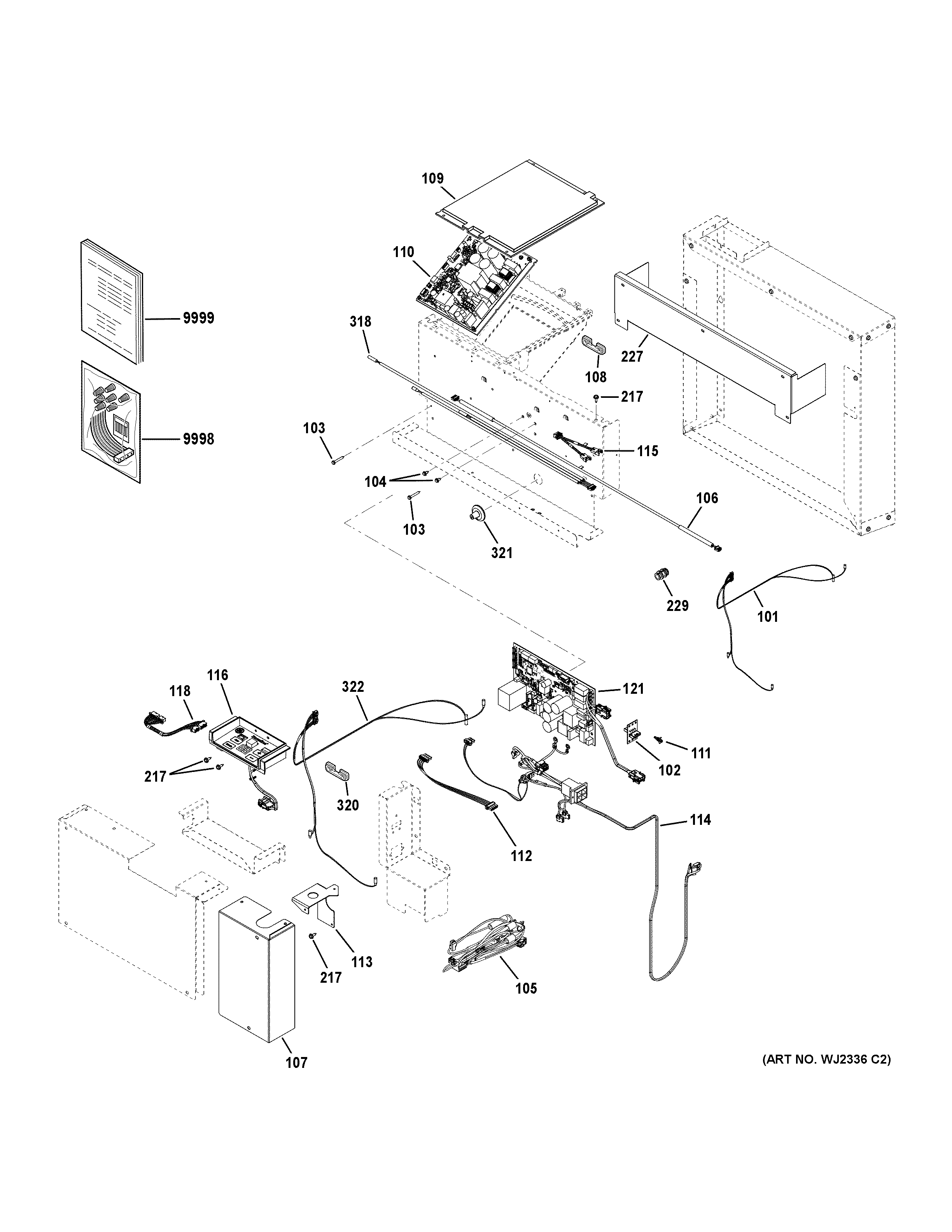

AZ9VH12EBMH1 CONTROL PARTS

Products

Position	Product
101	THERMISTOR HARNESS
102	WP26X28064 GE Personality Board
103	WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
104	WP01X21546 GE Screw 10-32 AB HXW 7/16 S
105	MAIN HARNESS PIGTAIL & COMPRESSOR
106	HARNESS GEA3
107	JUNCTION BOX COVER
108	GROMMET INVERTER
109	INVERTER BOARD LID
110	WP26X31433 GE Vertical Inverter MUA Hardware and Software
111	WP01X28070 GE Standoff Clip
112	PERSONALITY JUMPER
113	WP65X28069 GE Bracket Cable Connector
114	HARNESS MAIN 265V
115	HARNESS JUMPER EEV
116	WP76X28405 GE UI Housing
118	USER INTERFACE HARNESS
121	WP26X31053 GE Main Board
217	WP01X20879 GE Scraper 8-18 Ab Hxw 3/8 Snubber
227	MUA TRAY FILTER
229	GROMMET THERMISTOR SMALL
318	WP26X28044 GE Indoor Thermistor
320	GROMMET THERMISTOR LARGE
321	GROMMET DUCT
322	WP26X28043 GE Outdoor Thermistor
9998	THERMOSTAT KIT
9999	PM MINI MANUAL AND WIRING
9999	PM OWNERS AND INSTALL
