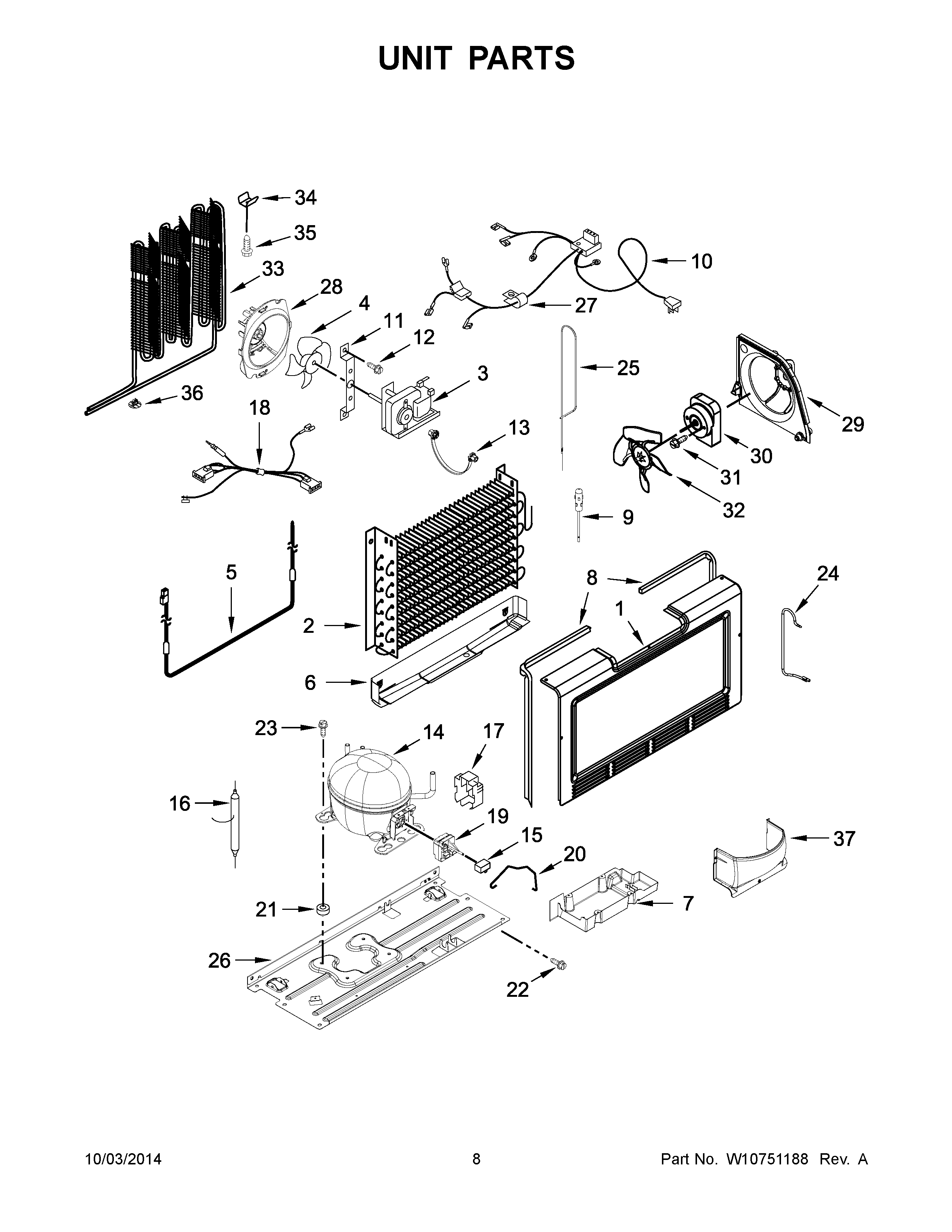

AZB33X18DW00 05 – UNIT PARTS
Written by
in
AZB33X18DW00 05 – UNIT PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
1
MAY W10574307
2
MAY W10574283
3
MAY W10574477
4
Blade, Fan (Evaporator)
5
MAY W10316428
6
MAY W10314195
7
MAY W10574291
8
MAY W10574305
9
THERMISTOR, EVAPORATOR
10
MAY W10572629
11
CLIP, EVAP. MOTOR
12
MAY 3-80732-014
13
MAY W10150583
14
COMPRESSOR
15
MAY W10350564
16
Drier
17
MAY W10574450
18
MAY W10695434
19
DEVICE, START
20
MAY W10574470
21
MAY 2183042
22
MAY W10142287
23
MAY 489473
24
MAY W10574571
25
MAY W10574281
26
PAN, COMPRESSOR
27
MAY 549193
28
MAY W10574469
29
MAY 2315541
30
MAY 2188875
31
MAY 8533961
32
MAY W10139483
33
MAY W10574289
34
CLIP, CONDENSER
35
MAY W10142294
36
CLIP, BOTTOM COVER
37
MAY W10574581
←
