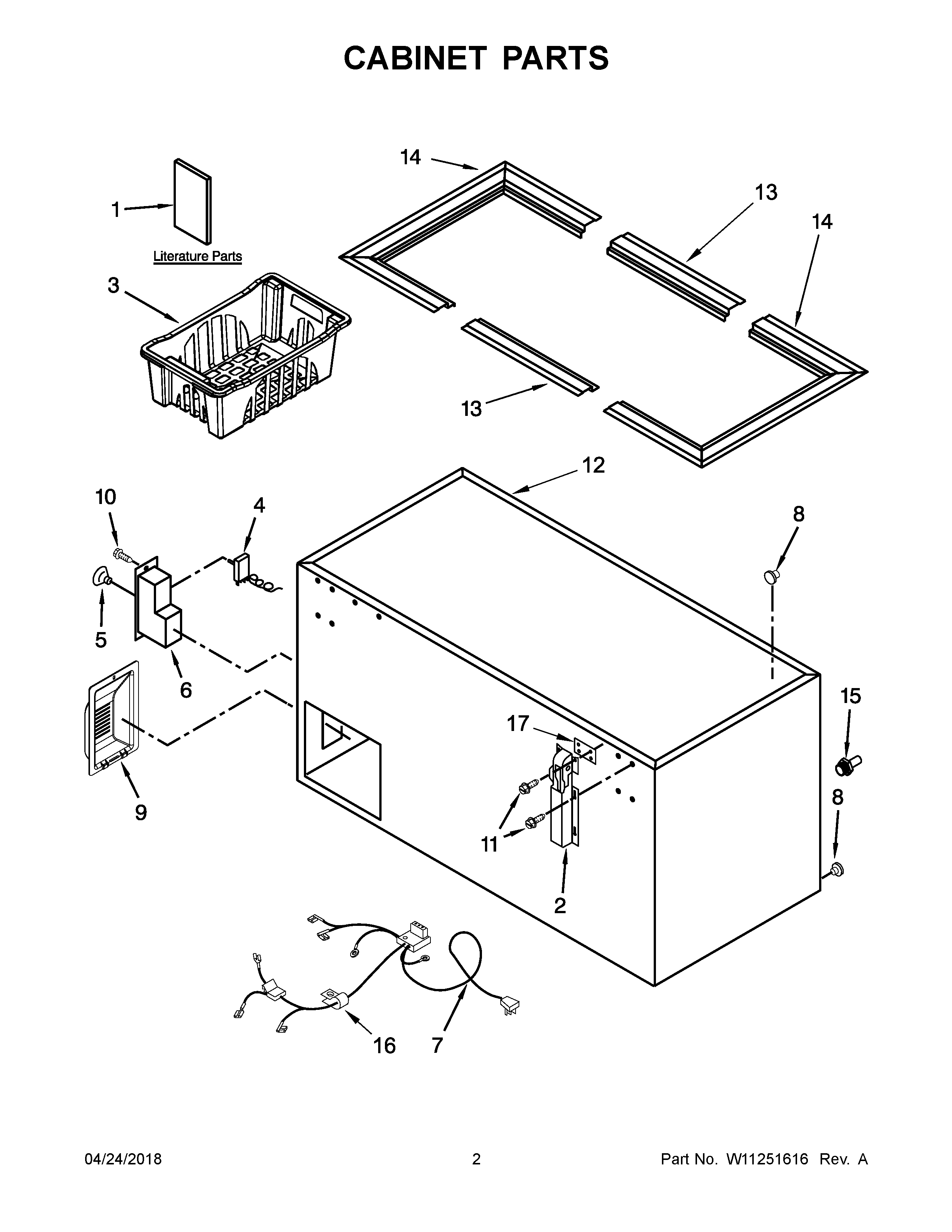

AZC31T22DW01 02 – CABINET PARTS

AZC31T22DW01 02 – CABINET PARTS

Written by

in

AZC31T22DW01 02 – CABINET PARTS

Products

PositionProduct
1AMAY W11115934
1BTECH SHEET
1USE & CARE GUIDE
2HINGE ASSEMBLY
3BASKET
4MAY 4-35940-001
5KNOB, THERMOSTAT
6BOX, CONTROL
7HARNESS, WIRING
8MAY 3-33211-001
9PANEL, ACCESS
10MAY 3-24004-049
11MAY 7101P356-60
12LINER (NOT A SERVICEABLE PART)
13STRIP, REAR BREAKER
14STRIP, END BREAKER
15MAY 1-33178
16MAY 549193
17MAY 1-17548-006
