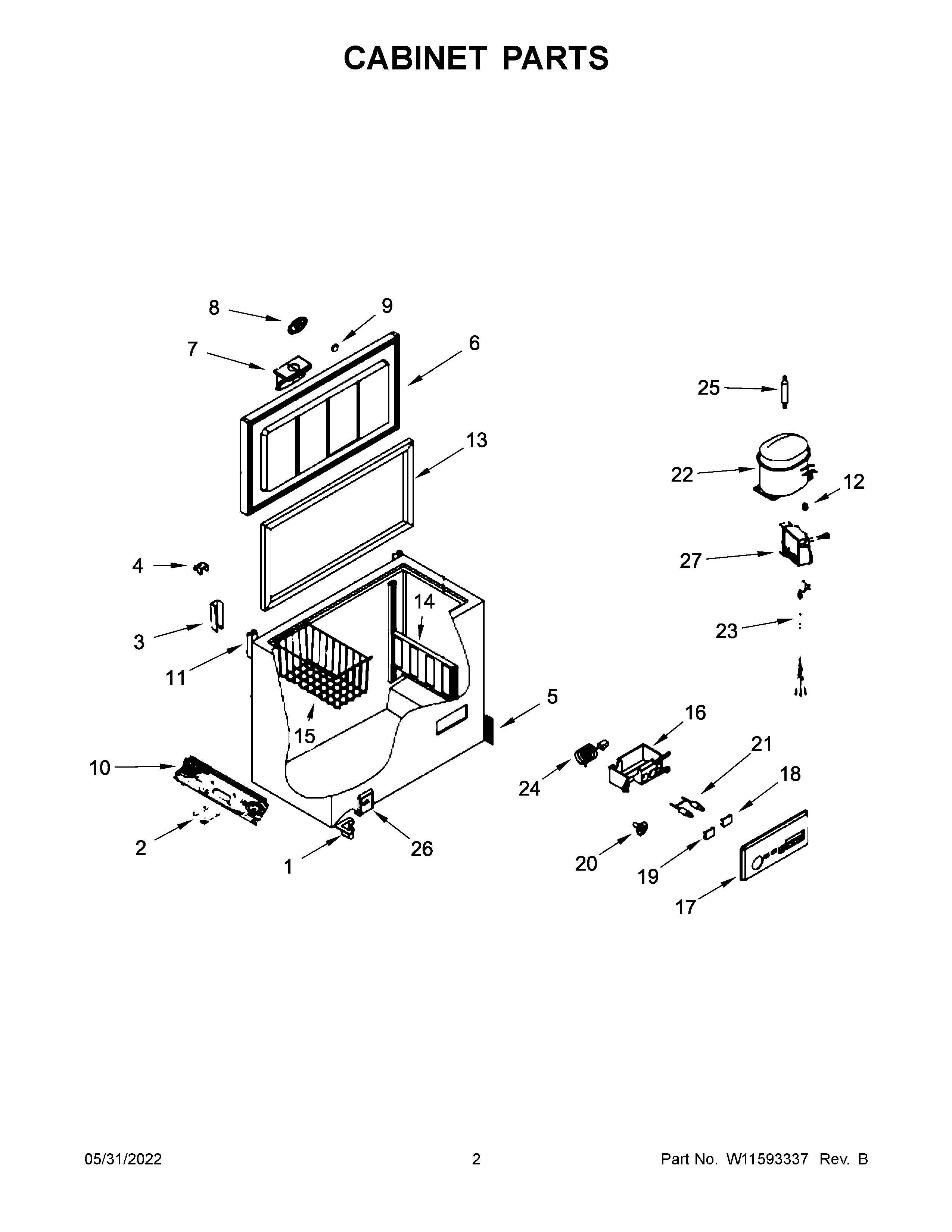

AZC5216LW 02 – CABINET PARTS

Products

Position	Product
1	W11591689 Whirlpool Lever Foot
2	W11591957 Whirlpool Cabinet Roller
3	W11591958 Whirlpool Cover
4	W11591959 Whirlpool Cover Assembly
5	W11591960 Whirlpool Unit Cover
6	DOR-FIP (DROP SHIP)
7	W11591981 Whirlpool Handle Assembly
8	W11428492 Whirlpool Refrigerator Nameplate
9	W11591983 Whirlpool Handle Plug
10	W11591985 Whirlpool Frame
11	W11598144 Whirlpool Door Hinge
12	COMPRESSOR DAMPER
13	W11597677 Whirlpool Door Gasket
14	W11593742 Whirlpool Separator Assembly
15	W11597675 Whirlpool Basket
16	W11592036 Whirlpool Control Box
17	W11592037 Whirlpool Overlay
18	LENS (RED)
19	LENS (GREEN)
20	W11592041 Whirlpool Thermostat Knob
21	W11593352 Whirlpool Harness Assembly
22	W11599968 Whirlpool Compressor
23	W11531505 Whirlpool Power Cord
24	W11685637 Whirlpool Refrigerator Thermostat
25	W11109499 Whirlpool Refrigerator Tube
26	W11592064 Whirlpool Drain Plug
27	W11598145 Whirlpool Inverter Box
