AZF33X16DW00 03 – LINER PARTS

AZF33X16DW00 03 – LINER PARTS

Written by

in

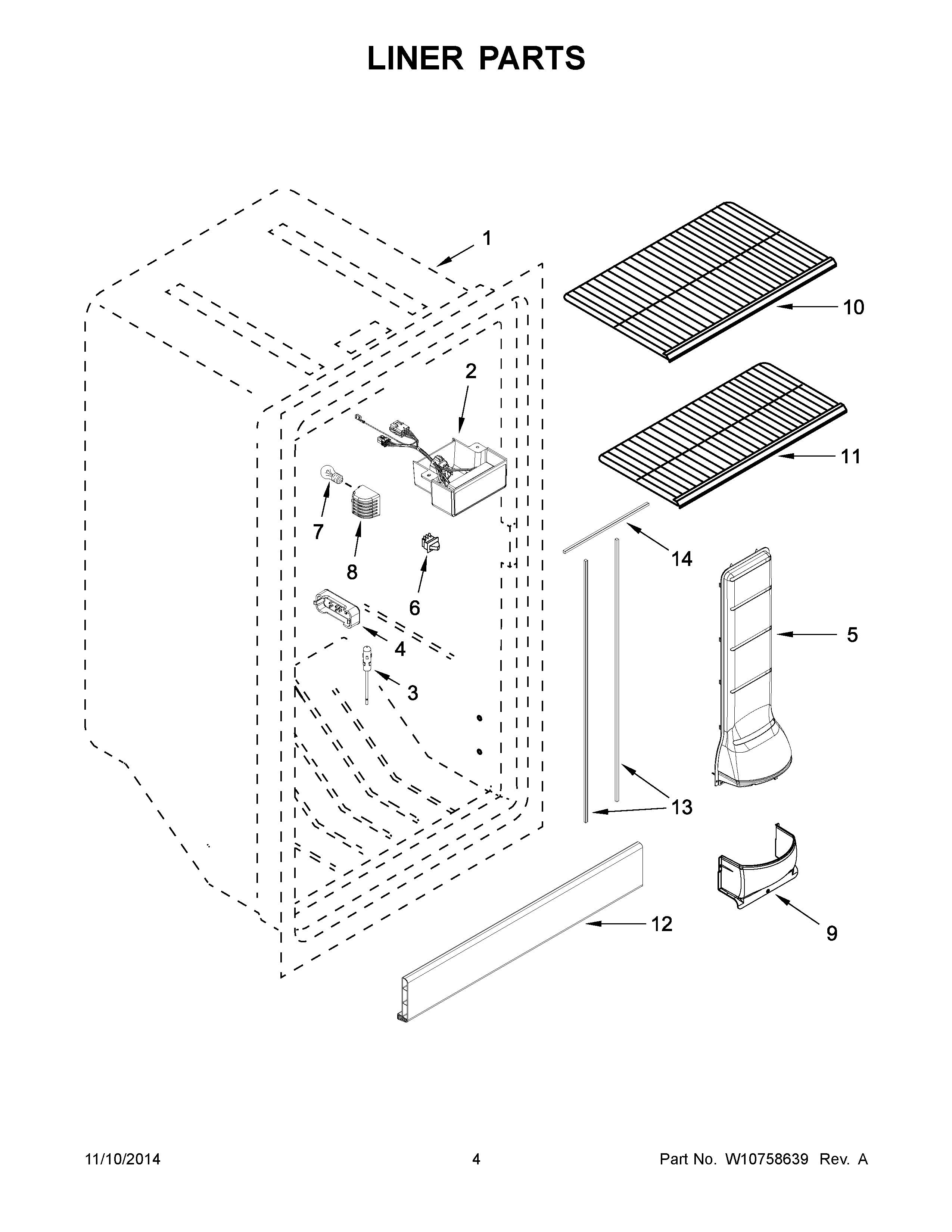

AZF33X16DW00 03 – LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2CONTROL ASSEMBLY
3THERMISTOR
4MAY W10608692
5AIR TOWER
6MAY 2-32164-001
7MAY W10311505
8MAY W10569269
9MAY W10574581
10WIRE SHELF, DEEP
11WIRE SHELF, SHALLOW
12TRIM, DOOR
13GASKET, AIR TOWER (VERTICAL)
14MAY W10574564
