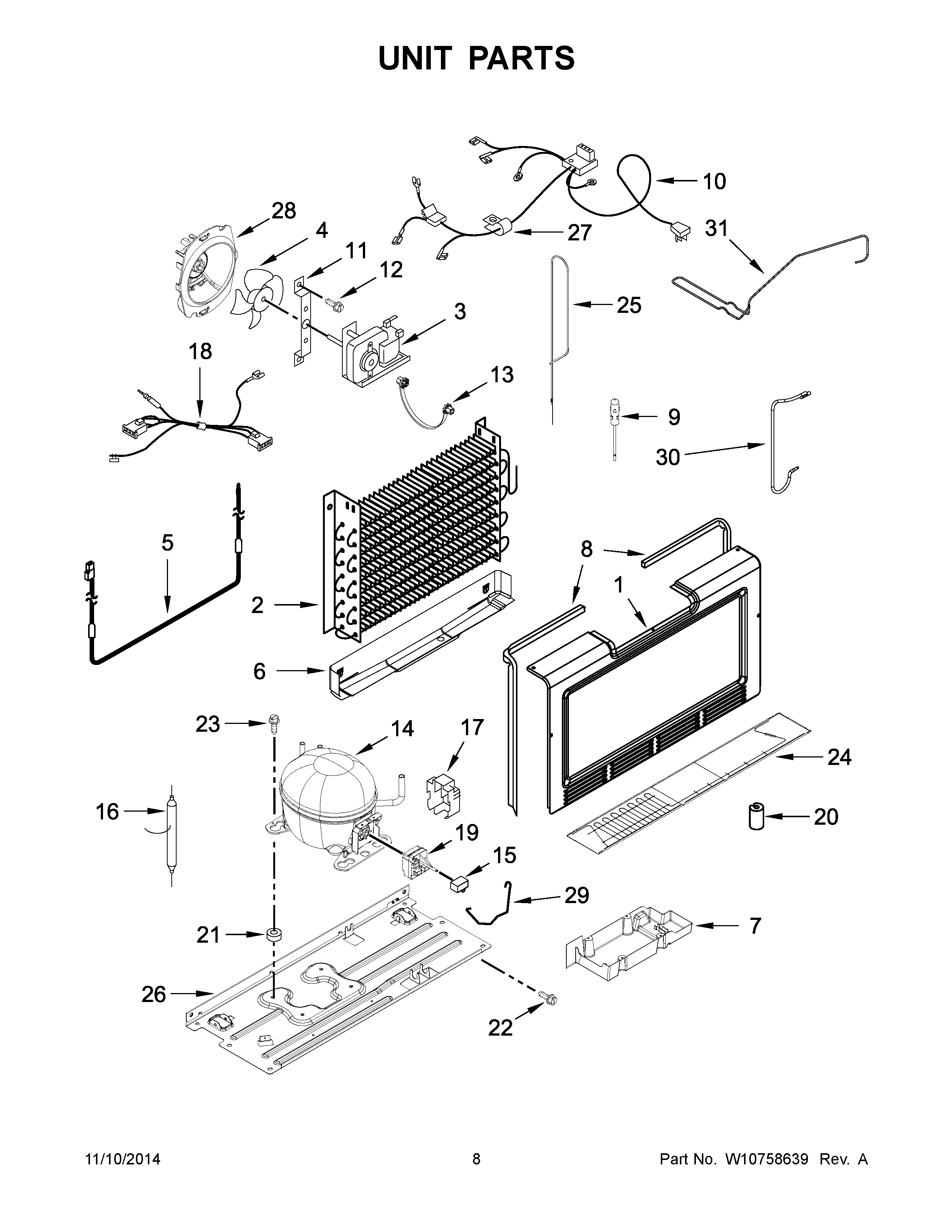

AZF33X16DW00 05 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10574307
2	MAY W10574283
3	MOTOR, FAN
4	Blade, Fan (Evaporator)
5	MAY W10316428
6	MAY W10314195
7	MAY W10574291
8	MAY W10574305
9	THERMISTOR, EVAPORATOR
10	WIRE HARNESS (INCLUDES POWER CORD)
11	CLIP, EVAP. MOTOR
12	MAY 3-80732-014
13	MAY W10150583
14	MAY W10665797
15	MAY W10350564
16	DRIER
17	MAY W10574450
18	HARNESS, EVAPORATOR FAN
19	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
20	GROMMET, CONDENSER
21	MAY 2183042
22	MAY W10142287
23	MAY 489473
26	PAN, COMPRESSOR
27	MAY 549193
28	MAY W10574469
29	MAY W10574470
30	MAY W10574571
31	TUBE, DISCHARGE
