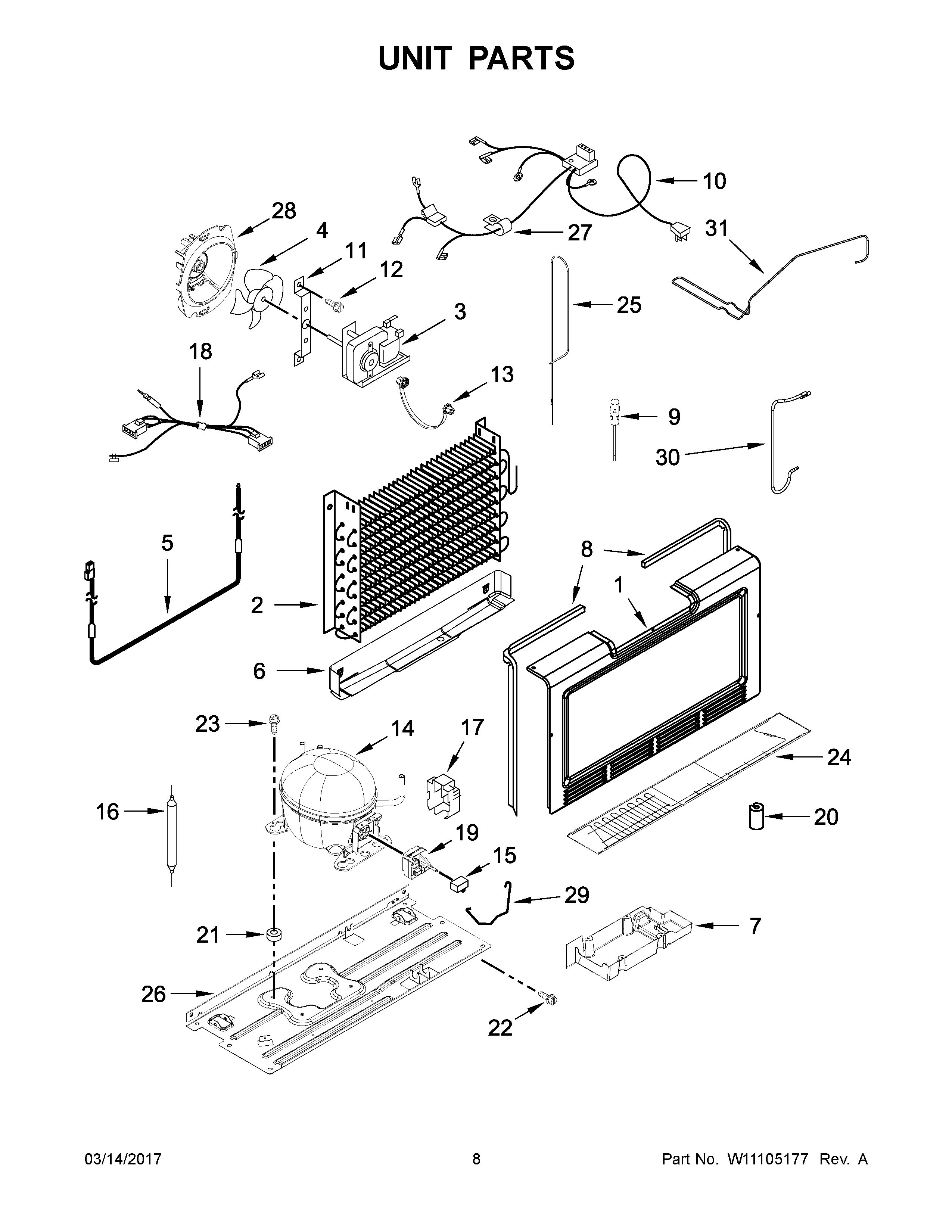

AZF33X16DW01 05 – UNIT PARTSadmin2025-04-26T09:09:26+00:00AZF33X16DW01 05 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | MAY W10574307 |
| 2 | MAY W10574283 |
| 3 | MOTOR, FAN |
| 4 | Blade, Fan (Evaporator) |
| 5 | MAY W10316428 |
| 6 | MAY W10314195 |
| 7 | MAY W10574291 |
| 8 | MAY W10574305 |
| 9 | THERMISTOR, EVAPORATOR |
| 10 | WIRE HARNESS (INCLUDES POWER CORD) |
| 11 | CLIP, EVAP. MOTOR |
| 12 | MAY 3-80732-014 |
| 13 | MAY W10150583 |
| 14 | COMPRESSOR |
| 15 | MAY W10350564 |
| 16 | DRIER |
| 17 | MAY W10574450 |
| 18 | HARNESS, EVAPORATOR FAN |
| 19 | DEVICE, START |
| 20 | GROMMET, CONDENSER |
| 21 | GROMMET, COMPRESSOR |
| 22 | MAY W10142287 |
| 23 | MAY 489473 |
| 26 | PAN, COMPRESSOR |
| 27 | MAY 549193 |
| 28 | MAY W10574469 |
| 29 | MAY W10574470 |
| 30 | SUCTION TUBE |
| 31 | TUBE, DISCHARGE |
