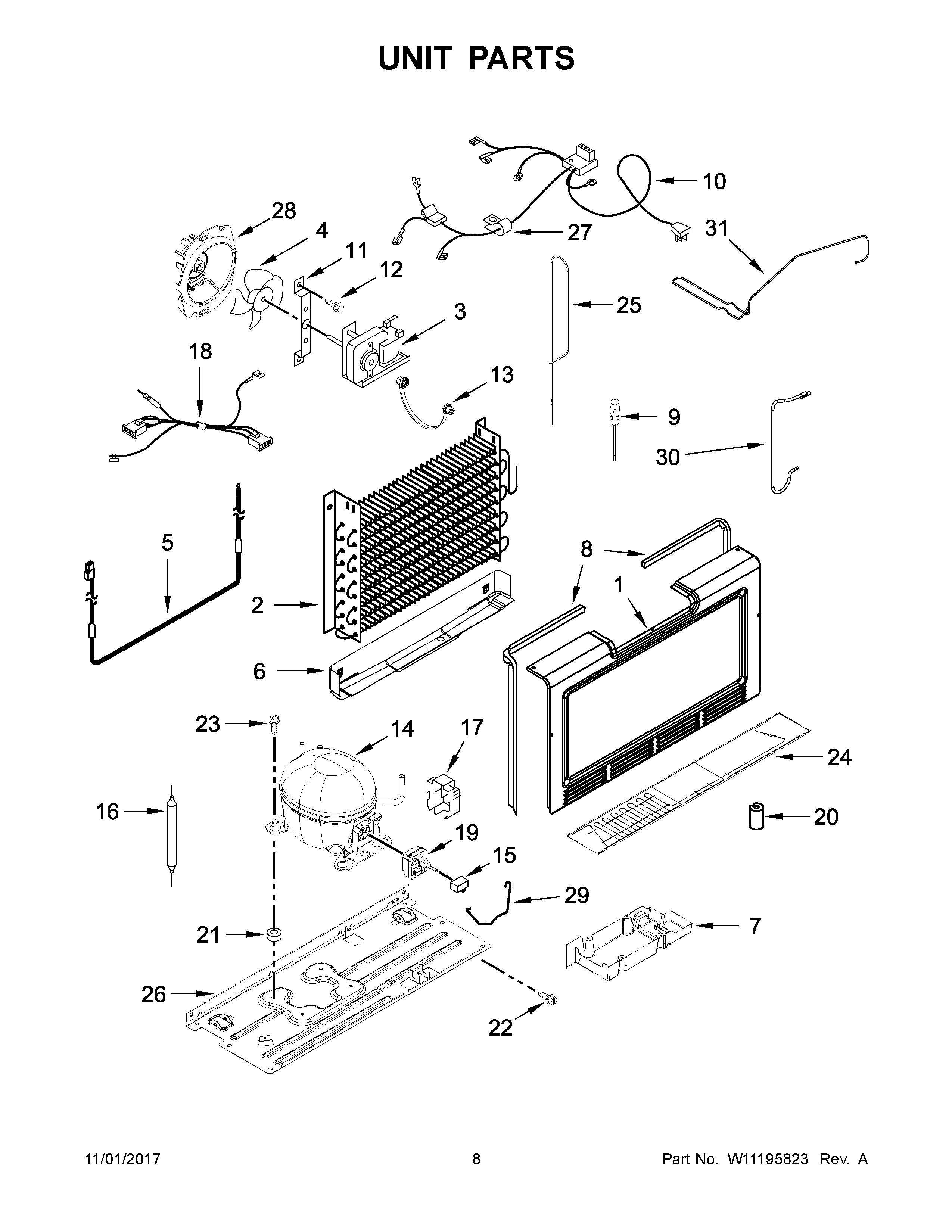

AZF33X16DW02 05 – UNIT PARTS

AZF33X16DW02 05 – UNIT PARTS

Written by

in

AZF33X16DW02 05 – UNIT PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
1MAY W10574307
2MAY W10574283
3MOTOR, FAN
4Blade, Fan (Evaporator)
5MAY W10316428
6MAY W10314195
7MAY W10574291
8MAY W10574305
9THERMISTOR, EVAPORATOR
10MAY W11117597
11CLIP, EVAP. MOTOR
12MAY 3-80732-014
13MAY W10150583
14COMPRESSOR
15MAY W10350564
16DRIER
17MAY W10574450
18HARNESS, EVAPORATOR FAN
19DEVICE, START
20GROMMET, CONDENSER
21GROMMET
22MAY W10142287
23MAY 489473
26PAN, COMPRESSOR
27MAY 549193
28MAY W10574469
29MAY W10574470
30SUCTION TUBE
31TUBE, DISCHARGE
