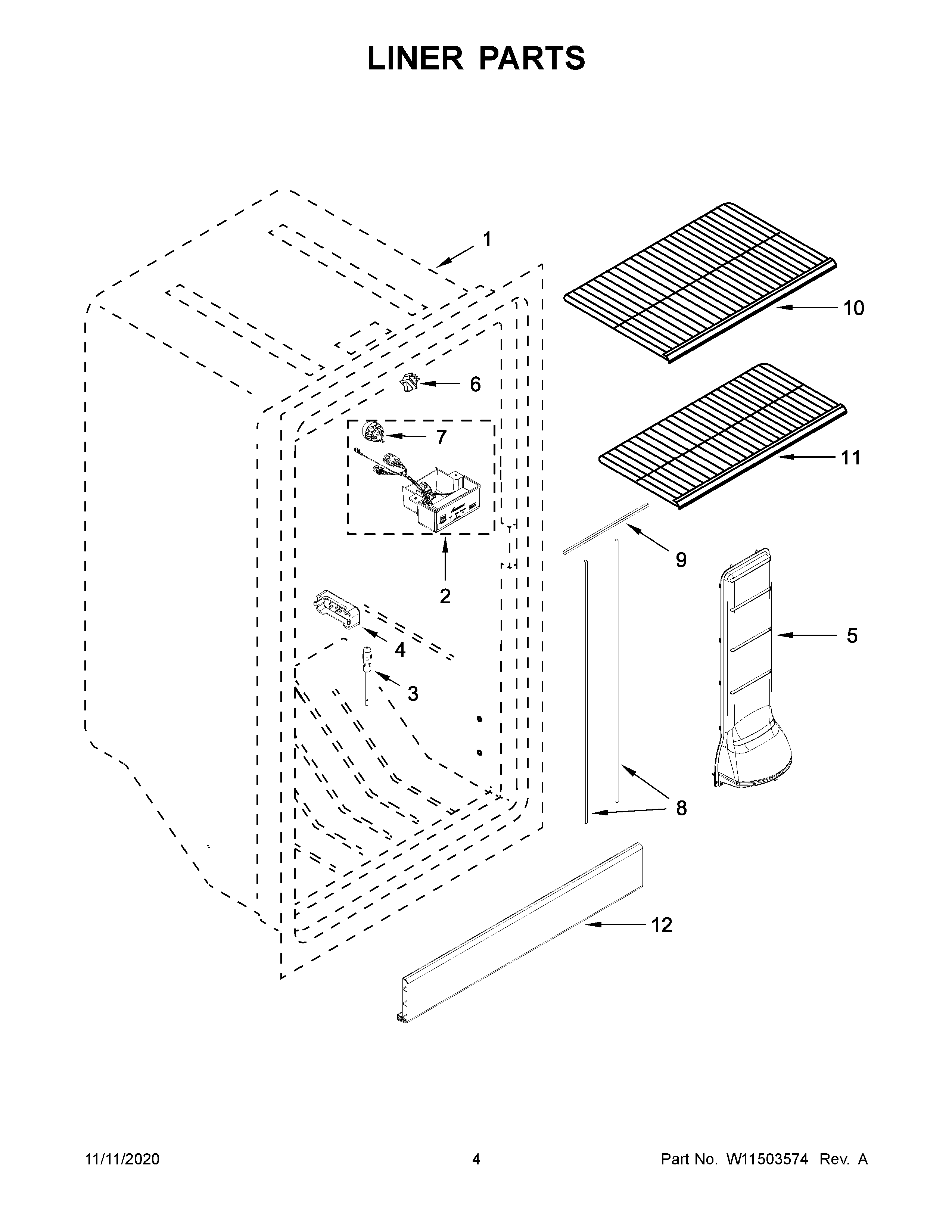

AZF33X16DW06 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11496882 Whirlpool Refrigerator Control Box
3WPW10384183 Whirlpool Thermistor
4W10608692 Whirlpool Refrigerator Cover
5W10574585 Whirlpool Refrigerator Air Tower
6W10755325 Whirlpool Refrigerator Switch
7W11502762 Whirlpool Light Bulb
8WPW10574368 Whirlpool Refrigerator Gasket
10W10836976 Whirlpool Refrigerator Wire Shelf
11W10838567 Whirlpool Wire Shelf
12W10581588 Whirlpool Refrigerator Door Trim
