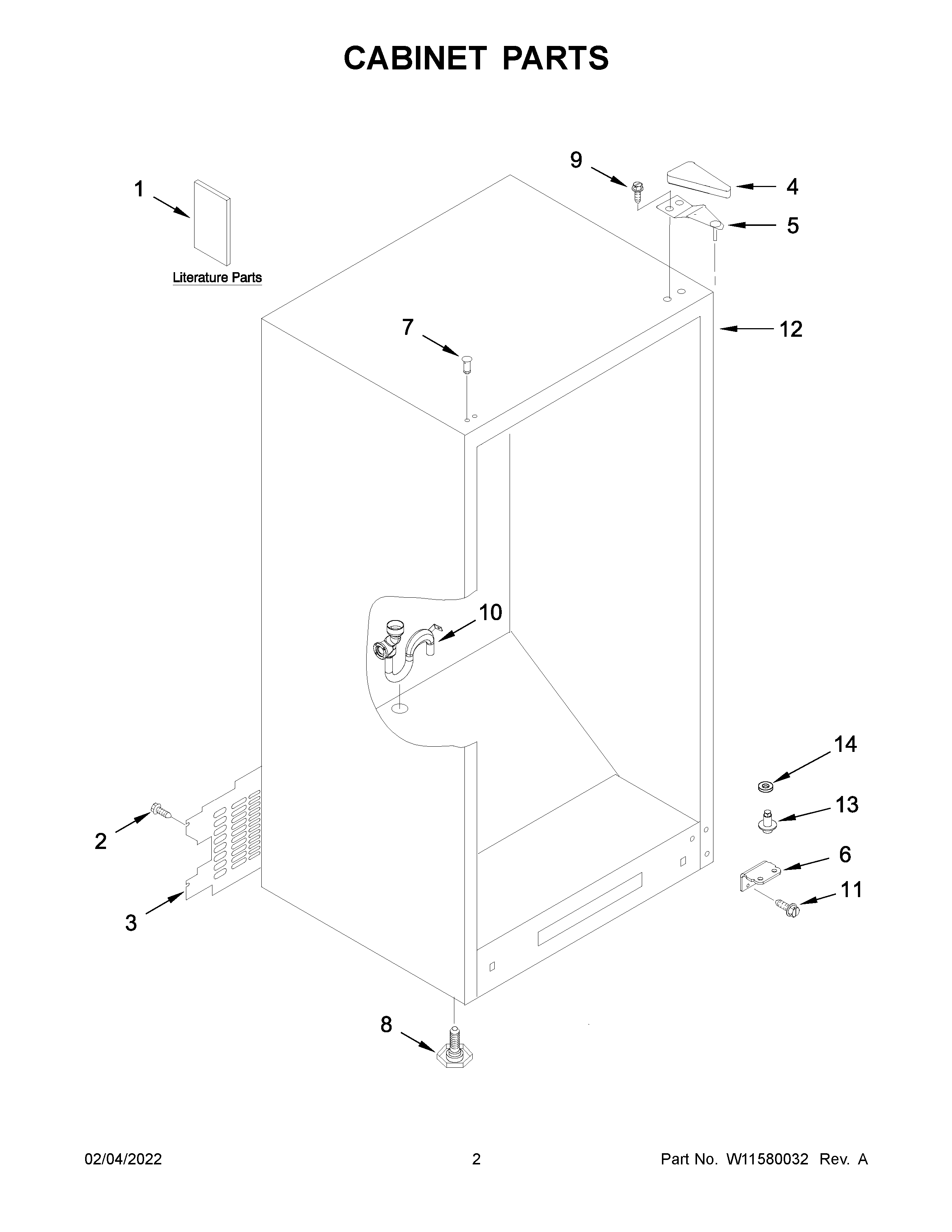

AZF33X16DW08 02 – CABINET PARTS

AZF33X16DW08 02 – CABINET PARTS

Written by

in

AZF33X16DW08 02 – CABINET PARTS

Products

PositionProduct
1OWNER'S MANUAL
1AENERGY GUIDE
1BTECH SHEET
2SCREW
3W11311062 Whirlpool Unit Cover
4WP2213360 Whirlpool Refrigerator Cover
5WP2261963 Whirlpool Refrigerator Door Hinge
6W10574264 Whirlpool Refrigerator Door Hinge
7WPW10520304 Whirlpool Refrigerator Button Plug
8LEG, LEVELER
9WP489497 Whirlpool Screw
10W11673435 Whirlpool Refrigerator Drain Tube
1167006564 Whirlpool Refrigerator Screw
12CABINET (NOT A SERVICEABLE PART)
13W11676609 Whirlpool Hinge Pin
14WP487576 Whirlpool Washer
