AZF33X16DW10 05 – UNIT PARTS

AZF33X16DW10 05 – UNIT PARTS

Written by

in

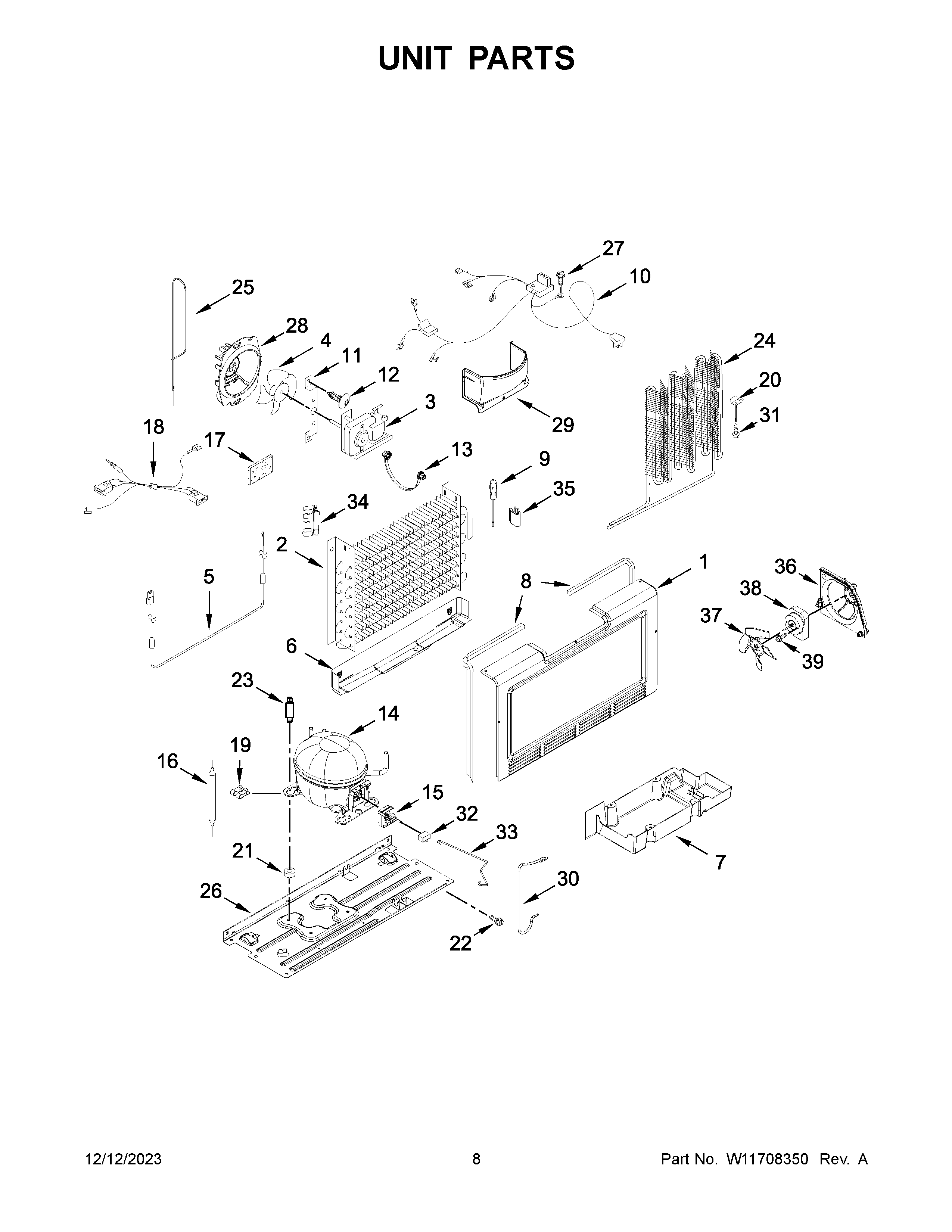

AZF33X16DW10 05 – UNIT PARTS

Products

Position	Product
NI	WPL ARI452EC28D0377515D463154590795D64A
1	W11551256 Whirlpool Refrigerator Evaporator Cover
2	W11572047 Whirlpool Refrigerator Evaporator
2A	W11504450 Whirlpool Refrigerator Coupler
3	W11499658 Whirlpool Refrigerator Evaporator Motor
4	WP2169142 Whirlpool Fan Blade
5	W11562215 Whirlpool Refrigerator Heater
6	W11562216 Whirlpool Shield
7	W10574291 Whirlpool Refrigerator Drip Pan
8	WPW10574368 Whirlpool Refrigerator Gasket
9	WPW10384183 Whirlpool Thermistor
10	W11744514 Whirlpool Wire Harness
11	CLIP, EVAPORATOR MOTOR
12	SCREW
13	W11690160 Whirlpool Grommet
14D	W11506635 Whirlpool Refrigerator Valve Coupler
14C	W11506622 Whirlpool Refrigerator Coupler
14B	W11504431 Whirlpool Microwave Coupler
14A	W11504420 Whirlpool Microwave Coupler
14	W11547313 Whirlpool Refrigerator Compressor
15	W11524472 Whirlpool Refrigerator Start Device
16	W11109499 Whirlpool Refrigerator Tube
16B	W11504448 Whirlpool Refrigerator Coupler
17	W11553819 Whirlpool Refrigerator Insulation
18	W11741458 Whirlpool Harness
19	W10697017 Whirlpool Clip
20	W10683556 Whirlpool Refrigerator Clip
21	WPW10169124 Whirlpool Refrigerator Grommet
22	BOLT
23	SCREW
24A	W11578570 Whirlpool Refrigerator Coupler
24B	W11506623 Whirlpool Refrigerator Coupler
24	W11507065 Whirlpool Refrigerator Condenser
25	EXCHANGER, HEAT (NOT SERVICED)
26	W10574278 Whirlpool Refrigerator Compressor Pan
27	SCREW
28	W10574469 Whirlpool Refrigerator Scroll Fan
29	W10574581 Whirlpool Refrigerator Evaporator Cover
30	TUBE, SUCTION
31	W11544659 Whirlpool Refrigerator Screw
32	W11631831 Whirlpool Capacitor
33	WPL W11379613
34	WPL W11452250
35	W11546684 Whirlpool Refrigerator Clip
36	W11605794 Whirlpool Air Baffle
37	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
38	W11127829 Whirlpool Refrigerator Condenser Motor
39	W11501418 Whirlpool Refrigerator Screw
