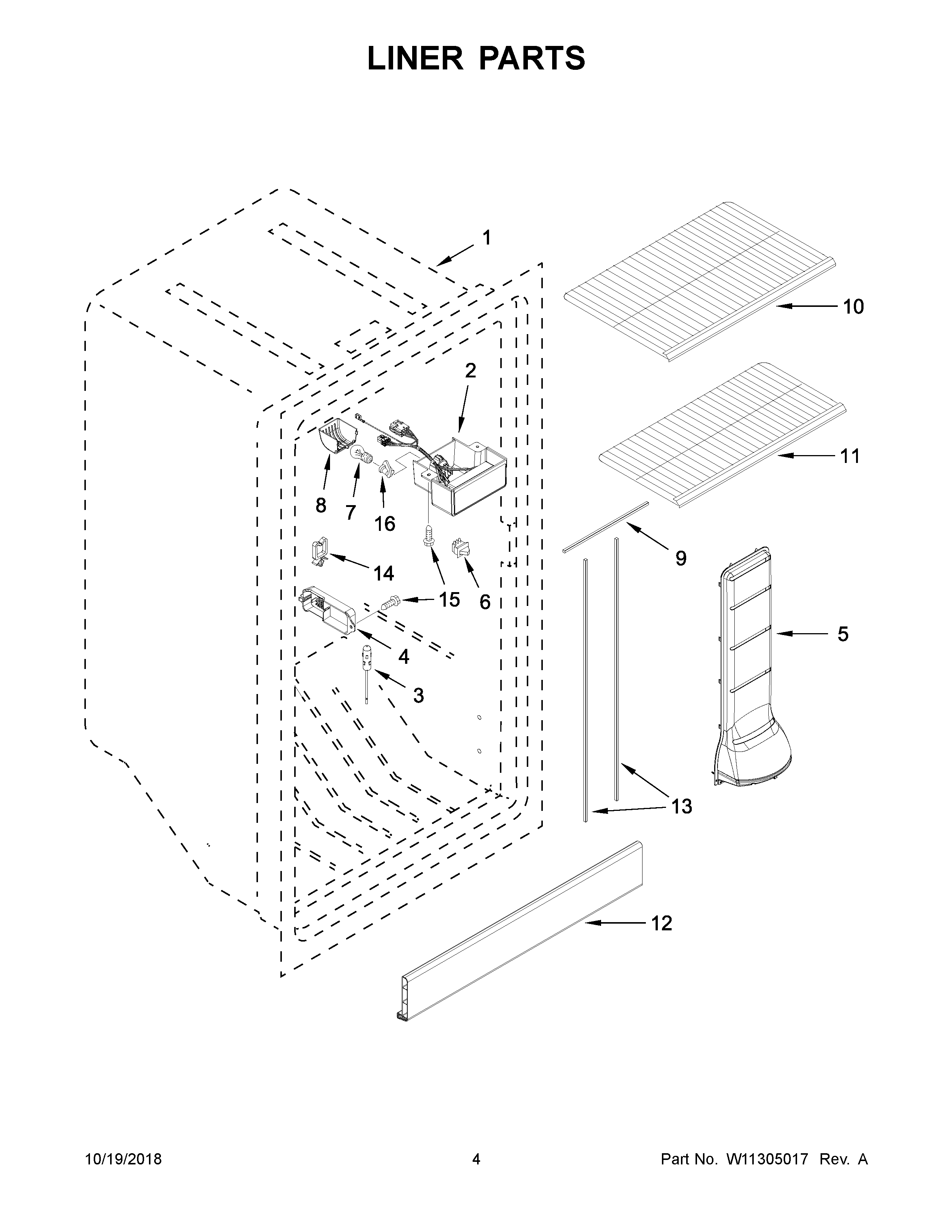

AZF33X18DW03 03 – LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2CONTROL ASSEMBLY
3THERMISTOR
4MAY W10608692
5MAY W10574583
6SWITCH, LIGHT
7BULB, LIGHT
8MAY W10569269
9MAY W10574564
10WIRE SHELF, DEEP
11WIRE SHELF, SHALLOW
12TRIM, DOOR
13MAY W10574368
14CLIP
15SCREW
16SOCKET, LIGHT
