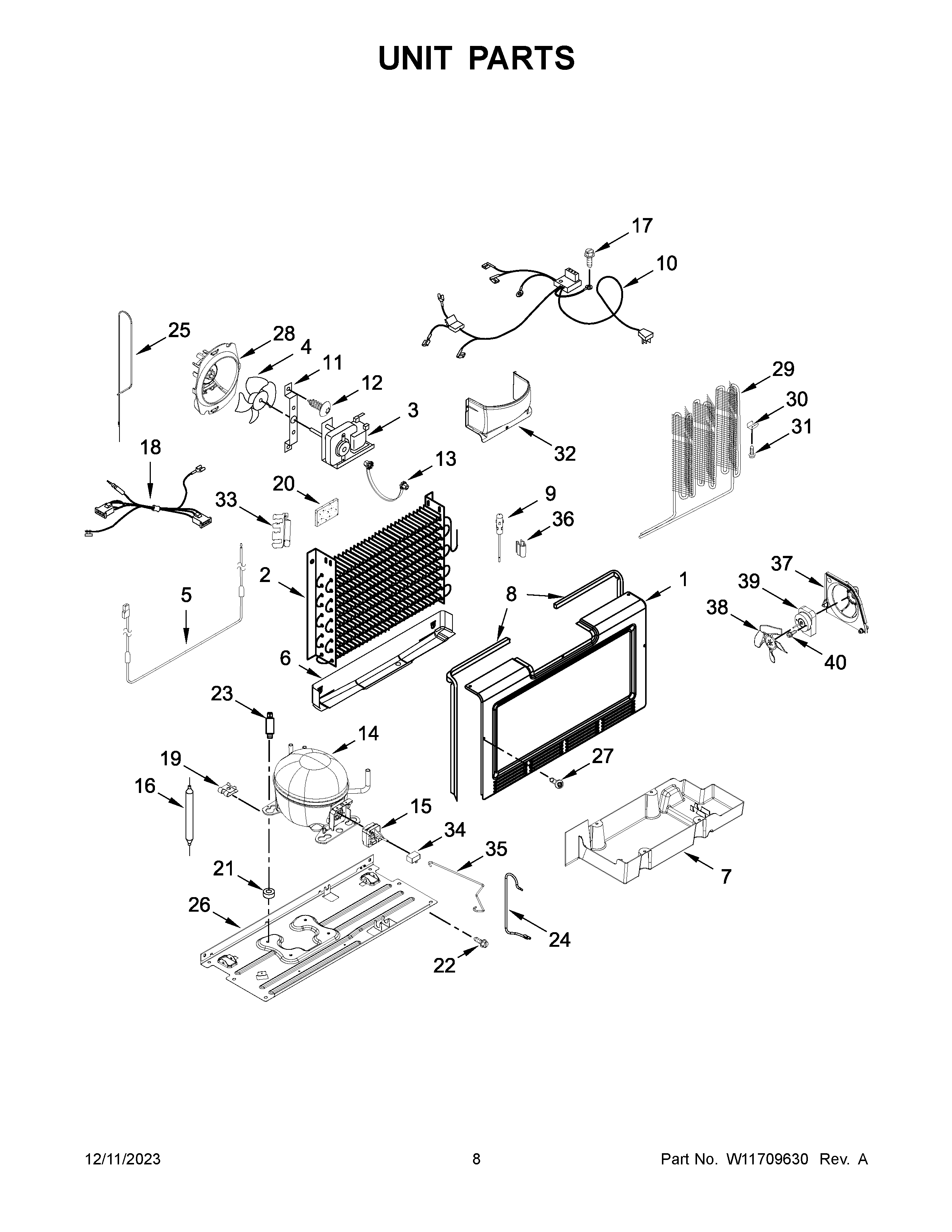

AZF33X18DW08 05 – UNIT PARTS

AZF33X18DW08 05 – UNIT PARTS

Written by

in

AZF33X18DW08 05 – UNIT PARTS

Products

Position	Product
NI	WPL ARI8F8B2CB7C36118F5202FD746085E8C35
1	W11551256 Whirlpool Refrigerator Evaporator Cover
2A	W11504450 Whirlpool Refrigerator Coupler
2	W11572047 Whirlpool Refrigerator Evaporator
3	W11499658 Whirlpool Refrigerator Evaporator Motor
4	WP2169142 Whirlpool Fan Blade
5	W11562215 Whirlpool Refrigerator Heater
6	W11562216 Whirlpool Shield
7	W10574291 Whirlpool Refrigerator Drip Pan
8	WPW10574368 Whirlpool Refrigerator Gasket
9	WPW10384183 Whirlpool Thermistor
10	W11744514 Whirlpool Wire Harness
11	CLIP, EVAPORATOR MOTOR
12	SCREW
13	W11690160 Whirlpool Grommet
14	W11547313 Whirlpool Refrigerator Compressor
14D	W11506635 Whirlpool Refrigerator Valve Coupler
14C	W11506622 Whirlpool Refrigerator Coupler
14A	W11504420 Whirlpool Microwave Coupler
14B	W11504431 Whirlpool Microwave Coupler
15	W11524472 Whirlpool Refrigerator Start Device
16B	W11504448 Whirlpool Refrigerator Coupler
16	W11109499 Whirlpool Refrigerator Tube
17	SCREW
18	W11741458 Whirlpool Harness
19	W10697017 Whirlpool Clip
20	W11553819 Whirlpool Refrigerator Insulation
21	WPW10169124 Whirlpool Refrigerator Grommet
22	BOLT
23	SCREW
24	TUBE, SUCTION
25	EXCHANGER, HEAT (NOT SERVICED)
26	W10574278 Whirlpool Refrigerator Compressor Pan
27	SCREW (WHITE)
28	W10574469 Whirlpool Refrigerator Scroll Fan
29B	W11506623 Whirlpool Refrigerator Coupler
29	W11507065 Whirlpool Refrigerator Condenser
29A	W11578570 Whirlpool Refrigerator Coupler
30	W10683556 Whirlpool Refrigerator Clip
31	W11544659 Whirlpool Refrigerator Screw
32	W10574581 Whirlpool Refrigerator Evaporator Cover
33	WPL W11452250
34	W11631831 Whirlpool Capacitor
35	WPL W11379613
36	W11546684 Whirlpool Refrigerator Clip
37	W11605794 Whirlpool Air Baffle
38	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
39	W11127829 Whirlpool Refrigerator Condenser Motor
40	W11501418 Whirlpool Refrigerator Screw
