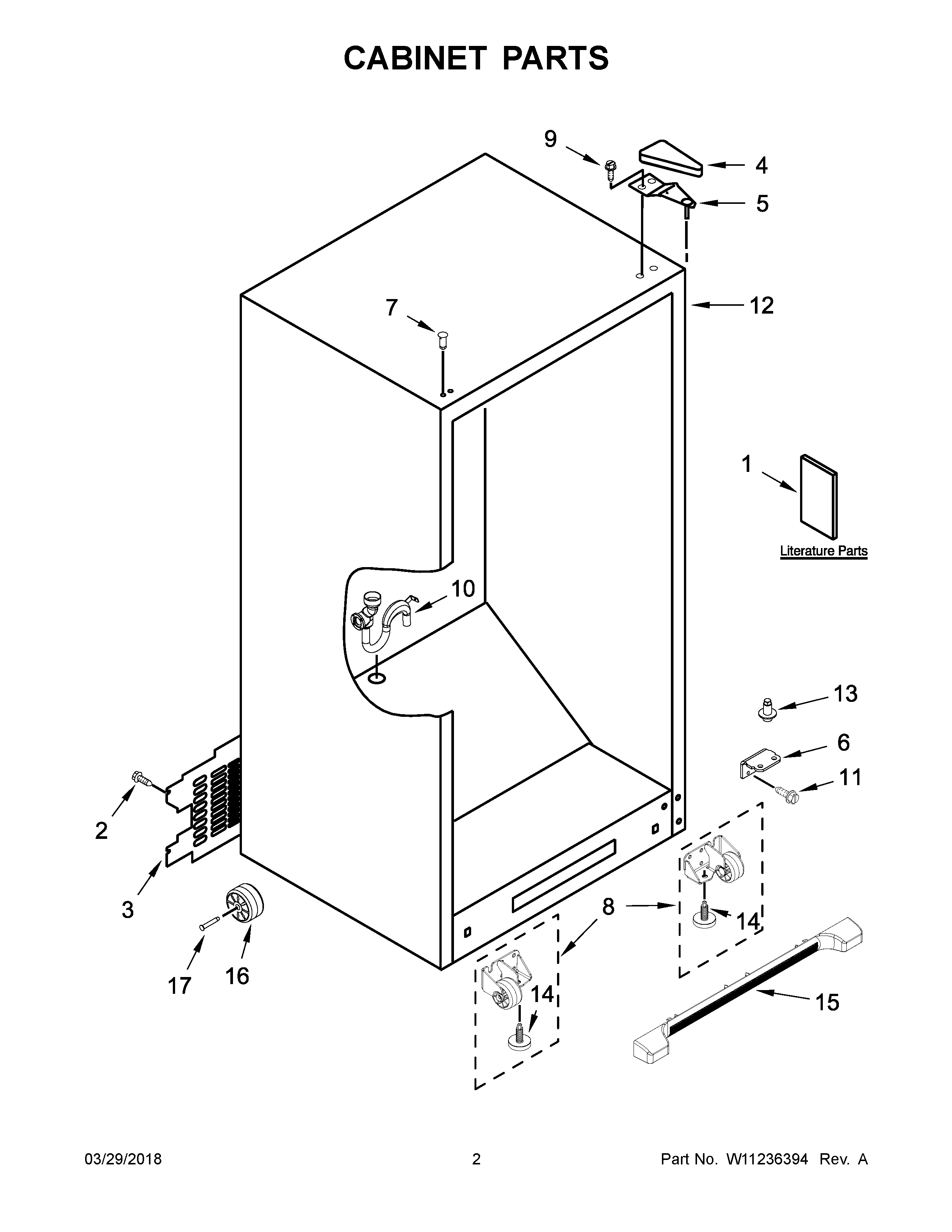

AZF33X20DW03 02 – CABINET PARTS

AZF33X20DW03 02 – CABINET PARTS

Written by

in

AZF33X20DW03 02 – CABINET PARTS

Products

Position	Product
1	MAY W10668409
1A	MAY W11115739
1B	MAY W10653921
2	MAY 3-80675-105
3	COVER, UNIT
4	Cover, Hinge (White)
5	MAY 2261963
6	MAY W10574264
7	MAY W10520304
8	ROLLER ASSEMBLY (RIGHT HAND)
8A	ROLLER ASSEMBLY (LEFT HAND)
9	Screw (4)
10	MAY W10717194
11	SCREW
12	LINER (NOT A SERVICEABLE PART)
13	MAY W10574325
14	Brake, Foot
15	ASSEMBLY, GRILLE (WHITE)
16	Roller
17	MAY 2179826
