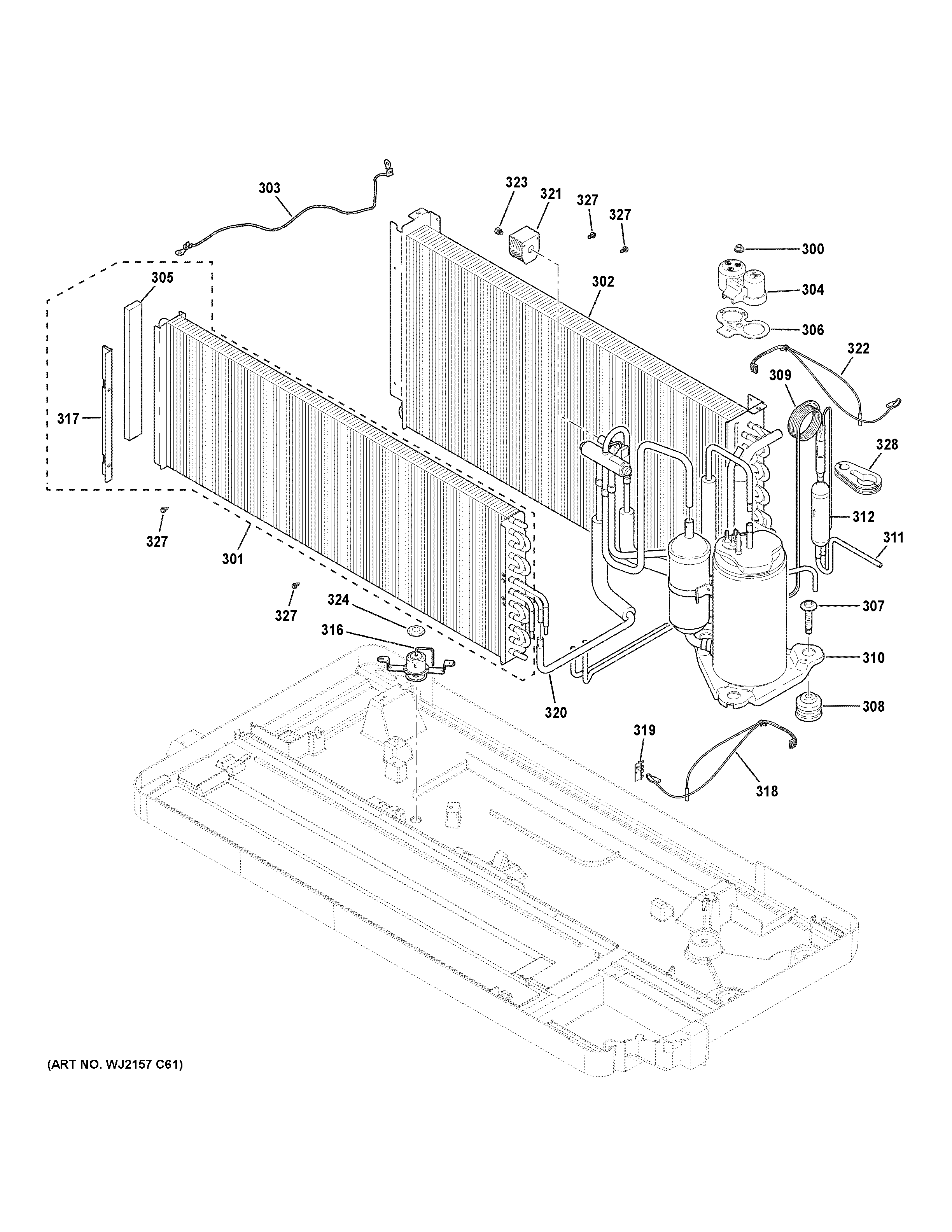

AZHS15DCXXAK1 SEALED SYSTEM

AZHS15DCXXAK1 SEALED SYSTEM

Written by

in

AZHS15DCXXAK1 SEALED SYSTEM

Products

PositionProduct
300NUT TERMINAL COVER COMP
301WP88X25580 GE Indoor Coil Assembly
302WP87X25582 GE Outdoor Coil Assembly
303GROUND JUMPER
304COVER TERMINAL COMP
305WP60X20971 GE Foam Insulation Coil Side
306GASKET COMPRESSOR COVER
307WP01X21031 GE Screw M8-125 B Shoulder 46 mm
308WP01X27593 GE Compressor Grommet
309CAP TUBE ASM
310COMPRESSOR ASM 15K 230V
311WP56X20988 GE Process Condenser Tube
312WP56X22820 GE Dryer
316WP26X21581 GE Thermostatic Drain Valve
317WP01X23065 GE Coil Clip Left
318WP26X20982 GE Air Conditioner Thermistor
319WP65X25533 GE Thermistor Holder
320REVERSING VALVE ASM SERV 15K PTAC
321SOLENOID VALVE REVERSING
322WP26X24986 GE Thermistor Assembly
323WP01X21861 GE Solenoid Screw
324WP01X20980 GE Base Pan Plug
327WP01X21546 GE Screw 10-32 AB HXW 7/16 S
328WP60X20972 GE Foam Tube Isolator
