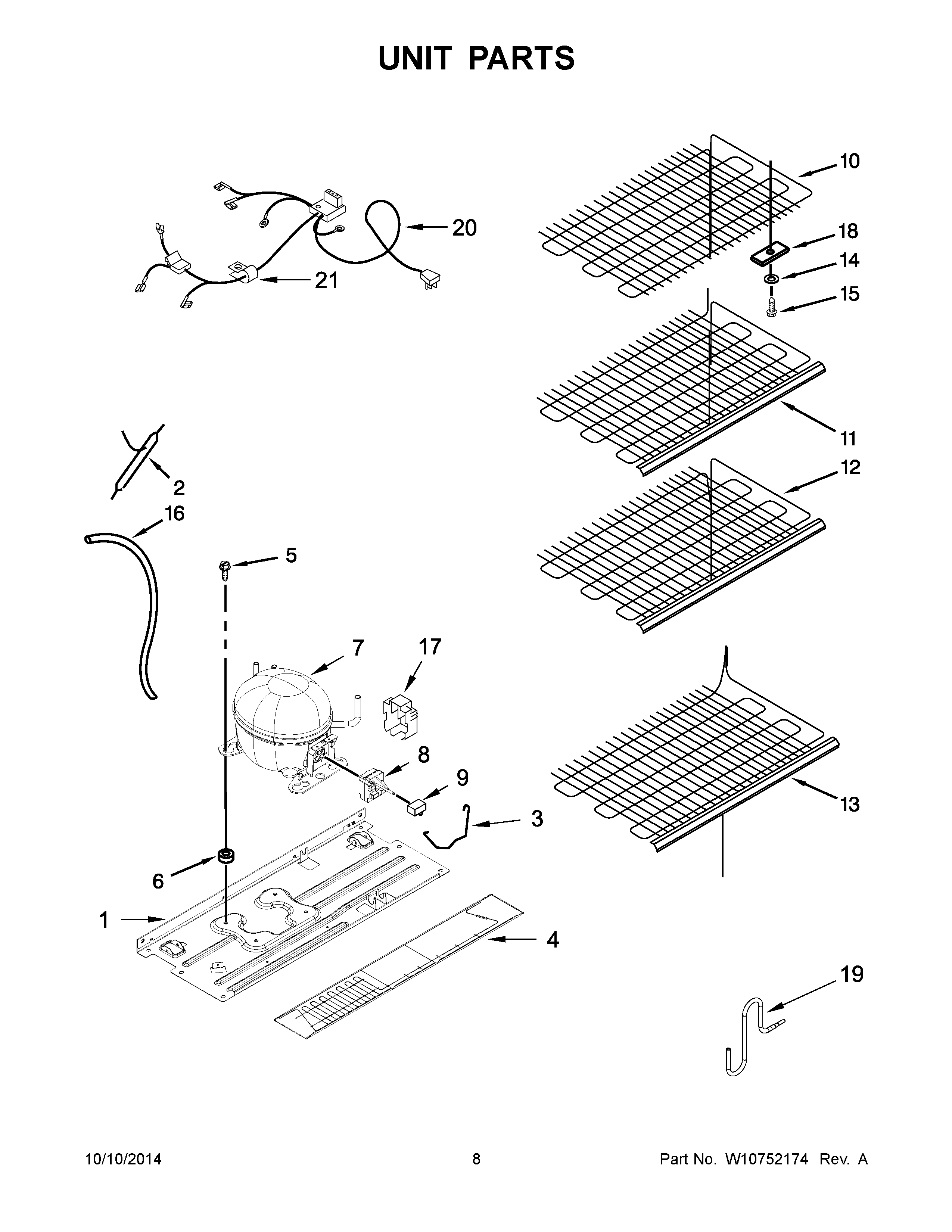

AZM12X17DW00 05 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
1	PAN, COMPRESSOR
2	DRIER
3	MAY W10574470
4	MAY W10682881
5	MAY 489473
6	MAY 2183042
7	MAY W10634057
8	DEVICE, START
9	MAY W10350564
10	MAY W10574642
11	MAY W10574641
12	MAY W10574640
13	MAY W10574639
14	MAY 3-80681-133
15	MAY 3-24004-109
16	MAY W10661497
17	MAY W10574450
18	MAY 1-80308-101
19	MAY W10574659
20	WIRE HARNESS (INCLUDES POWER CORD)
21	MAY 549193
