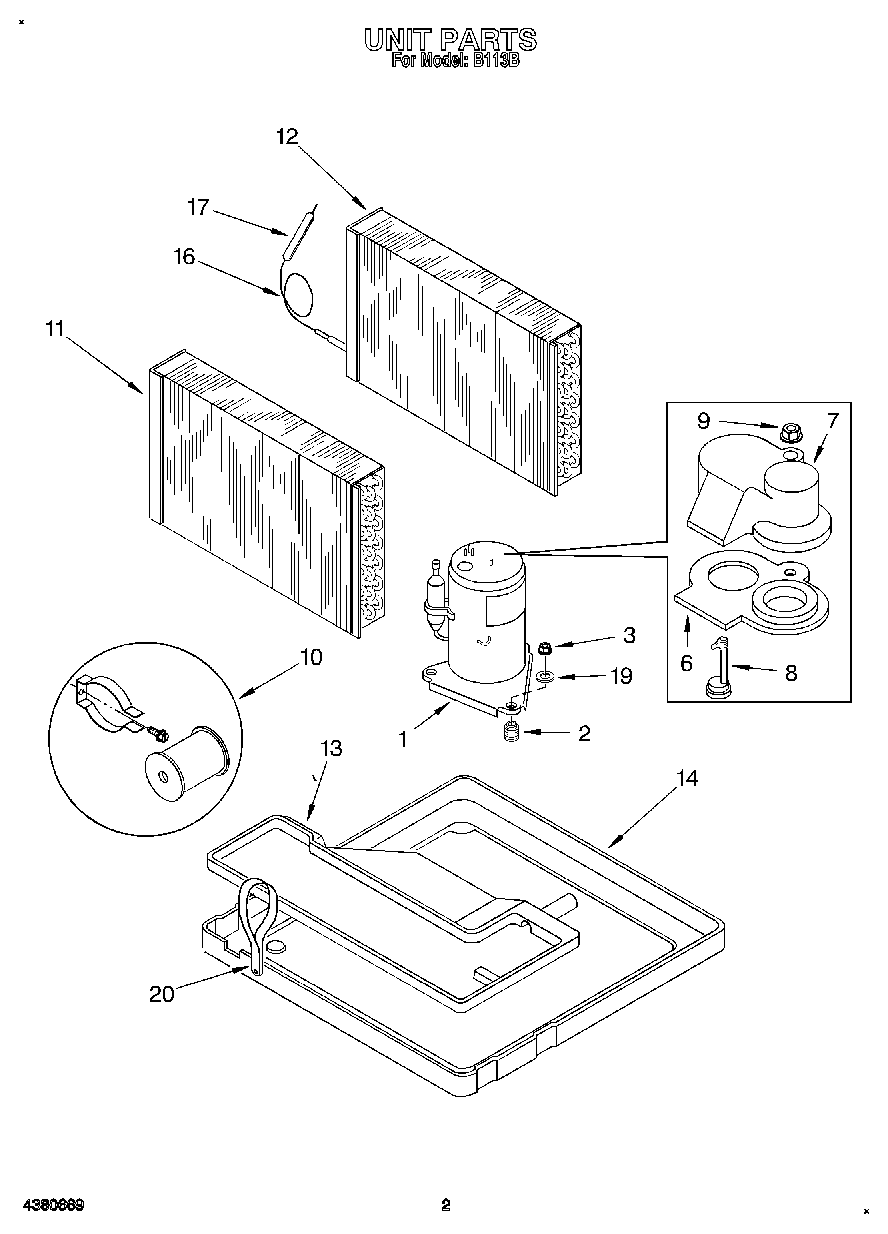

B113B 02 – UNIT, LITERATURE

Products

Position	Product
	Repair Parts List
	Wiring Diagram
	Installation Instructions (Trim Kit)
	Owners Guide
	Tech Sheet
1	Compressor
2	Grommet, Compressor Mounting (3)
3	Nut (3)
6	Gasker, Cover
7	Cover, Terminal
8	Overload
9	Nut, Cover
10	Kit-Starter
11	Evaporator
12	Condenser
13	Pan, Drain
14	Base
16	Tube, Capillary (Cut to 35“)
17	Drier
19	Washer, Compressor Mounting
20	Strap, Base
