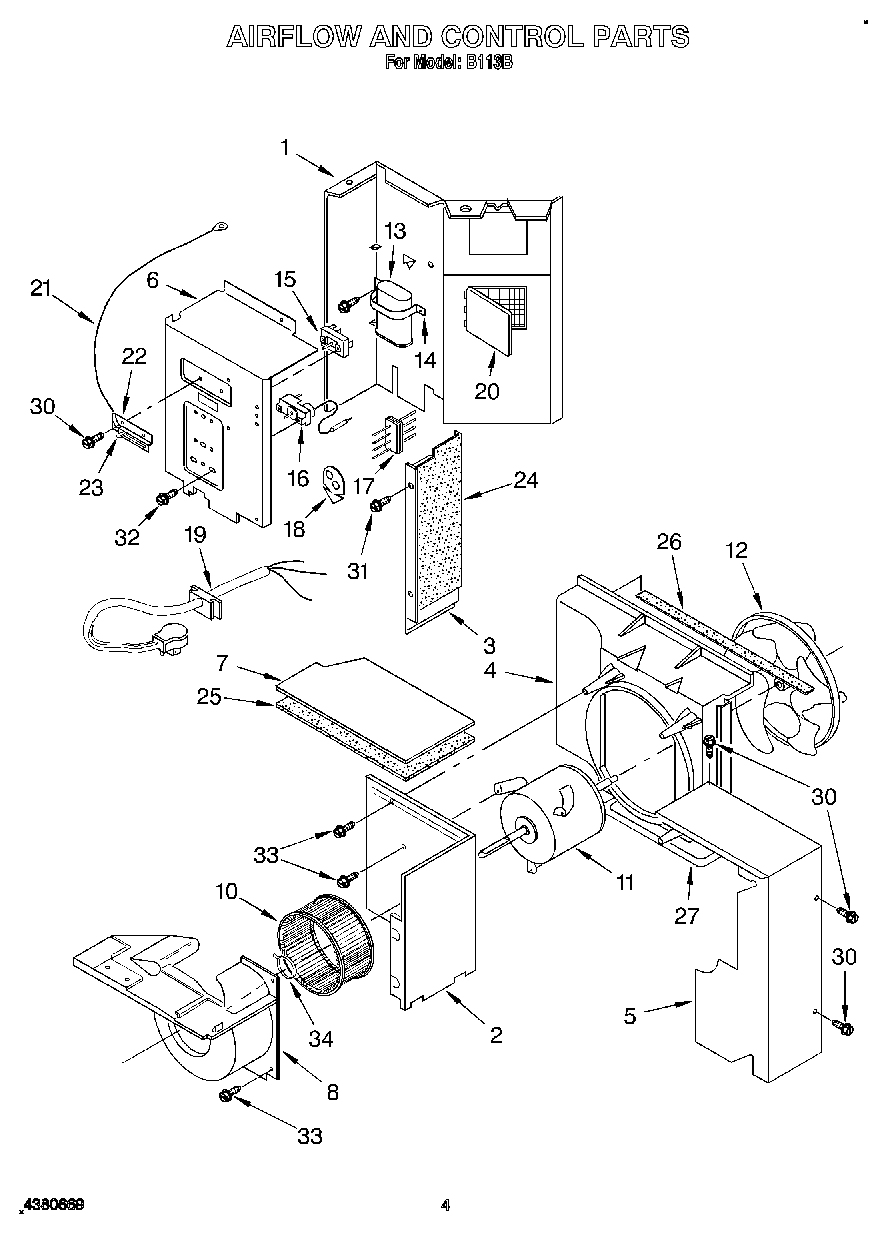

B113B 03 – AIRFLOW AND CONTROL

B113B 03 – AIRFLOW AND CONTROL

Written by

in

B113B 03 – AIRFLOW AND CONTROL

Products

PositionProduct
1Bulkhead, Control
2Bulkhead, Air
3Divider, Vertical
4Shroud, Condenser
5Baffle, Shroud
6Panel, Control
7Cover, Top
8Scroll
10Wheel, Blower
11Motor, Fan
12Blade, Fan
13Capacitor
14Strap, Capacitor
15Switch, Rotary
16Control, Temp.
17Harness
18Clip, Control Bulb
19Cord, Power
20Door, Vent
21Actuator, Vent
22Retainer, Actuator
23Arm, Actuator
24Insulation, Divider Wall
25Insulation, Cover
26Seal, Shroud
27Seal, Shroud Bottom ((Left Side))
27Seal, Shroud Bottom ((Right Side))
30SCREW
31Screw
32Screw
33WP3387230 Whirlpool Screw
34Clamp, Blower Wheel
