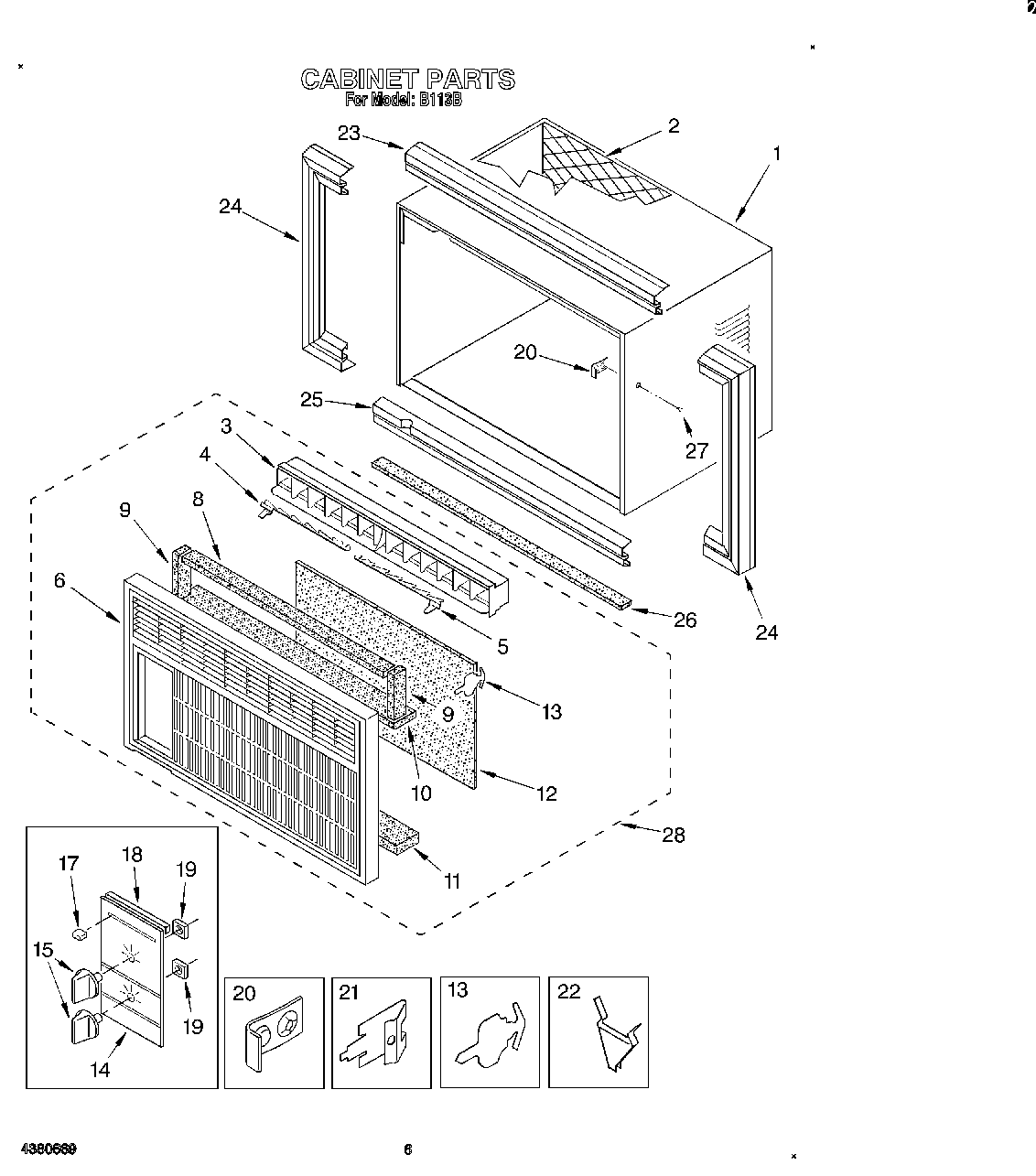

B113B 04 – CABINETadmin2025-04-26T12:04:58+00:00B113B 04 – CABINET
Products
| Position | Product |
|---|
| 1 | Cabinet |
| 2 | Panel, Rear |
| 3 | Louver (W/Links) |
| 4 | Link, Louver (LH) |
| 5 | Link, Louver (RH) |
| 6 | Frame, Front |
| 8 | Seal, Front (Top) |
| 9 | Seal, Front (Sides) (2) |
| 10 | Seal, Front (Mullion) |
| 11 | Seal, Front (Bottom) |
| 12 | Filter, Air |
| 13 | Clip, Filter (2) |
| 14 | Escutcheon |
| 15 | Knob, Control |
| 17 | Knob, Slide |
| 18 | Seal, Escutcheon |
| 19 | Spacer, Escutcheon (2) |
| 20 | Clip, Front Lock |
| 21 | Clip, Front |
| 22 | Clip, Link |
| 23 | Trim, Top |
| 24 | Trim, Side (2) |
| 25 | Trim, Bottom |
| 26 | Seal, Bottom |
| 27 | SCREW |
| 28 | Front, Complete |
