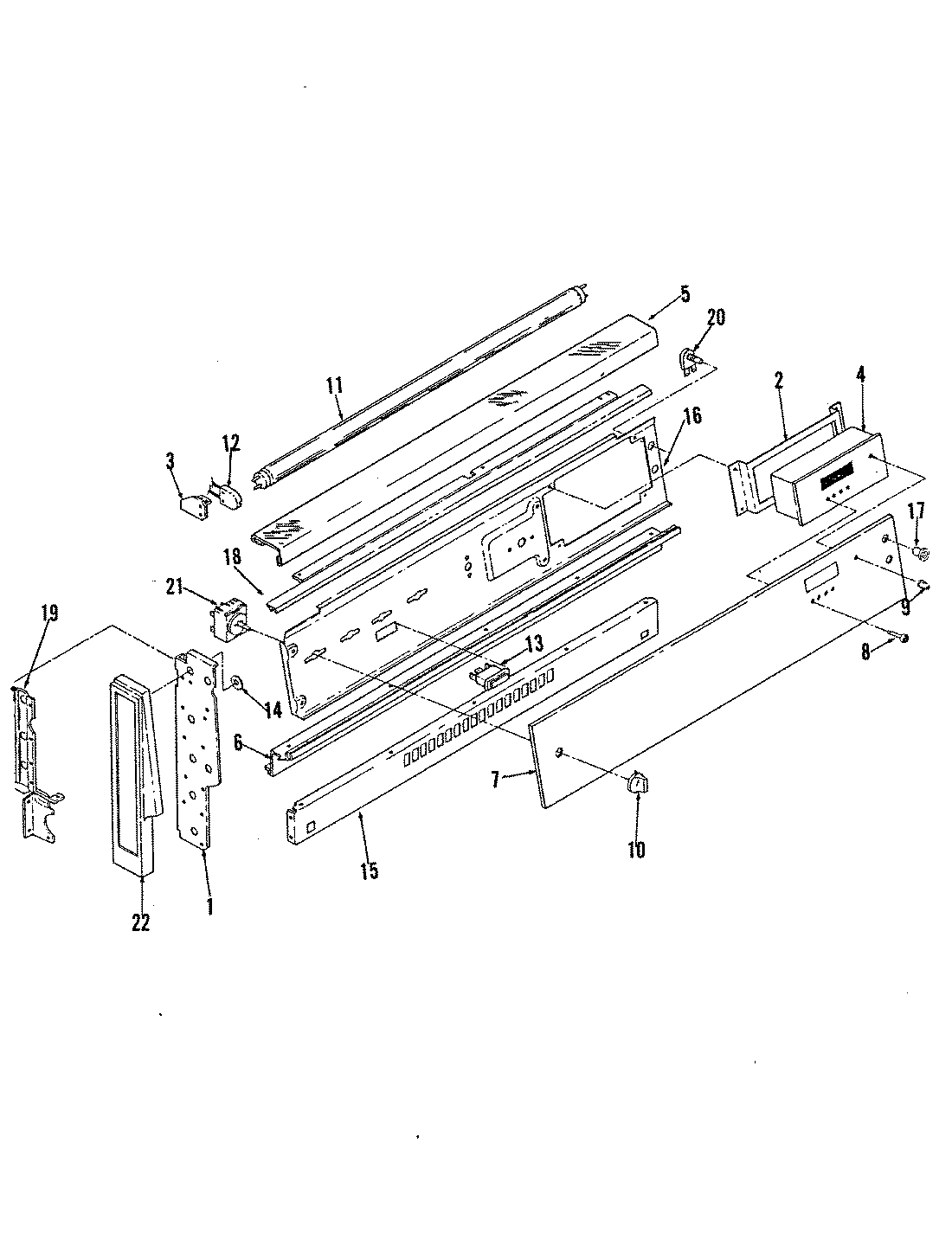

B34FB-3EKXW-ON 02 – CONTROL PANEL

Products

Position	Product
1	MAY 3801F109-34
1	MAY 0284298
1	MAY 1023200
2	MAY 3801F108-45
3	MAY 0284291
4	MAY 7601P047-60
5	MAY 4005F155-20
5	MAY 4005F161-20
5	MAY 7706P166-60
6	MAY 7706P097-60
7	MAY 7902P115-60
8	MAY 7711P171-60
9	MAY 7711P172-60
9	MAY 1360331
10	MAY 7711E106
13	MAY 1406245
14	MAY 1555247
15	MAY 2620W018-90
15	MAY 2620W014-00
16	MAY 3605F091-20
16	MAY 1986341
17	MAY 1762216
19	MAY 1832379
19	MAY 0862418
19	MAY 0862417
20	MAY 1832397
21	MAY 7728E010
21	MAY 1832415
22	MAY 7105P002-60
22	MAY 7715P004-60
22	SCREW
22	MAY 1916961
22	MAY 1916960
22	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
