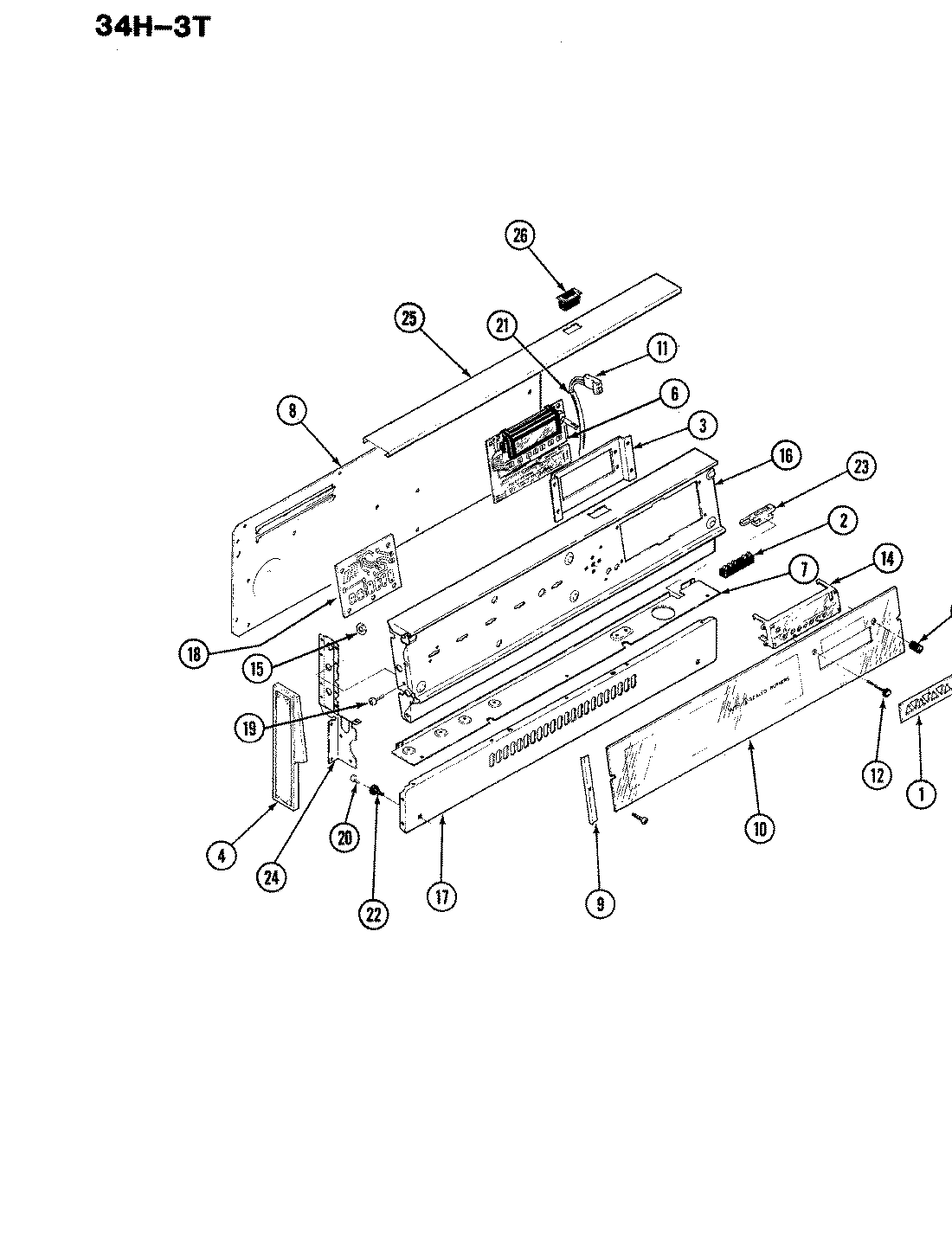

B34HA-3TKX-ON 01 – BACKGUARD PARTS

Products

Position	Product
1	MAY 7740P010-60
1	MAY 7740P016-60
1	MAY 7720P091-60
2	MAY 7401P015-60
3	MAY 3801F118-45
4	MAY 7726P032-60
4	MAY 7726P031-60
4	WP4159193 Whirlpool Screw
5	MAY 7711P335-60
6	MAY 7601P101-60
6	MAY 7601P181-60
6	MAY 7601P155-60
6	MAY 7601P163-60
7	MAY 4005F155-80
8	MAY 4005F369-80
8	WP59002061 Whirlpool Microwave Screw
8	MAY 4005F194-80
9	MAY 7742P009-60
9	MAY 7720P088-60
10	MAY 7910P042-60
10	MAY 7910P129-60
11	MAY 5170A007-60
11	MAY 5170P100-60
11	MAY 5170P067-60
12	MAY 7711P171-60
12	MAY 7711P432-60
13	MAY 7711P431-60
13	MAY 7711P172-60
14	MAY 7730P005-60
14	MAY 7730P002-60
15	WP3195558 Whirlpool Nut
16	MAY 2601W151-84
16	MAY 2601W328-84
17	MAY 7101P058-60
17	MAY 2620W018-90
17	MAY 7430P007-60
17	MAY 7430P004-60
18	MAY 8004P020-60
18	MAY 7428P006-60
18	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
19	MAY 7214P003-60
19	MAY 7101P101-60
21	MAY 7214P005-60
22	MAY 7105P002-60
22	SCREW
23	BUSHING, SNAP
24	MAY 7101P074-60
24	MAY 3807F010-80
24	MAY 3807F012-80
25	MAY 7715P016-60
25	MAY 7101P008-60
26	MAY 7403P102-60
