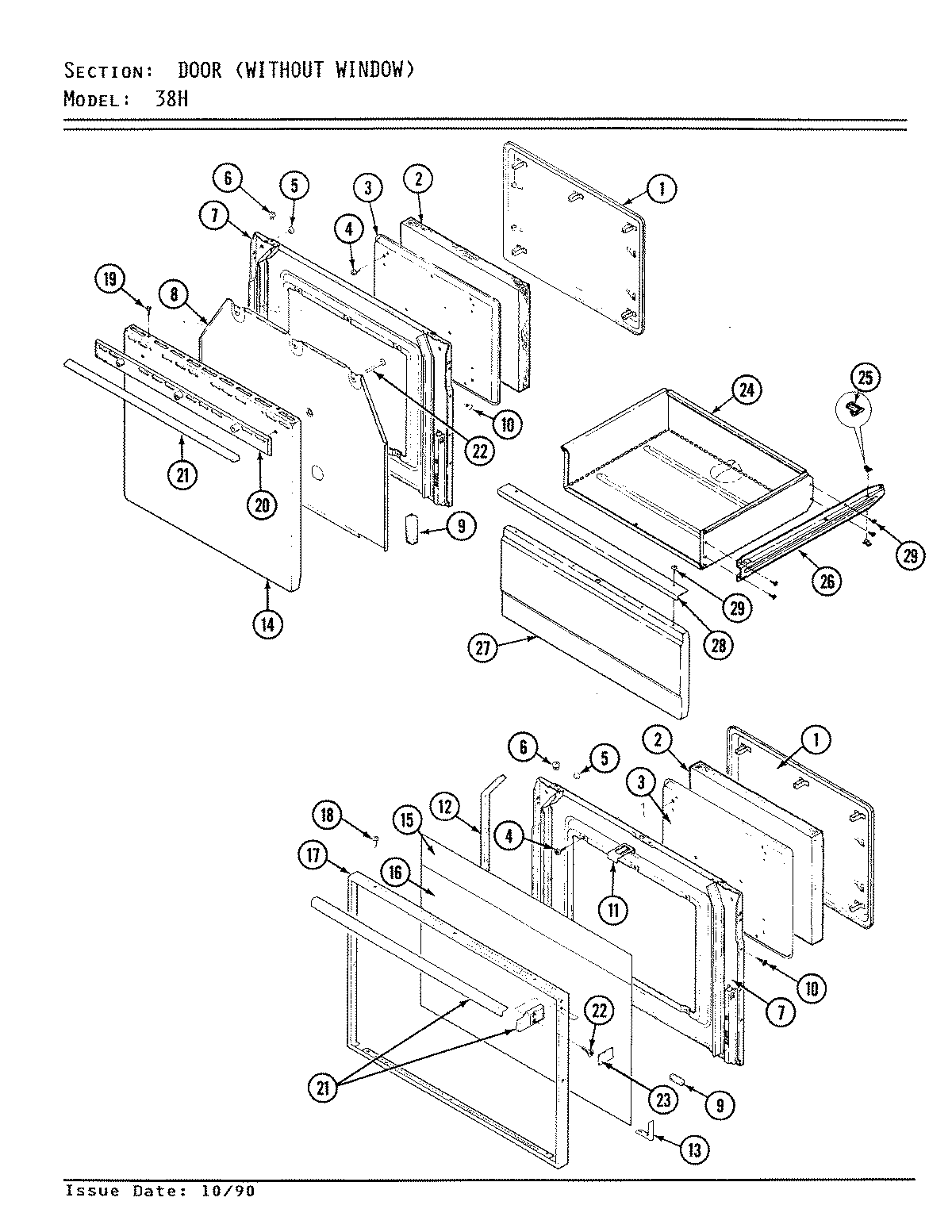

B38HK-5TXW 02 – DOOR/DRAWER

Products

Position	Product
NI	MAY 3405F008-80
NI	MAY 8016P009-60
NI	MAY 3406F026-80
NI	MAY 7902P097-60
NI	MAY 8016P004-60
NI	MAY 3406F020-80
1	MAY 2410W041-15
1	MAY 2410W041-19
2	MAY 5700A091-60
3	MAY 7002P117-60
4	MAY 2410F016-51
5	MAY 7101P061-60
6	MAY 8003P009-60
7	WP7103P114-60 Whirlpool Snap Nut
8	MAY 7107P017-60
9	CLIP, DOOR
10	MAY 2402W173-15
10	MAY 2402W173-19
11	MAY 7208P011-60
12	MAY 7208P002-60
14	MAY 7902P276-60
15	MAY 8270P078-60
16	MAY 8010P045-60
18	MAY 7706P243-60
20	WP7101P126-60 Whirlpool Screw
21	MAY 7101P123-60
22	MAY 7728P068-60
27	MAY 5715A003-70K
28	MAY 7701P047-60
29	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
