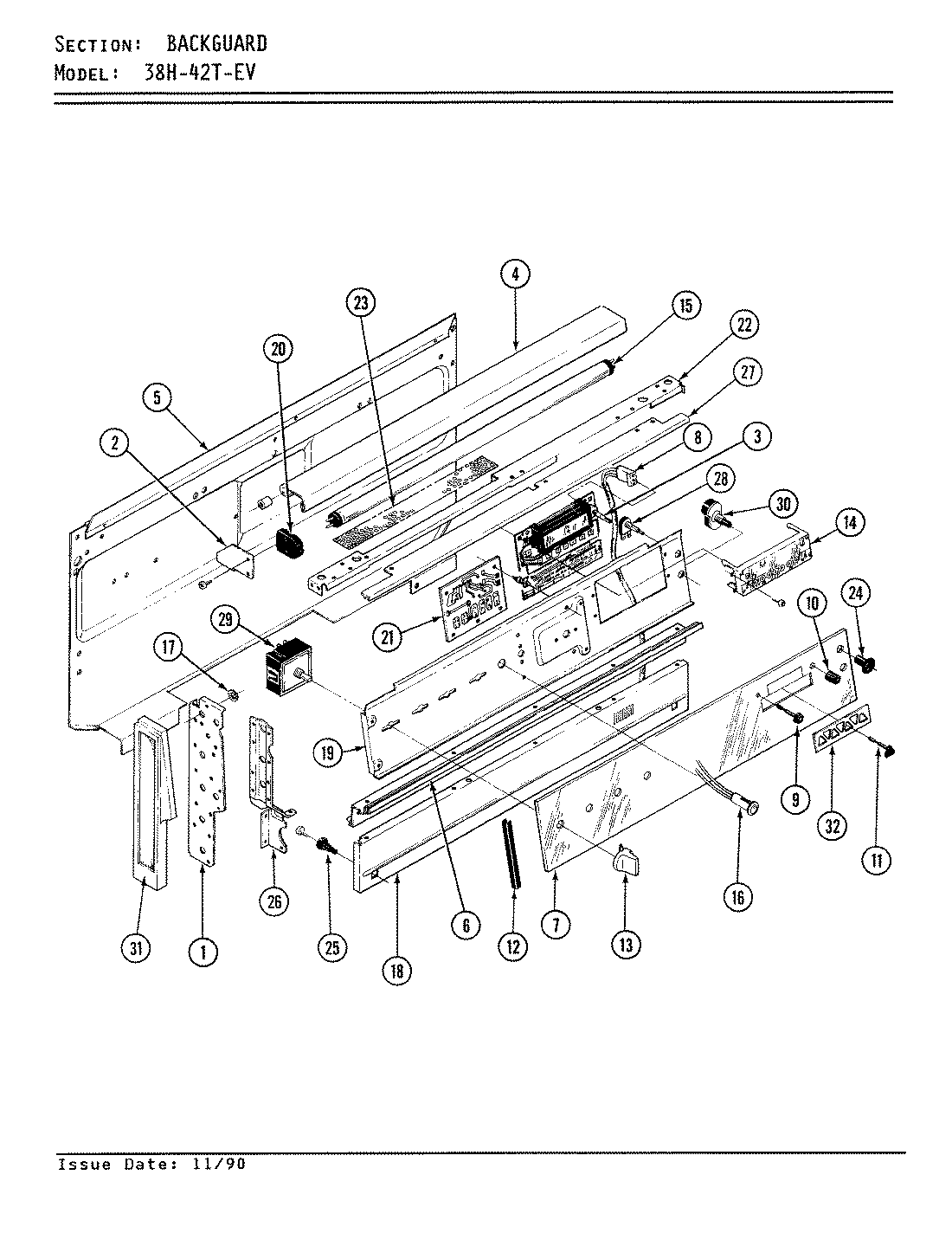

B38HN-42TVW-EV 02 – CONTROL PANEL

Products

Position	Product
1	MAY 3605F006-80
1	MAY 7412P005-60
1	MAY 7101P061-60
1	SCREW
1	MAY 3605F008-80
2	MAY 3801F109-34
2	MAY 3801F002-34
2	MAY 3801F006-51
3	MAY 7601P180-60
3	MAY 7601P121-60
4	MAY 7728P061-60
4	MAY 7724P045-60
5	MAY 4005F295-51
5	MAY 4005F296-51
5	MAY 4005S305-80
5	MAY 4005S371-80
5	MAY 4005F191-23
6	MAY 7706P019-60
6	MAY 7101P074-60
7	MAY 7910P143-60
8	MAY 5170P065-60
8	MAY 5170P088-60
8	MAY 5170P068-60
9	MAY 7711P453-60
9	MAY 7711P420-60
10	MAY 7711P432-60
11	MAY 7711P450-60
12	MAY 7720P017-60
13	MAY 7737P011-60
14	MAY 7730P005-60
15	MAY 7407P004-60
16	MAY 7407P060-60
17	WP4159193 Whirlpool Screw
18	MAY 2620F043-81
19	MAY 3605F152-80
19	MAY 3605F171-80
20	MAY 7408P005-60
20	WP59002061 Whirlpool Microwave Screw
21	MAY 8004P020-60
21	MAY 7428P007-60
21	MAY 7212P032-60
21	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
21	MAY 7430P008-60
22	MAY 3807F215-80
22	MAY 3807F391-80
23	MAY 3604F079-80
24	MAY 7214P023-60
25	SPACER, HINGE (MAIN TOP)
26	MAY 3807F349-51
26	MAY 7101P064-60
26	MAY 3807F348-51
27	MAY 7706P166-60
28	MAY 7401P019-60
28	MAY 7403P194-60
29	MAY 7101P280-60
29	MAY 7403P266-60
29	MAY 7403P267-60
29	W11122008 Whirlpool Surface Element Switch
30	MAY 7403P196-60
31	MAY 7726P030-60
31	MAY 7726P029-60
32	MAY 7740P025-60
32	MAY 7740P013-60
