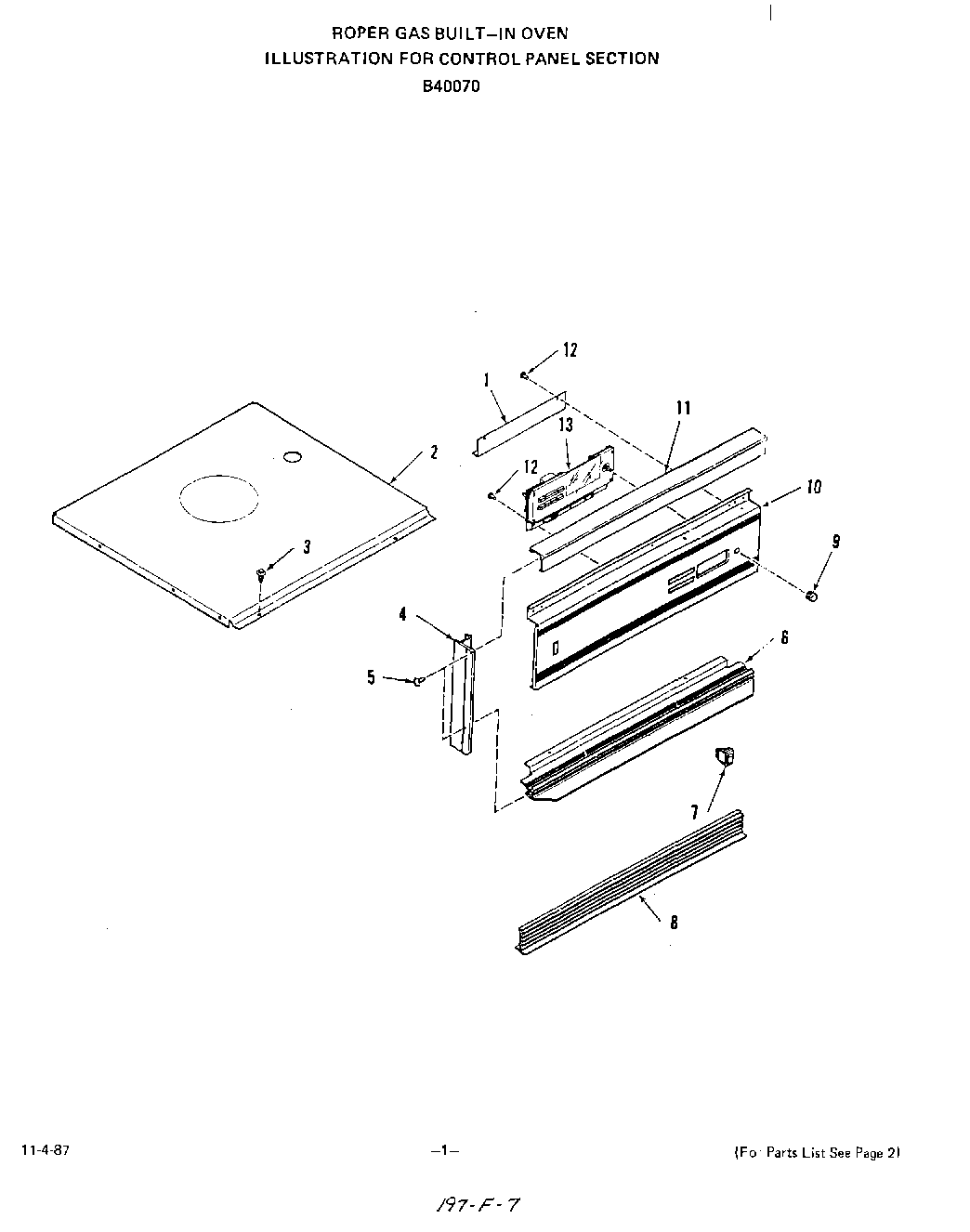

B4007B0 02 – CONTROL PANEL

B4007B0 02 – CONTROL PANEL

Written by

in

B4007B0 02 – CONTROL PANEL

Products

Position	Product
1	Baffle-Control Panel
2	Insulation Retainer
3	Screw 10-32×5/16“
4	Right
4	Left
5	Screw 6-32×1/2“
6	Oven Door Hinge (Right)
7	Switch-Oven Light
8	Trim Vent
9	Knob-Clock
10	Control Panel
11	Lamp Shade
12	Screw 6-32×5/16“
13	W11415783 Whirlpool Seal
