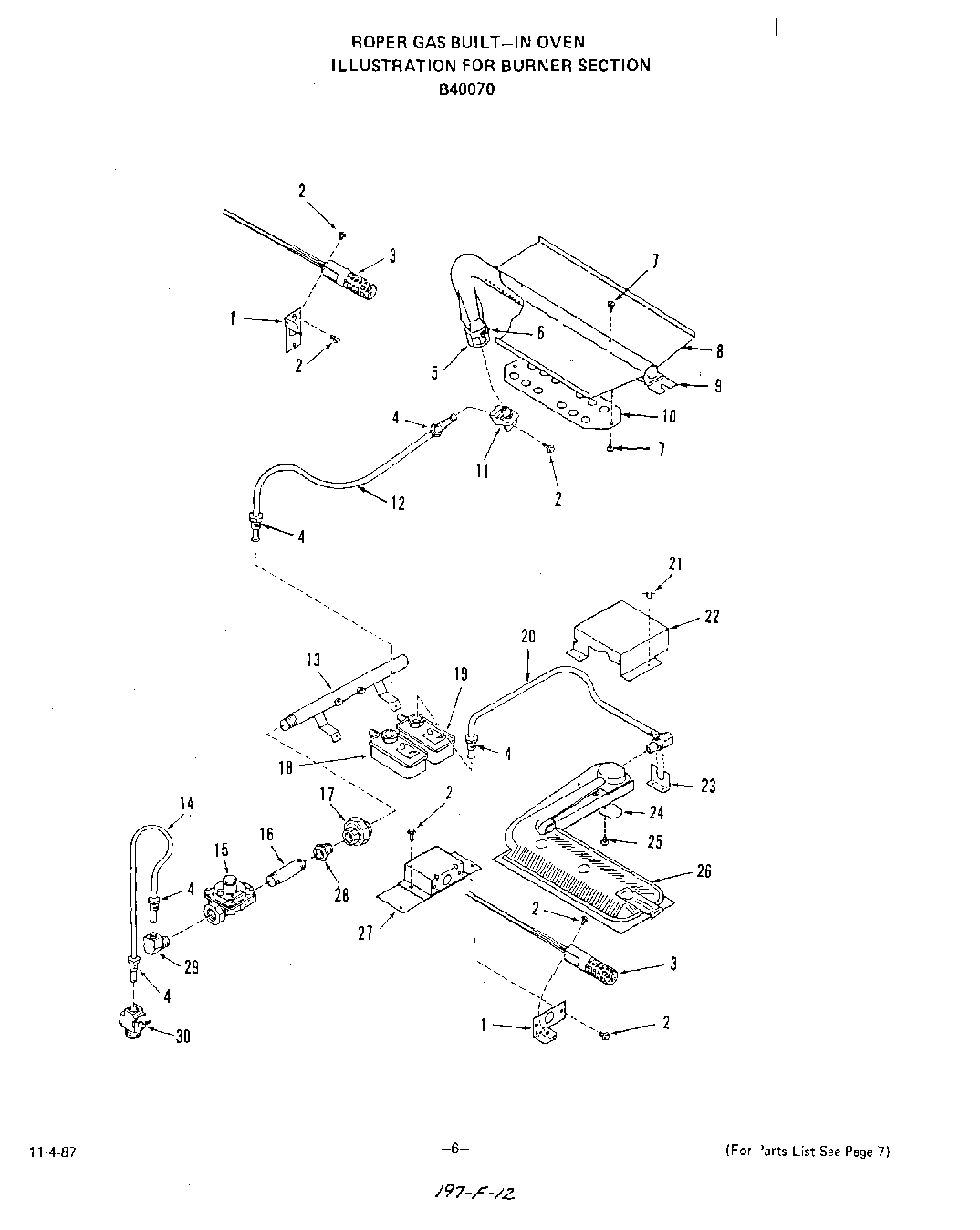

| 1 | Bracket-Igniter |
| 2 | WP112432 Whirlpool Nut Assembly |
| 3 | Igniter-Broiler & Oven Burner |
| 4 | G.M. Inverted Nut 3/8`` |
| 5 | Aid Shutter |
| 6 | Adjustment Screw-Air Shutter |
| 7 | Screw 8 - 32x3/8`` |
| 8 | Upper Baffle - Broil |
| 9 | Broiler Burner (Inc Keys 25 & 27) |
| 10 | Lower Baffle-Broiler Burner |
| 11 | Broiler Orifice Fitting |
| 12 | Tubing 3/8`` (Control Valve to Broiler Orifice) |
| 13 | Manifold Pipe w/Bracket |
| 14 | Tubing3/8``(Inlet Valve To Pressure Regulator) |
| 15 | Pressure Regulator |
| 16 | Nipple 3/8`` x 2`` |
| 17 | Union 1/2``-Std |
| 18 | Control Valve |
| 19 | Control Valve |
| 20 | Tubing 3/8`` (Control Valve to Oven Burner) |
| 21 | Clip |
| 22 | Cover Box-Venturi |
| 23 | Bracket-Orifice Fitting |
| 24 | Air Shutter |
| 25 | Screw 10 - 32 x 1/4`` |
| 26 | Oven Burner (Inc`s. 24, 25) |
| 27 | Support-Igniter Asm (Upr) |
| 28 | Bushing-Reducer |
| 29 | Elbow 90o |
| 30 | Inlet Valve |
