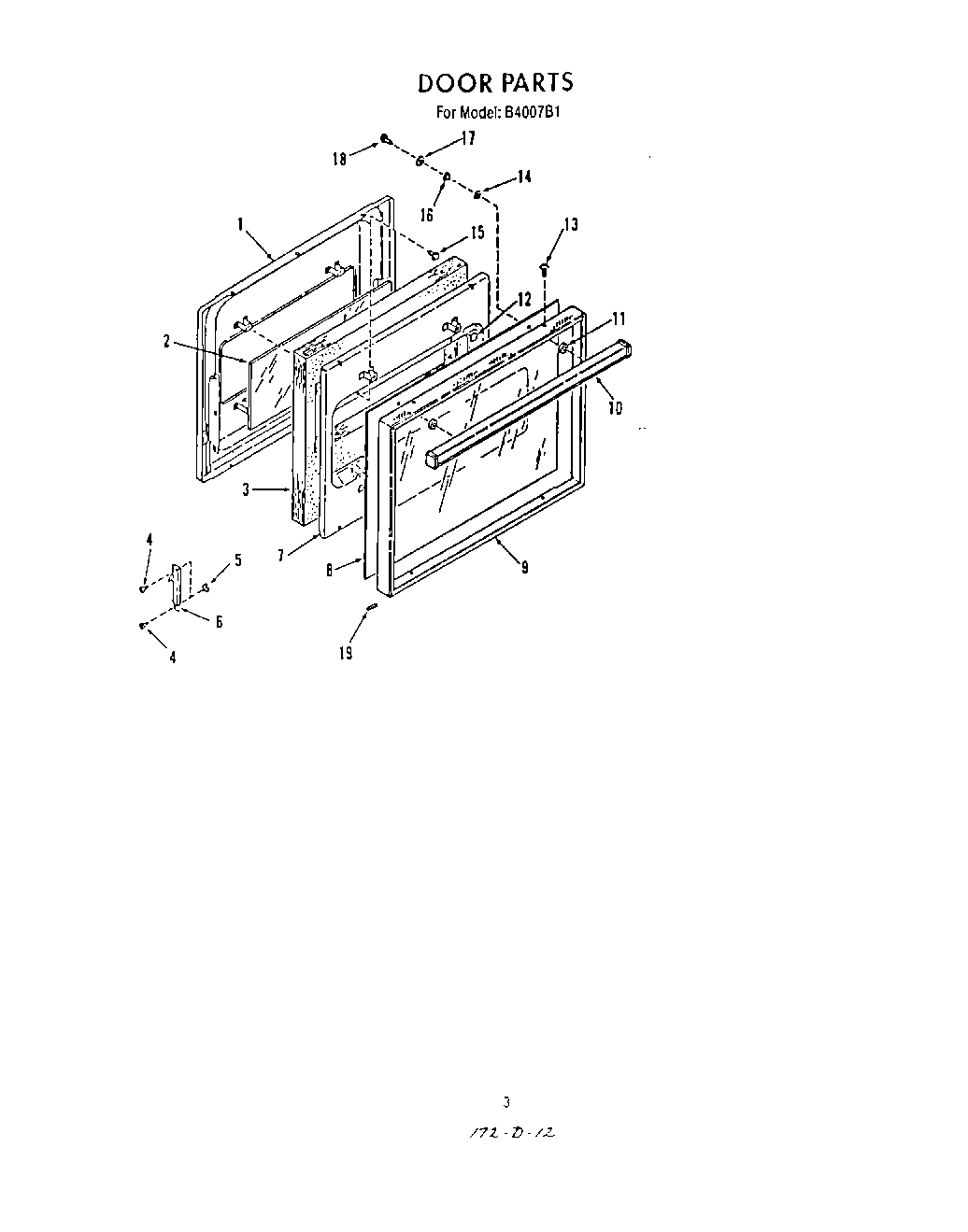

B4007B1 03 – DOOR

Products

Position	Product
1	Door Lining
2	Glass, Inner
3	Insulation
4	Shoulder Bolt (4)
5	Lockwasher
6	Hinge (Left)
6	Hinge (Right)
7	Retainer
8	Outer Door Glass
9	Door Frame
10	Handle
11	Spacer, Dr. Handle
12	Spacer (4)
13	Screw No.6-20×5/16
14	Washer, Fiber
15	Screw, No.10-32×17/32“
16	Spacer, Glass Door
17	Retainer
18	Screw, No.10-32 x 3/4
19	Installation Guide
19	WIRE HARNESS (Manifold)
19	BURNER RECEPTACLE KIT
19	Sensor
19	Cushion
19	Repair Parts List
