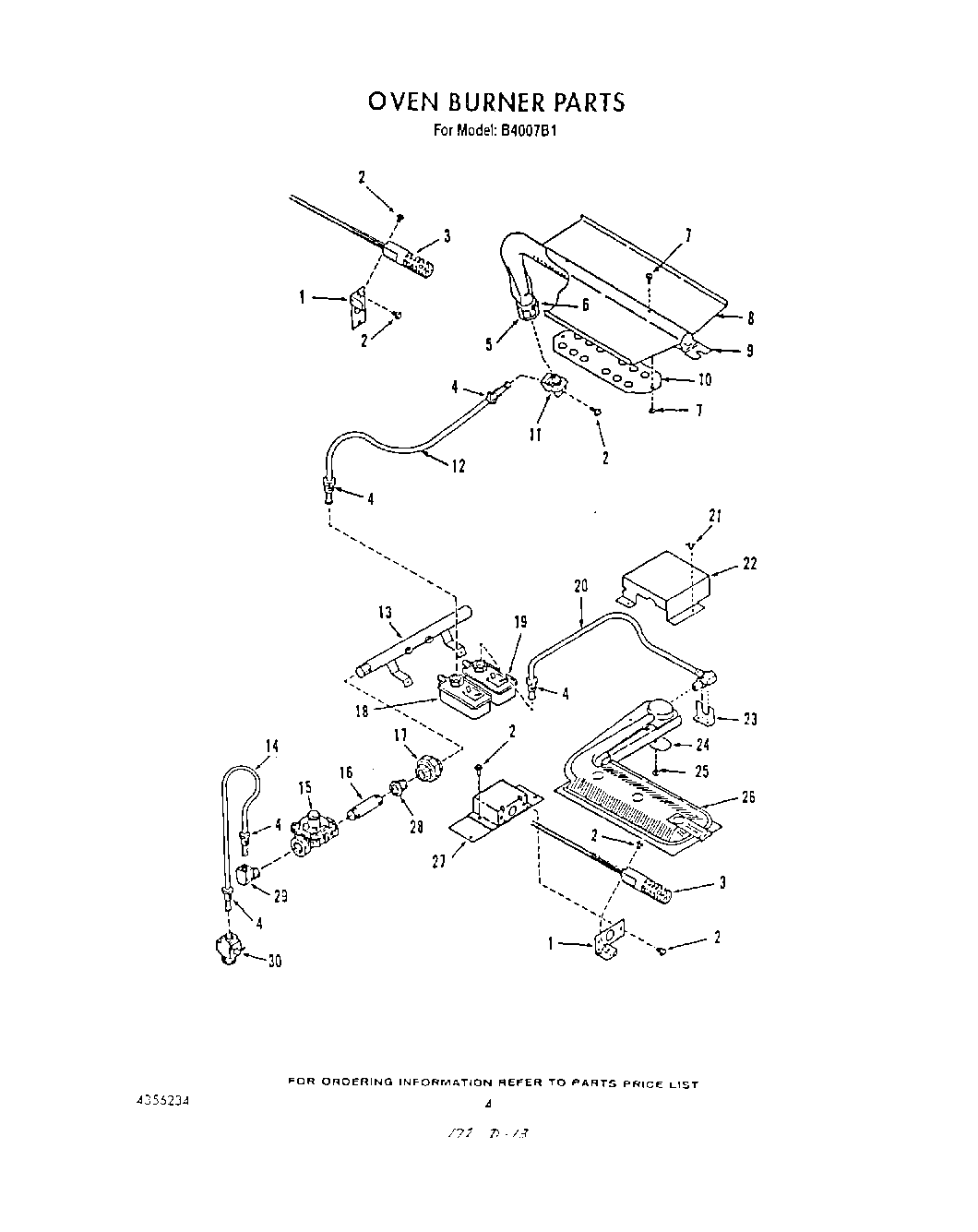

B4007B1 04 – OVEN BURNER

Products

Position	Product
1	Bracket, Igniter
2	W10850756 Whirlpool Screw
3	Ignitor-Bake/Broil
4	Inverted Nut, 3/8
5	Shutter, Air
6	Adjusting Screw, Air Shutter
7	WP489128 Whirlpool Refrigerator Screw
8	Baffle-Oven Burner
9	Broiler Burner, Inc`s 25 & 27
10	Lower Baffle, Broiler Burner
11	Fitting, Broiler Orifice
12	Tubing, 3/8“ (Control Valve to Broiler Orifice)
13	Manifold Pipe, W/ Bracket
14	Tubing, 3/8“ (Shut Off Valve to Regulator)
15	Pressure Regulator
16	Fitting, 3/8 x 2
17	xUnion Fitting 1/2“
18	Control Valve
19	Control Valve
20	3/8 Tubing W/Orifice (Cont. Valve to Lo. Oven
21	Clip
22	Cover, Venturi
23	Bracket, Orifice Fitting
24	Air Shutter
25	Screw No.10-32×1/4
26	Oven Burner Asm., (Inc`s 24,25)
27	Support Assembly, Igniter (Upper)
28	xBushing, Reducer
29	xFitting, 90o Elbow
30	Valve, Inlet
