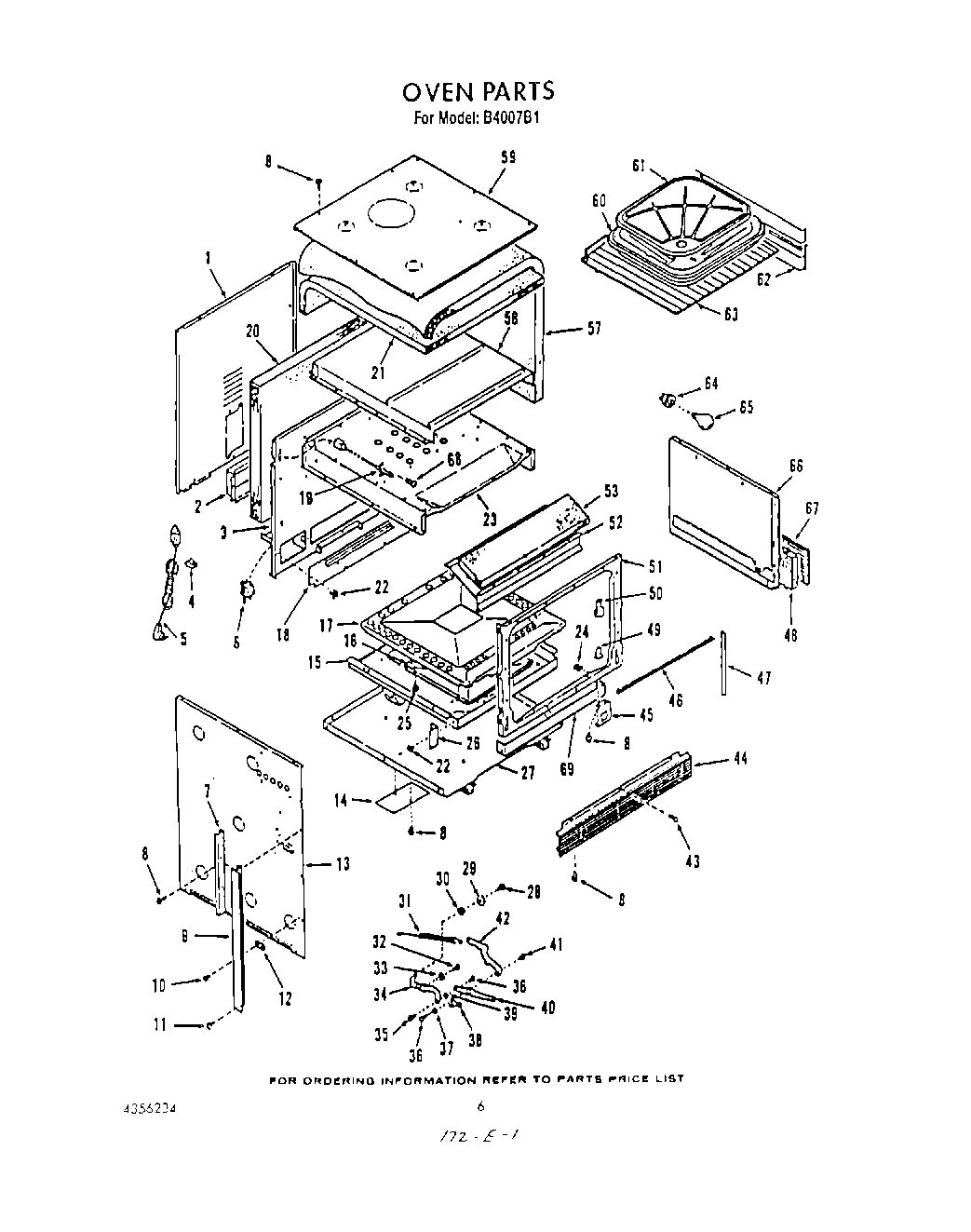

B4007B1 05 – OVEN

Products

Position	Product
1	Rear Cover
2	Cover, Air Chamber
3	Back, Oven
4	Clip
5	Power Service Cord
6	Disconnect
7	Channel Trim Lt/Rt
9	Side Trim, Frame (Right front)
9	Side Trim, Frame (Left front)
10	Rivet
11	Screw 6-20×3/8
12	Spacer, Trim (4)
13	Side Panel (Right)
13	Side Panel (Left)
14	Cover Plate
15	Burner Box
16	Baffle-Oven Bottom
17	Oven Bottom, W/Baffle
18	Cover Plate, Lower Oven
19	Sensor
20	Insulation Oven Back
21	Insulation, Top And Sides (1 Pc)
22	Clip
23	Top, Oven Cabinet
24	Nut, Speed No.10-32
25	W10850756 Whirlpool Screw
26	Shield, Insulation (2)
27	WPL 4338325
28	Screw 1/4-20×3/8
29	Washer
30	Lockwasher
31	Spring (Up/Lower)
32	Rivet, Shoulder
33	Roller
34	Door Hinge (Inc`s 35, 36, & 39) (Left)
34	Door Hinge (Inc`s 35, 36, & 39) (Right)
35	Sleeve
36	Rivet
37	489203 Whirlpool Refrigerator Washer
38	Latch, Hinge (Left)
38	Latch, Hinge (Right)
39	Washer
40	Arm, Oven Door (Inc`s 35, 36 & 39) (Left)
40	Arm, Oven Door (Inc`s 35, 36 & 39) (Right)
41	Pilot Sleeve
42	Link, Spring
43	Screw No.6-20×5/16
44	WPL 4338357
45	WPL 4352035
46	WPL 4338287
47	WPL 4338288
48	Insula
49	WPL 4333868
50	WPL 4335470
51	WPL 4336672
52	WPL 4336664
53	WPL 4350586
57	Insulation, Top And Sides (1 Pc)
58	Vent Box
59	WPL 4337824
61	4396923 Whirlpool Broil Pan Set Gray Porcelain
62	WPL 4325445
62	WPL 4325446
63	WPL 4325447
64	W10856866 Whirlpool Light Socket
65	RANGE ONLY 40W 120V APPL BULB
66	WPL 4336674
66	WPL 4336675
67	WPL 4352036
68	Screw
69	WPL 4338263
