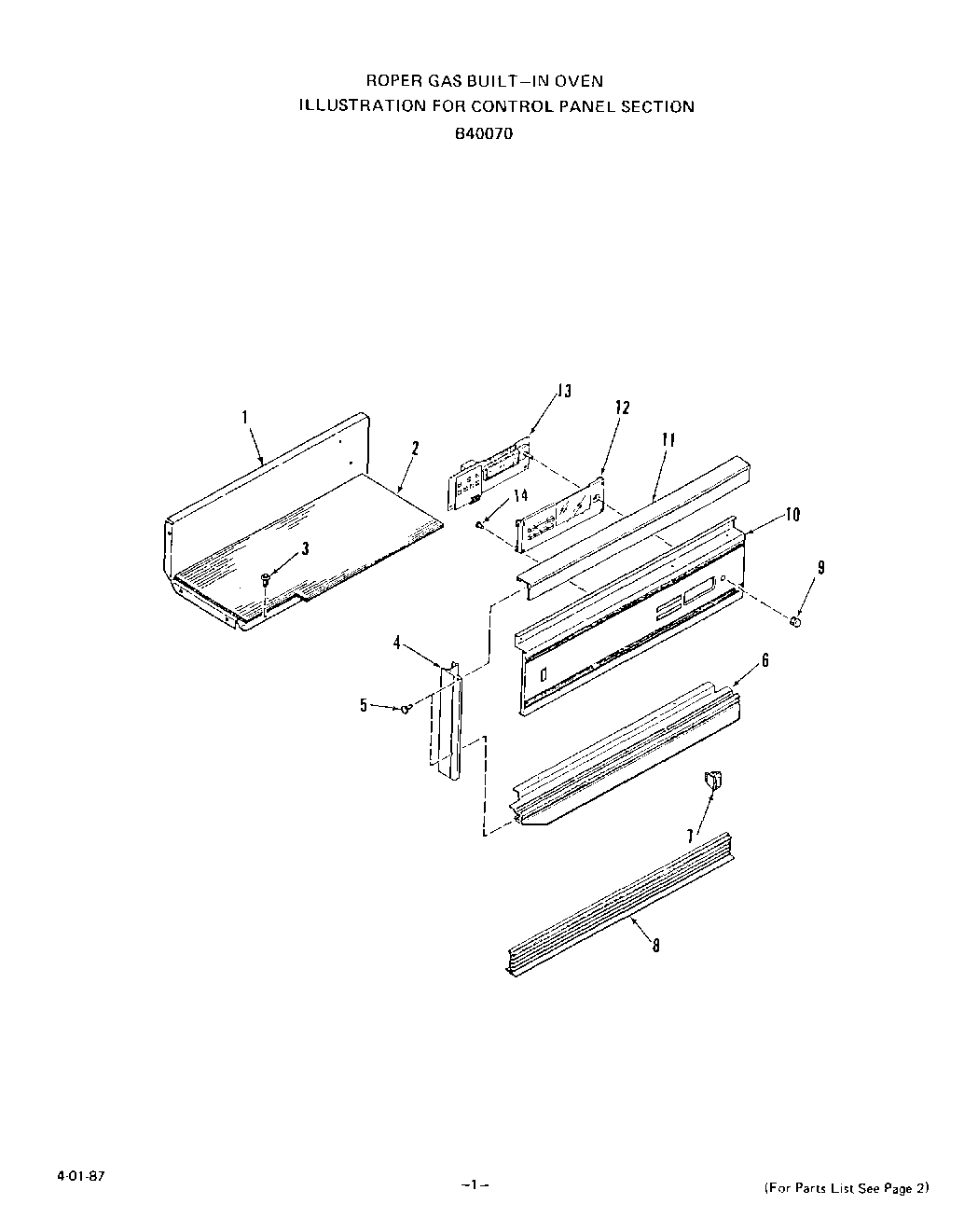

B4007X0 02 – CONTROL PANEL

B4007X0 02 – CONTROL PANEL

Written by

in

B4007X0 02 – CONTROL PANEL

Products

Position	Product
1	Baffle-Control Panel
2	Corrugated INsulation
3	Screw 10-32×5/16“
4	Left
4	Right
5	Screw 6-32×1/2“
6	Oven Door Hinge (Right)
7	Switch-Oven Light
9	Knob-Clock
10	Control Panel
11	Lamp Shade
12	Clock Lens
13	Trim Vent
14	Screw 6-32×5/16“
