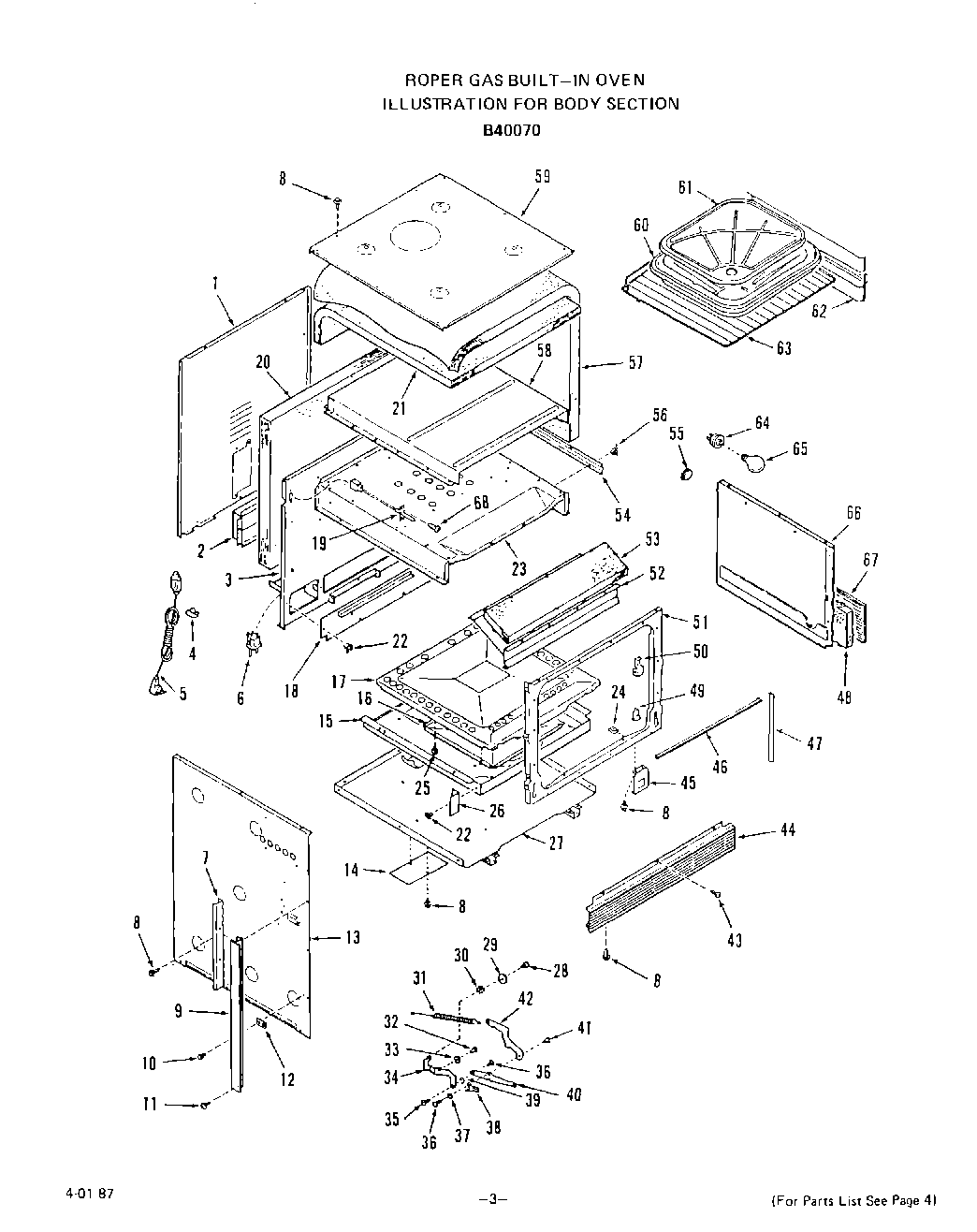

B4007X0 03 – BODY SECTION

Products

Position	Product
1	Wire Cover
2	Air Chamber Cover
3	Oven Back
4	WPL 97047
5	Service Cord
6	Disconnect
7	Channel Trim – Lt. or Rt.
8	WP112432 Whirlpool Nut Assembly
9	Side Trim-Front Frame (Left)
9	Side Trim-Front Frame (Right)
10	WPL 281160
11	Screw 6-20×3/8“
12	Spacer-Side Trim (4 Req)
13	Body Side (Left)
13	Body Side (Right)
14	Cover Plate
15	Burner Box
16	Baffle-Oven Bottom
17	Oven Bottom w/Baffle
18	Cover Plate-Lower Oven
19	WPL 335851
20	Insulation-Oven Back
21	WPL 313321
23	Oven Top
24	Speed Nut 10 – 32
25	Screw 10 – 32 x 7/16“
26	Insulation Shield (2 Req)
27	Main Bottom
28	Bolt 1/4-20×3/8“
29	WPL 323451
30	WPL 69459
31	Oven Door Spring (Up or Lo Oven)
32	Shoulder Rivet
33	Roller
34	Right (Up. or Lo. Oven)
34	Left (Up. or Lo. Oven)
35	Hinge Pivot Sleeve
36	Rivet
37	Washer
38	Hinge Latch (Right)
38	Hinge Latch (Left)
39	Washer
40	Right (Up. or Lo. Oven)
40	Left (Up. or Lo. Oven)
41	Hinge Pivot Sleeve
42	Spring Link
43	Screw 6-32×5/16“
44	WPL 336626
45	279457 Whirlpool Dryer Heating Element Wide Spade Connection
46	Seal-Top & Bottom
47	WPL 315945
48	Insulation (Rt. or Lt.)
49	WPL 323446
50	WPL 327977
51	WPL 331856
52	WPL 289836
53	WPL 97324
54	WPL 294506
55	Plug Button
56	Clip
57	Insulation-Oven
58	WPL 313320
59	WPL 336593
60	WPL 331592
61	WPL 326297
62	WPL 279538
62	WPL 279537
63	WPL 279539
64	Holder-Oven Light Bulb
65	Oven Lamp Bulb
66	WPL 331858
66	WPL 331859
67	Insulation (Lt. or Rt.)
68	Screw
