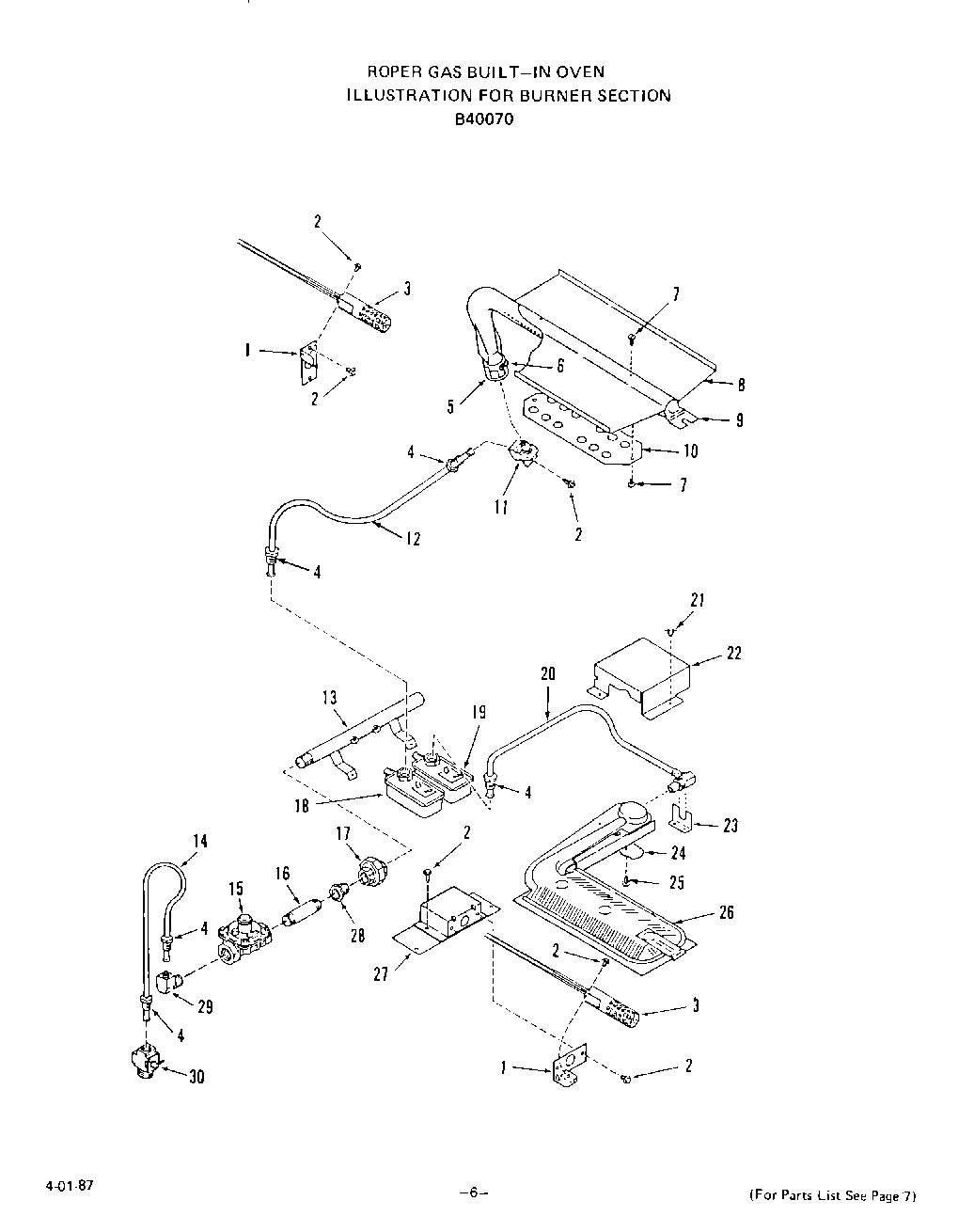

B4007X0 05 – BURNER SECTION

Products

Position	Product
1	Bracket-Igniter
2	WP112432 Whirlpool Nut Assembly
3	Igniter-Broiler & Oven Burner
4	G.M. Inverted Nut 3/8“
6	Adjustment Screw-Air Shutter
7	Screw 8 – 32×3/8“
8	Upper Baffle – Broil
9	Broiler Burner (Inc Keys 25 & 27)
10	Lower Baffle-Broiler Burner
11	Broiler Orifice Fitting
12	Tubing 3/8“ (Control Valve to Broiler Orifice)
13	Manifold Pipe w/Bracket
14	Tubing3/8“(Inlet Valve To Pressure Regulator)
15	Pressure Regulator
16	Nipple 3/8“ x 2“
17	Union 1/2“-Std
18	Control Valve
19	Control Valve
20	Tubing 3/8“ (Control Valve to Oven Burner)
21	Clip
22	Cover Box-Venturi
23	Bracket-Orifice Fitting
24	Air Shutter
25	Screw 10 – 32 x 1/4“
26	Oven Burner (Inc`s. 24, 25)
27	Support-Igniter Asm (Upr)
28	Bushing-Reducer
29	Elbow 90o
30	Inlet Valve
