B4157X0 04 – BODY SECTION

B4157X0 04 – BODY SECTION

Written by

in

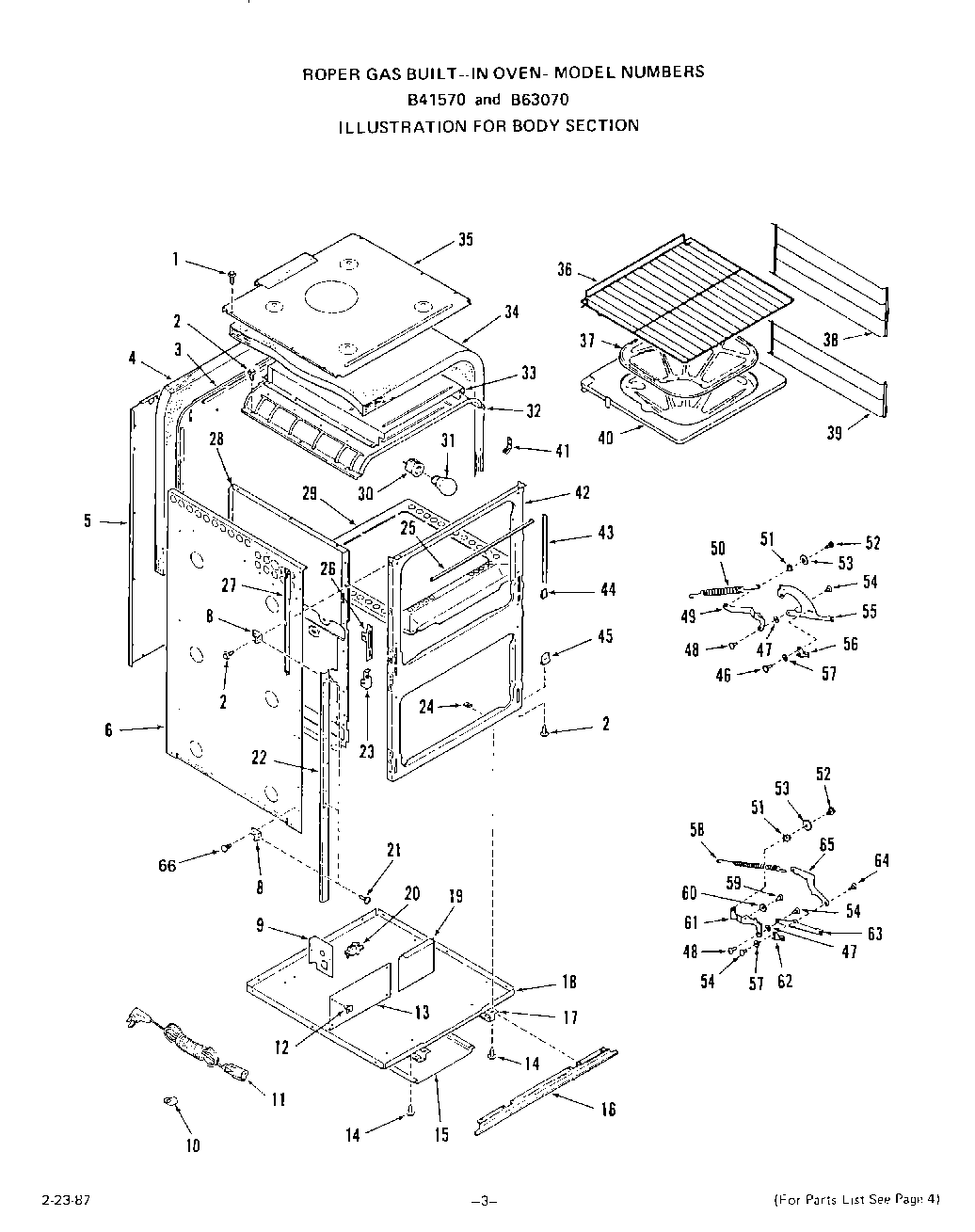

B4157X0 04 – BODY SECTION

Products

Position	Product
2	Screw 10 – 32 x 17/32“
3	Oven Back (Model B41570)
3	Oven Back (Model B63070)
4	Insulation-Oven Back
5	Wire Cover-Oven Back
6	Body Side (Right)
6	Body Side (Left)
8	Spacer-Side Trim (4 Req)
9	Disconnect Plate
10	Clip
11	Service Cord
12	Clip
13	Left Cover Plate
14	WP112432 Whirlpool Nut Assembly
15	Baffle-Main Bottom
16	Lower Trim
17	Bottom Channel-Lt. or Rt.
18	Main Bottom
19	Right Cover Plate
20	Disconnect
21	Screw 10-16×7/16“
22	Side Trim-Front Frame (Left)
22	Side Trim-Front Frame (Right)
23	WPL 327977
24	Speed Nut 10 – 32
25	WPL 338209
26	Support-Oven Door Hinge (Right)
26	Support-Oven Door Hinge (Left)
27	Channel Trim w/Angle (Left)
27	Channel Trim w/Angle (Right)
28	Oven Side (Left (Model B63070))
28	Oven Side (Right (Model B63070))
28	Oven Side (Left (Model B41570))
28	Oven Side (Right (Model B41570))
29	Oven Bottom w/Baffle (Model B41570)
29	Oven Bottom w/Baffle (Model B63070)
30	Holder-Oven Light Bulb
31	Oven Lamp Bulb
32	Oven Top (Model B41570)
32	Oven Top (Model B63070)
33	Vent Box
34	Insulation-Oven Top & Sides (1 Piece)
35	Oven Cabinet Top
36	WPL 279539
37	WPL 331851
38	Oven Rac
39	WPL 232899
39	WPL 232900
40	WPL 332306
41	Clip-Thermotat Bulb (2 Req)
42	WPL 332300
43	WPL 338210
44	WPL 111481
44	WPL 111480
45	WPL 323446
46	WPL 103314
47	Washer
48	Hinge Pivot Sleeve
49	WPL 324048
49	WPL 324047
50	WPL 105825
51	WPL 69459
52	Bolt 1/4-20×3/8“
53	WPL 323451
54	Rivet
55	WPL 230981
55	WPL 230980
56	WPL 97697
56	WPL 97696
57	Washer
58	Element, 2.0 KW EGO 7“
59	Shoulder Rivet
60	Roller
61	Left (Up. or Lo. Oven)
61	Right (Up. or Lo. Oven)
62	Hinge Latch (Left)
62	Hinge Latch (Right)
63	Left (Up. or Lo. Oven)
63	Right (Up. or Lo. Oven)
64	Hinge Pivot Sleeve
65	Spring Link
66	WPL 281160
