B445710 02 – BURNER

Products

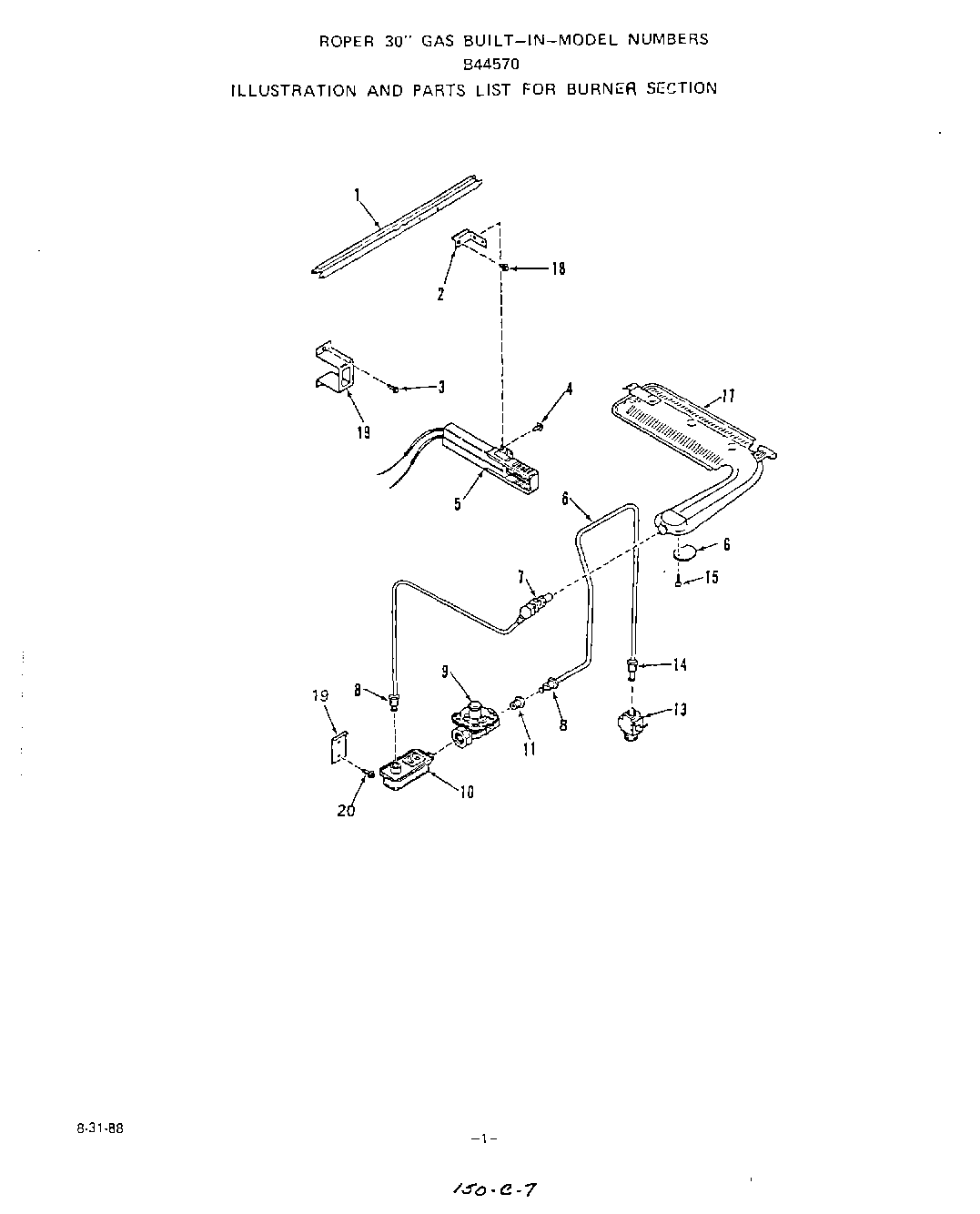

Position	Product
1	Oven Burner Support
2	Igniter Bracket
3	Screw 10-16×7/16“
4	Screw 8 – 32×3/8“
5	Igniter
6	Tubing
7	Orfice Tubing w/Nut
9	Pressure Regulator
10	Control Valve
11	Connector
12	Bracket-Control Valve
13	Inlet Valve
14	Inverted Nut 3/8“
16	Air Shutter
17	Oven Burner
18	Screw 10 – 32 x 1/4“
19	Igniter Support Bracket
20	WP112432 Whirlpool Nut Assembly
