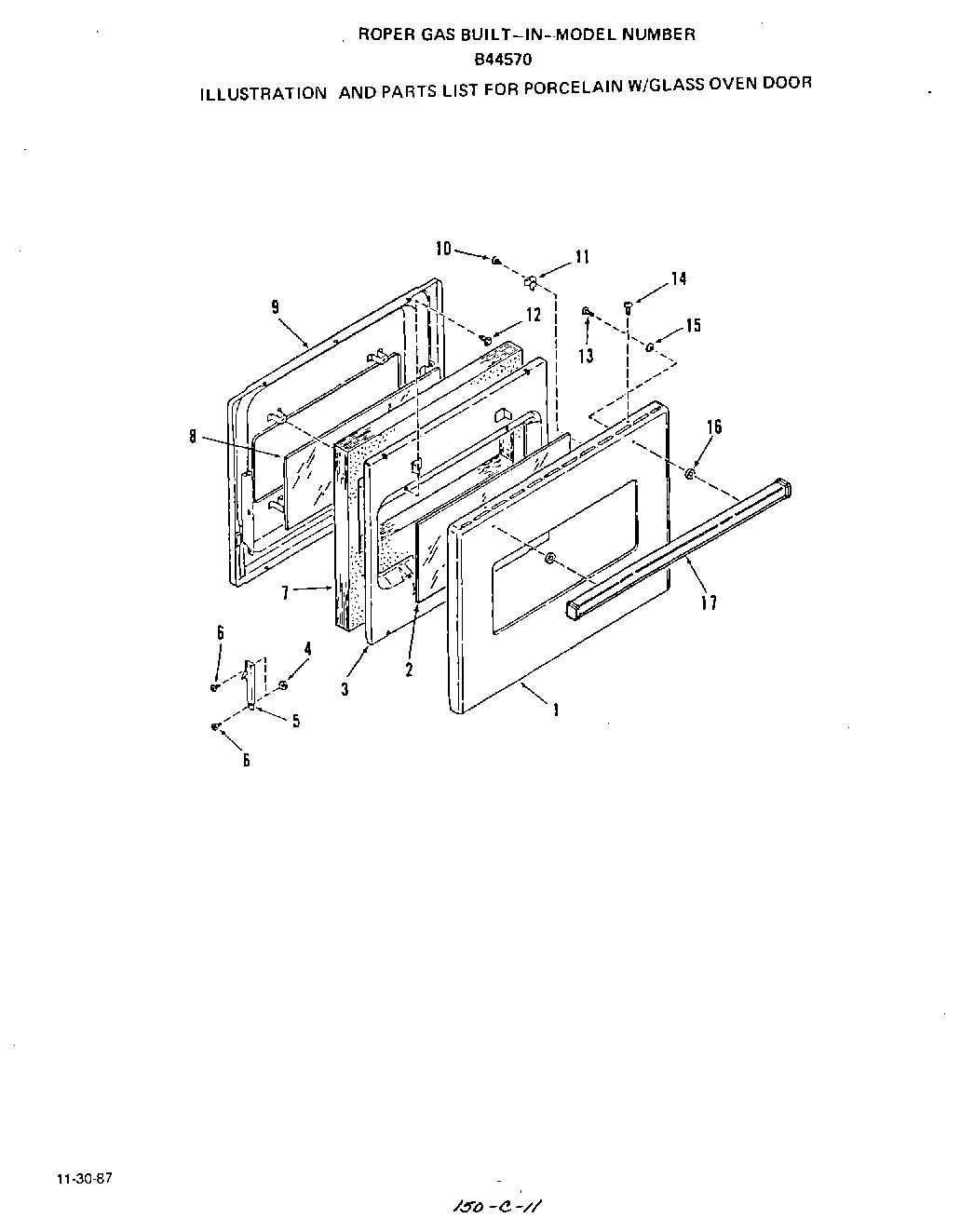

B445710 05 – PORCELAIN W/GLASS OVEN DOOR

Products

Position	Product
1	(Front Panel-Broiler Door w/Glass) (White)
1	Front Panel-Broiler Door w/Glass
1	Front Panel-Oven Door w/Glass
1	(Front Panel-Broiler Door w/Glass) (Almond)
1	(Front Panel-Broiler Door w/Glass) (Wheat)
1	Front Panel-Oven Door w/Glass (White)
1	Front Panel-Oven Door w/Glass (Almond)
1	Front Panel-Oven Door w/Glass (Wheat)
2	Door Glass-Outer (Oven & Broiler)
3	Insulation Retainer (Oven Door w/Glass)
3	Insulation Retainer (Broiler Door w/Glass)
3	Insulation Retainer
4	Hex Nut 10-32
5	Hinge Arm Guide
5	Hinge Arm Guide (Left)
5	Hinge Arm Guide (Right)
6	Shoulder Rivet
7	Insulation
7	Insulation Oven Door (Lower)
7	Insulation - Upper or Lower Door
8	Door Glass-Inner
8	Inner Glass
9	Door Lining (Lower)
9	Door Lining - Upper or Lower Door
9	Door Lining
10	Screw 10-32x3/8``
11	Retainer-Door Glass (2 Req)
12	WP112432 Whirlpool Nut Assembly
13	Screw 10-32x3/4``
14	Screw
15	Lockwasher
16	Spacer
17	Door Handle
